CRANKCASE
5-57
crankcase during its assembling.
●

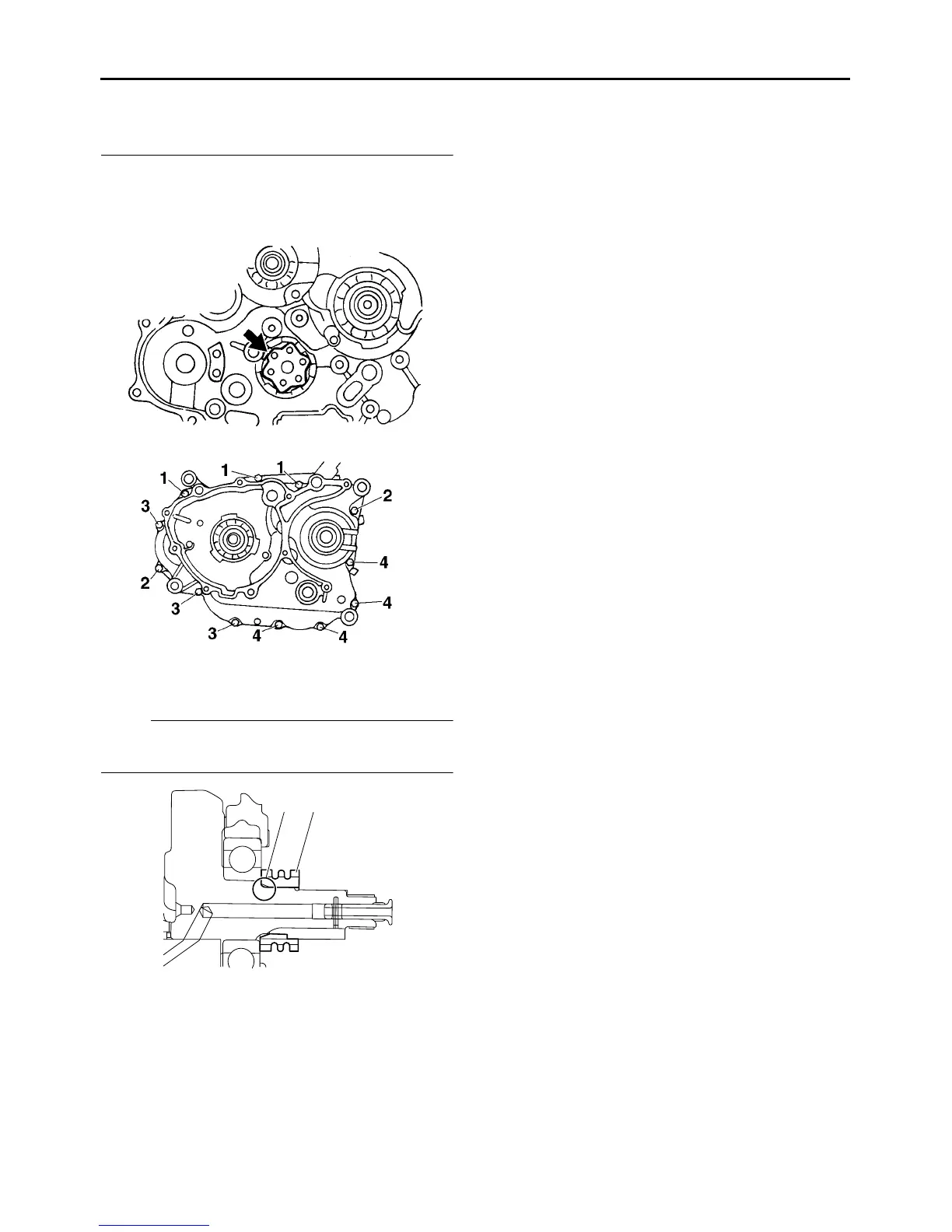

Tighten the bolts diagonally in two (2) stages,
with 1/4 turn each.
● M6 × 70 mm bolt (with gasket)“1”
● M6 × 60 mm bolt “2”
● M6 × 55 mm bolt “3”
● M6 × 45 mm bolt “4”
4. Install:
●
Crankshaft sprocket “1”
NOTE:
Assemble the crankshaft sprocket by facing its
chamfered side “a” toward the crankcase.
a
1
