Replace safety
cartridge

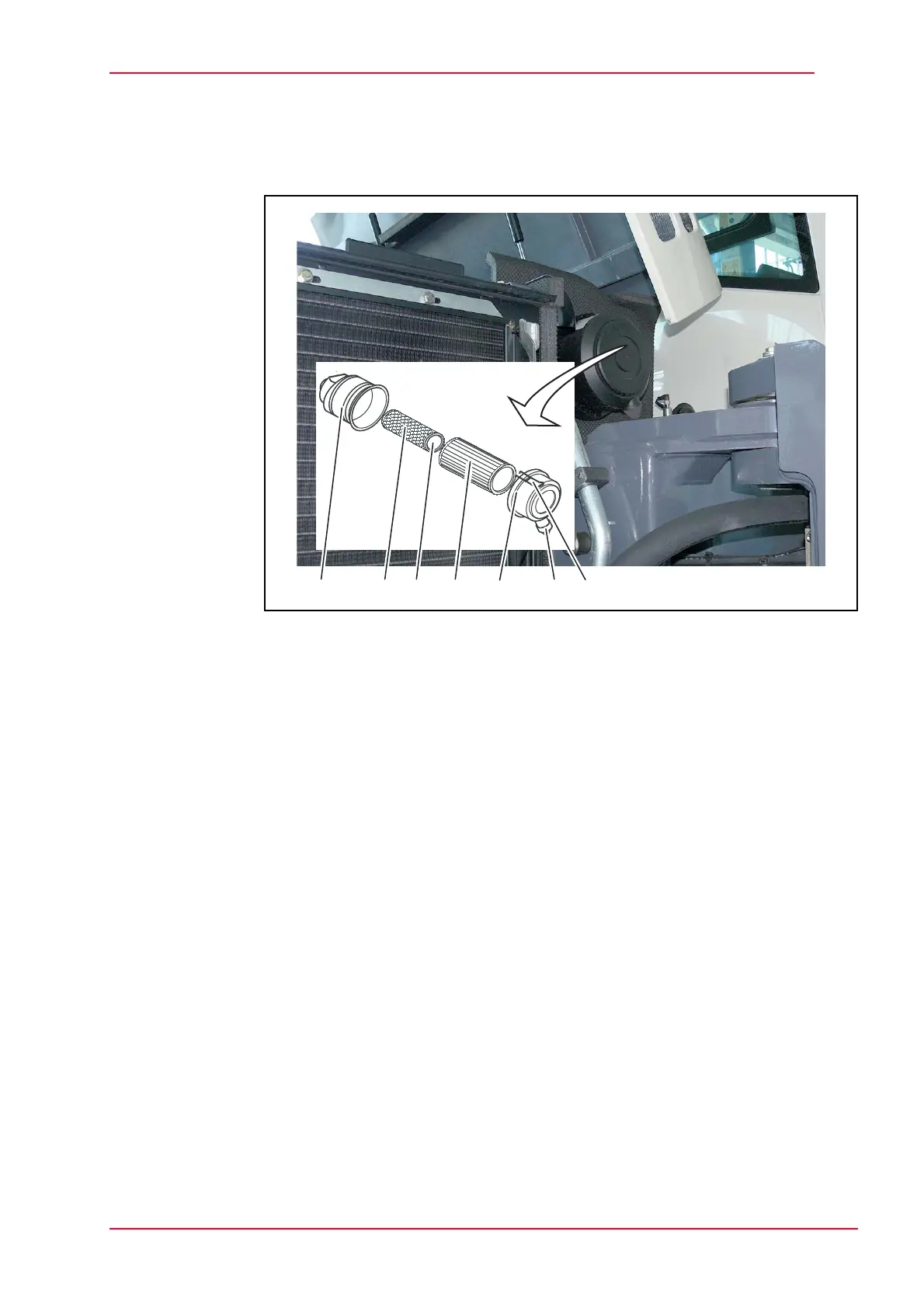

Fig. 6-12 Changing the safety cartridge
1 Filter housing
2 Safety cartridge
3 Nut
4 Air filter cartridge
5 Cover
6 Dust ejection valve
7 Retaining bracket
Remove the main filter cartridge. See chapter “Changing the main cartridge”.
Undo the nut (3).
Carefully turn, tilt, and pull the safety cartridge (2) out and dispose of it in an
environmentally friendly way.
Clean the filter body (1) with a damp cloth, especially the seal area for the
cartridges.
Turn the new safety cartridge slightly and insert it into the filter body.
Insert the main cartridge into the filter body.
Fit the cover with the dust ejection valve pointing down (pay attention to the
position of the dust ejection valve) and fasten it using the retaining clips.
1 2 65
4
7
3
