5.2.5 Fuse and relay box

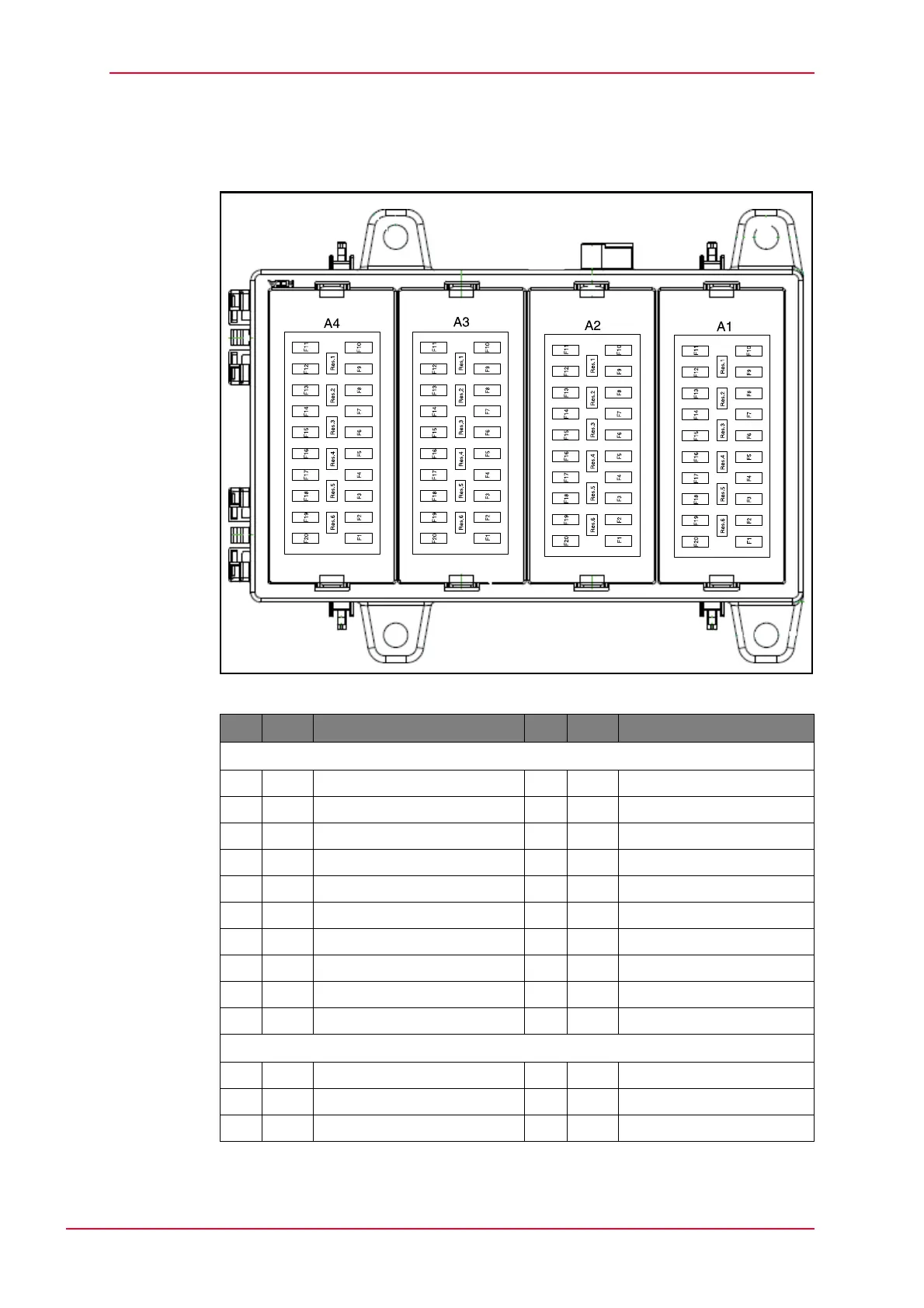

Fig. 5-7 Fuse box
Loc.
Amps
Assigned to Pos.
Amps
Assigned to
Fuse block A1 (terminal 30)
F1 10 A Start switch F11 15 A Rear working floodlight
F2 5 A Immobilizer F12 15 A Working floodlight boom
F3 20 A Fuel pump engine F13 10 A Socket
F4 10 A Display F14 5 A Interior light, radio
F5 5 A Power supply SPU F15 15 A Heating control
F6 10 A Hazard warning lights F16 20 A Heater fan
F7 20 A Low beam light high beam light F17 5 A Supplementary heating timer
F8 15 A High beam F18 20 A Supplementary heating
F9 15 A Rotating beacons F19 15 A Telematic system
F10 15 A Front working floodlight F20 5 A Spare
Fuse block A2 (terminal 15)
F1 5 A Fuel pump relay F11 10 A Power supply SPU
F2 5 A Immobilizer F12 10 A Power supply SPU
F3 5 A Power supply diagnostic plug F13 10 A Power supply SPU
