Yanmar B95W - Hydraulic System

B95W
Description
05_Beschreibung_en.fm - V1.0 - 1.8.17
57 / 306
5
11
5.2.3 Hydraulic system

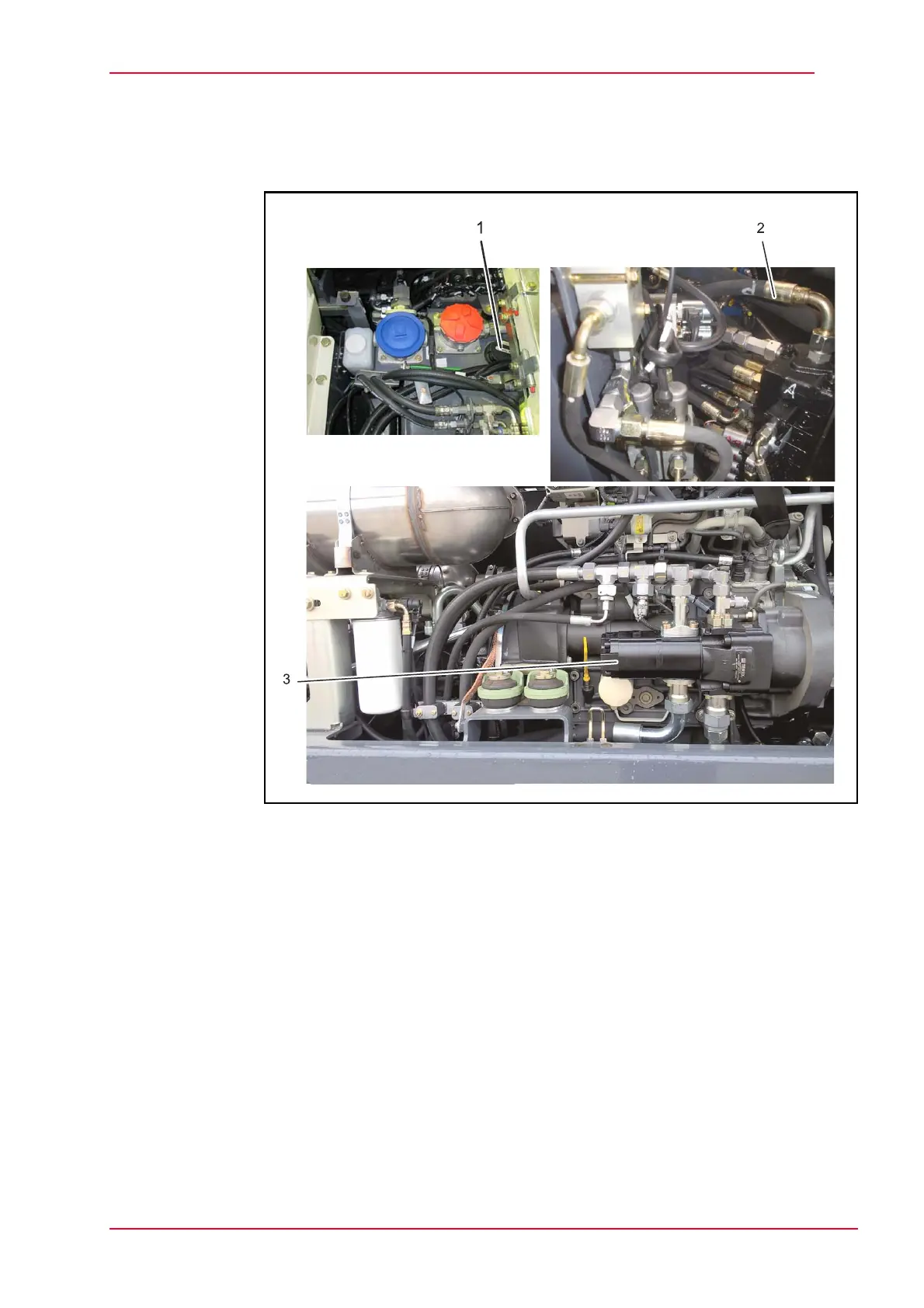

Fig. 5-5 Hydraulic system
1 Hydraulic fluid tank
2 Distribution
3 Pump auxiliary drive
The following are driven hydraulically:
• Drive transmission
• Boom movement
• Bucket movement
•Brakes
• Uppercarriage
• Dozer blade
