Towing lugs For towing the machine the following towing lugs are available.

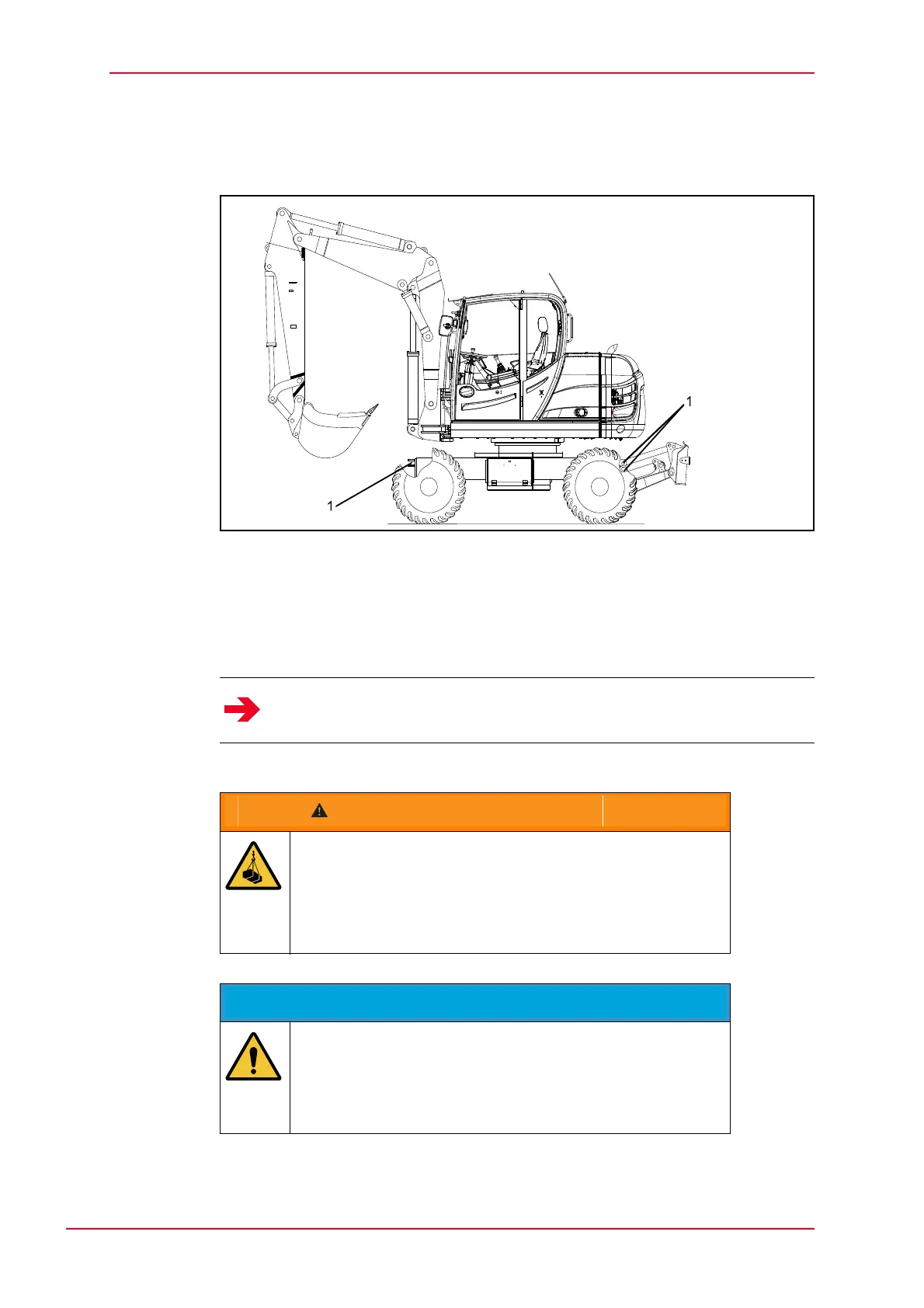

Fig. 8-1 Lifting points
1 Lifting points
The fastening points (1) are located at the front by the towing lug and at the
rear on the eyes right and left on the undercarriage.
8.1.1 Preparation for recovery
Notice
Max. load of towing lugs approx. 9500 kg.
Danger due to heavy load
The machine may move unexpectedly.
Risk of serious injury with fatal consequences.
Z Use wedges to prevent the machine from rolling.
Z Release the pressure in the hydraulic system.
Risk of getting dirty
The hydraulic system is very sensitive and can be damaged
by dirt.
Z Ensure cleanliness when working on the hydraulic system.
Z Clean around the component areas.
