B95W
Maintenance
06_Wartung und Pflege_en.fm - V1.0 - 1.8.17
183 / 306
6
20
6.7.16 Brakes
Front axle, rear axle B95W AL

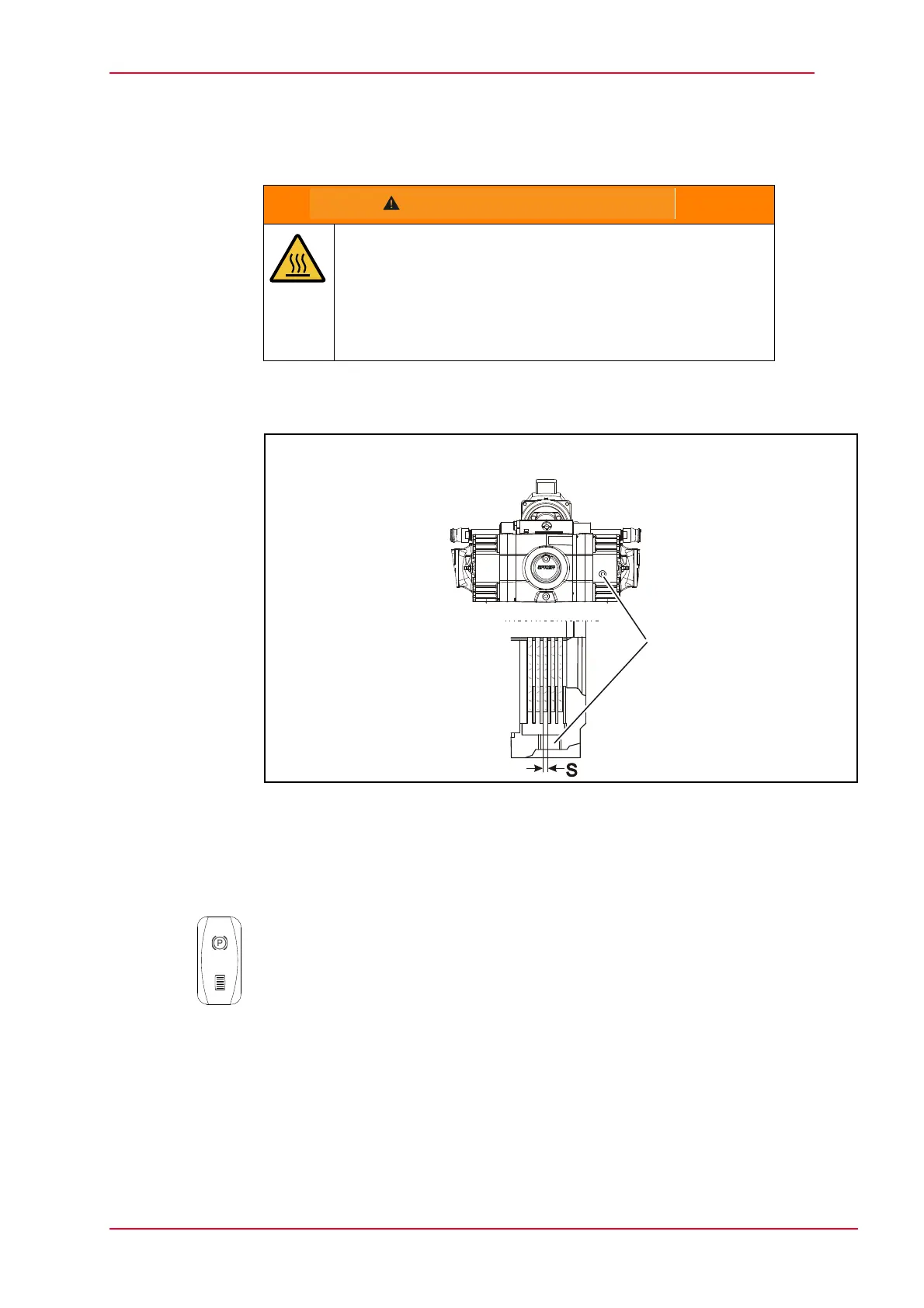

Fig. 6-34 Brake discs
1 Inspection hole
2 Park Brake
A = front axle, rear axle B95W AL
Checking function of brake disc play
Apply the parking brake.
Remove the inspection screws (1).
Check the wear of the brake discs using a measuring gauge.
J Minimum strength S = 4.5 mm.
Rear axle (except B95W AL)
The brake disks of the disk brakes in the wheel hubs cannot be inspected.
Danger due to heavy load
The machine may move unexpectedly. Risk of serious
injuries with fatal consequences.
Z Before starting the engine, take care to ensure that no one
is in the immediate vicinity of the machine or in the danger
zone.
1
A
