5.3.2 Control panel

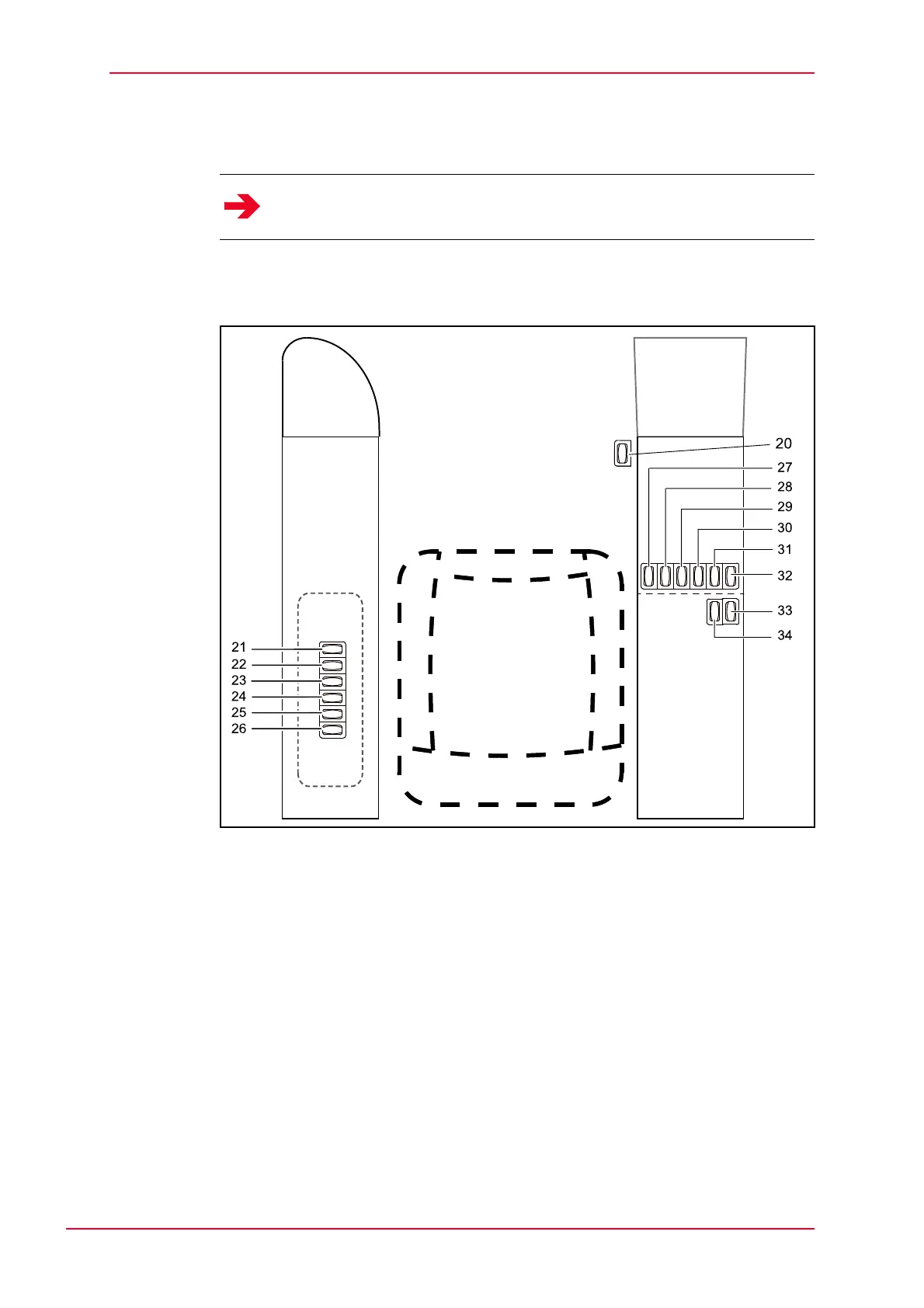

Fig. 5-12 Operator control panel
20 Engine bypass switch
21 Spare
22 Spare
23 Switch rear fog light (optional)
24 Rear fog-lamp switch (option)
25 Switch intermediate lubrication (optional)
26 Switch quick-attachment system (optional)
27 Switch hazard warning lights
28 Switch steering direction reversal (optional)
29 Switch manual transmission setting I + II (optional)
30 Switch axle lock
31 Switch travel pedal (optional)
32 Parking brake switch
33 Switch power tilt (optional)
34 Switch plate float position (optional)
Notice
The left arm rest also serves as the left control console and as exit barrier.
