6.7.18 Swing connection

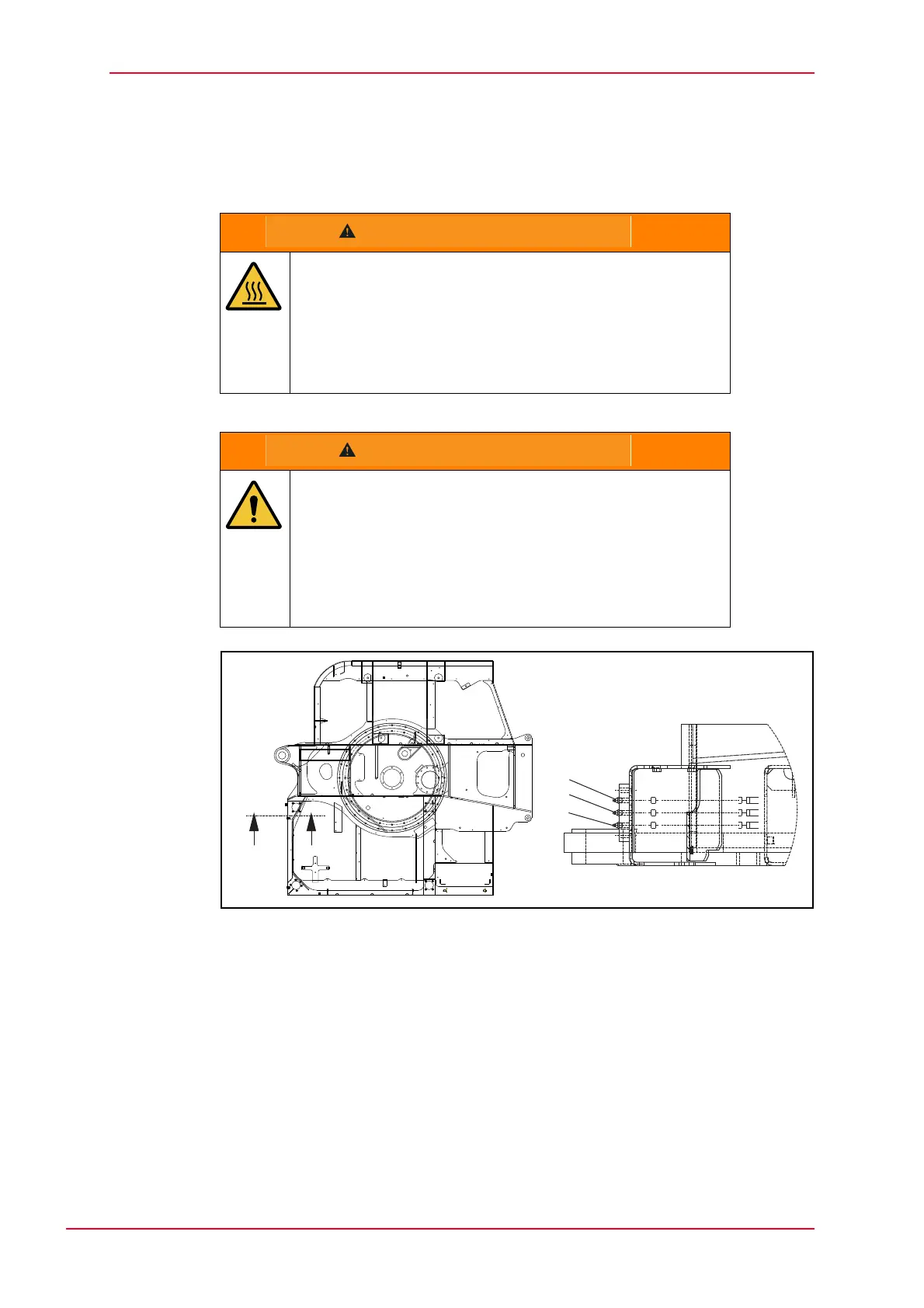

Fig. 6-37 Swing connection
1 Grease nipple, articulated cylinder, upper carriage
2 Grease nipple, bearing races
3 Grease nipple, toothing
X = plan view
Y = cut A-A
Danger posed by hot oil and machine parts
Risk of burns.
Z Cover hot surfaces.
Z Avoid skin contact with oil, grease, and machine parts.
Z Wear personal protective equipment.
Z In the event of injuries, seek medical attention.
Danger posed by rotating gear ring
There is a risk of limbs getting crushed. Risk of serious
injury.
Z Only lubricate the gear ring once it has come to a complete
stop.
Z Operating and maintenance staff must keep an eye on each
other.
Y
X
1
2
3
