B95W
Maintenance
06_Wartung und Pflege_en.fm - V1.0 - 1.8.17
199 / 306
6
20
6.7.20 Cab ventilation dust filter
The air intake for the heater and for fresh air features a dust filter, with the option
of a charcoal / pollen filter.

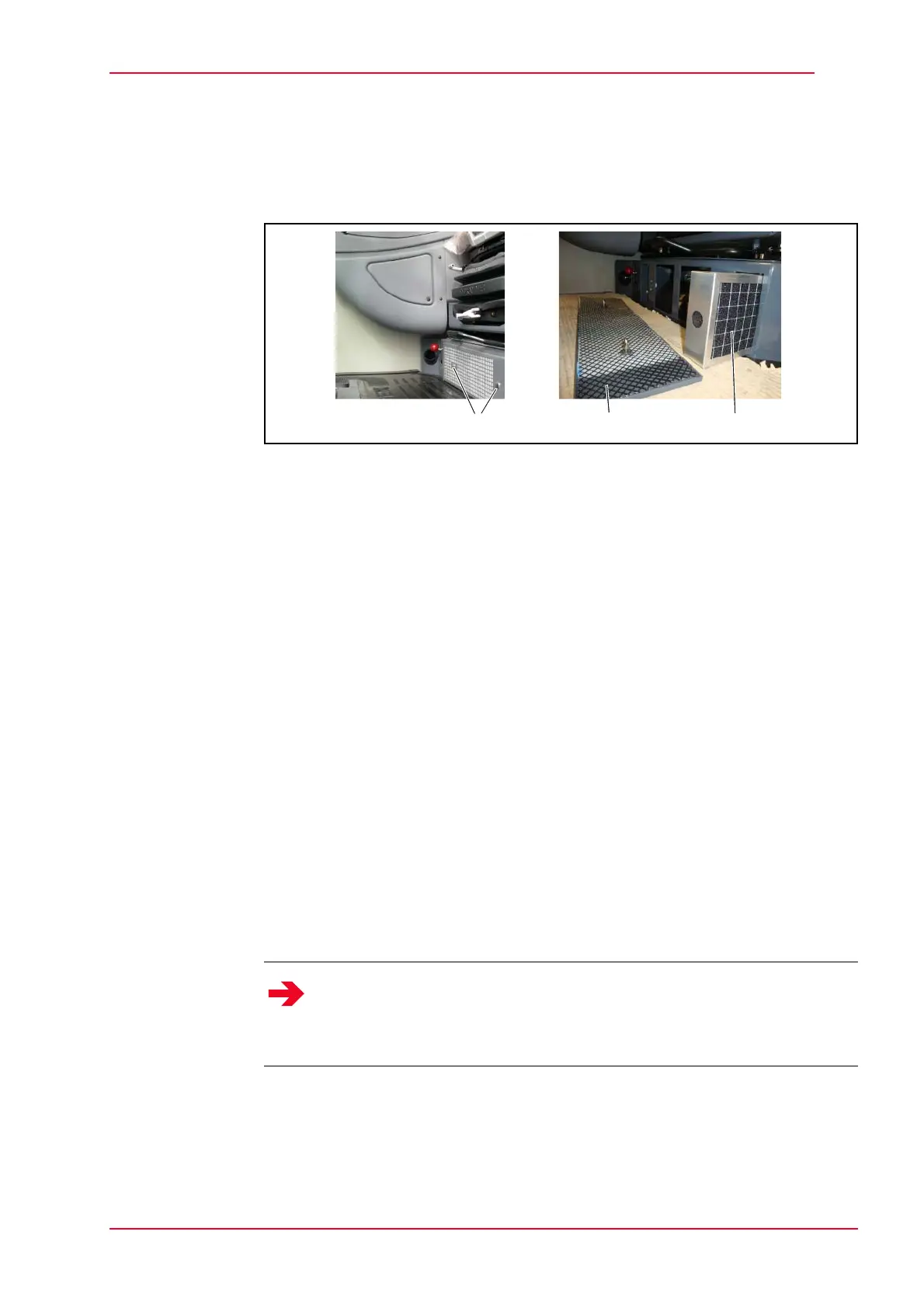

Fig. 6-42 Cab ventilation dust filter
1 Fresh air filter element
2 Cover plate and circulating air filter
3 Screw caps
Removal
Access to the air filters (1) and the heating system is located underneath the
driver's seat.
Remove the snap fastenings (3), by turning them 90°.
Remove the cover plate (2).
Remove the filter element (1).
Cleaning
Knock the intake side of the filter (side covered by mesh) several times on a
flat and hard surface.
Blow out the filter with dry compressed air (max. 5 bar), working in the
opposite direction to the direction of flow.
Check the filter for damage to the paper bellow and the seal.
Insert a new or cleaned dust filter as far as it will go.
Installation
Insert a new filter element (1).
Attach the cover plate (3) to the seat console and fasten it with the snap
fasteners (2) by turning 90°.
Notice
Pay attention to the mounting position! Air flow arrows pointing toward
heating.
Please pay attention to the operating instructions from the manufacturer of
the heating and air conditioning systems!
