Fold down
and fold up
maintenance
ladder

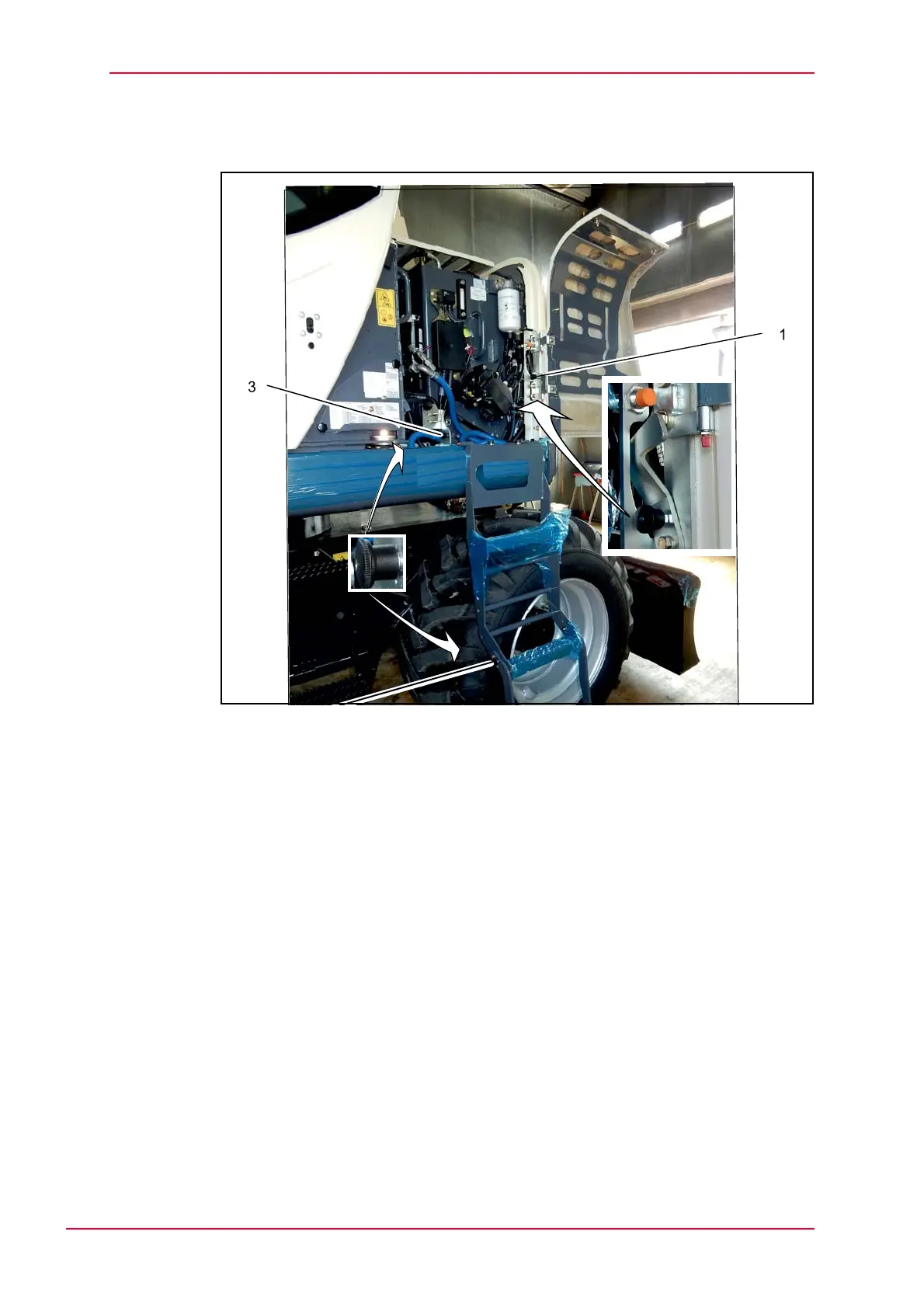

Fig. 6-14 Maintenance ladder - locked
1 Securing bracket - maintenance ladder
2 Locking - additional ladder (only on the B95W)
3 Locking - maintenance ladder
Open maintenance cover to the right, unlock securing bracket (1) and apply.
Unlock and fold down maintenance ladder (3).
Unlock and fold down additional access ladder (2).
When folding up the maintenance ladder and cover, ensure that the locks (1),
(2) and (3) lock into place.
