Checking the V-belt tension

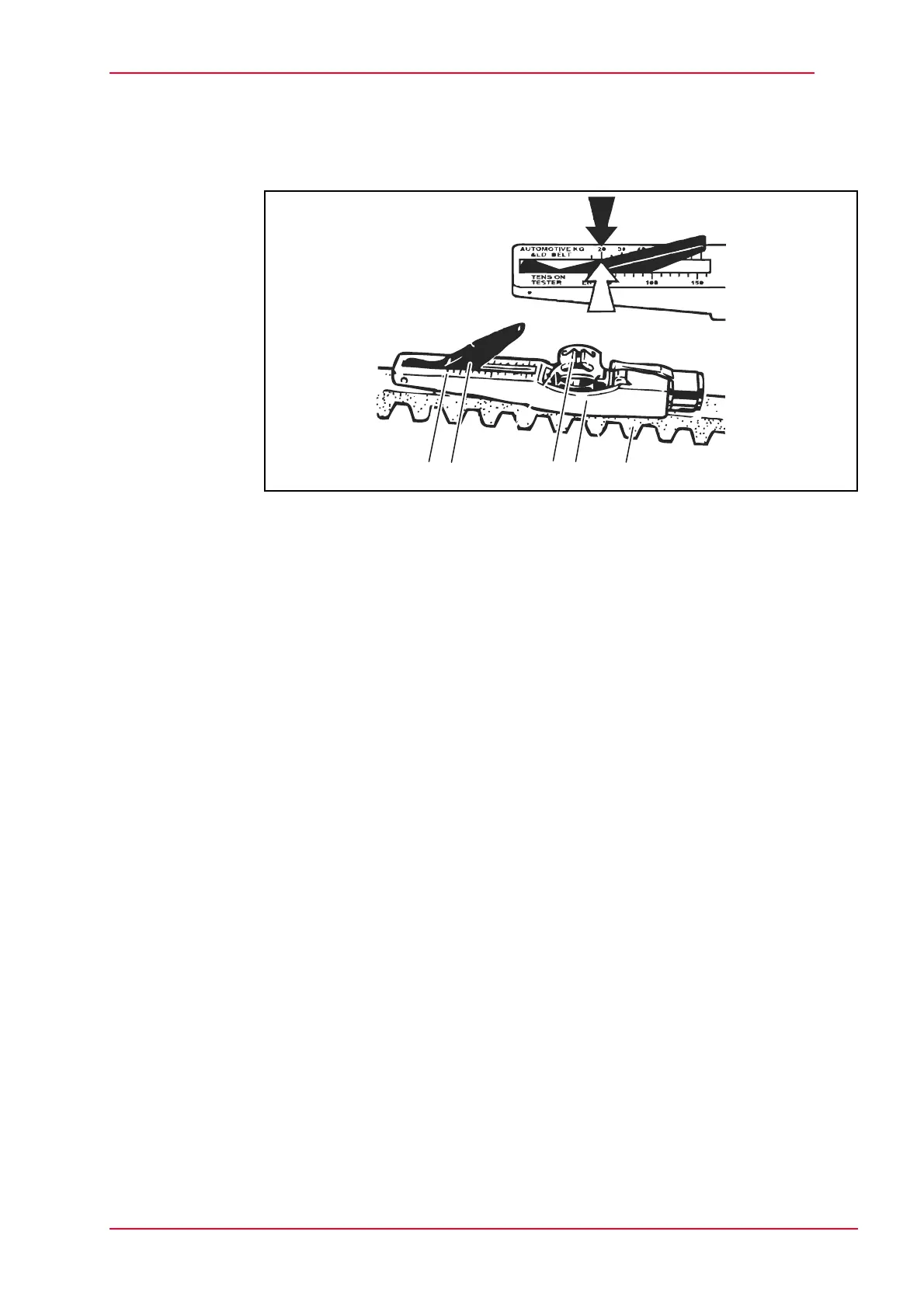

Fig. 6-21 V-rib belt
1 Dial
2 Indicator arm
3 Thrust Button
4 Guide
5 V-belt
V-belt tension pre/post-tightening:
650 N ± 50 N / 400 N ± 50 N
Lower the indicator arm (2) in the measuring device.
Insert the guide (4) between two pulleys on the V-rib belt. Make sure that the
side of the stop makes contact.
Press button (3) equally and at right angle to the V-rib belt, until you hear/feel
the spring unlocks.
Carefully lift the measuring device without altering the position of the indicator
arm (2).
Read the measured value on the interface (arrow), scale (5) and indicator
arm (2).
If necessary, re-tighten and repeat the measurement.
The belt tension measuring device can be acquired through your local DEUTZ
supplier.
