Maintenance
06_Wartung und Pflege_en.fm - V1.0 - 1.8.17
167 / 306
6
20
Checking the
hydraulic oil
level

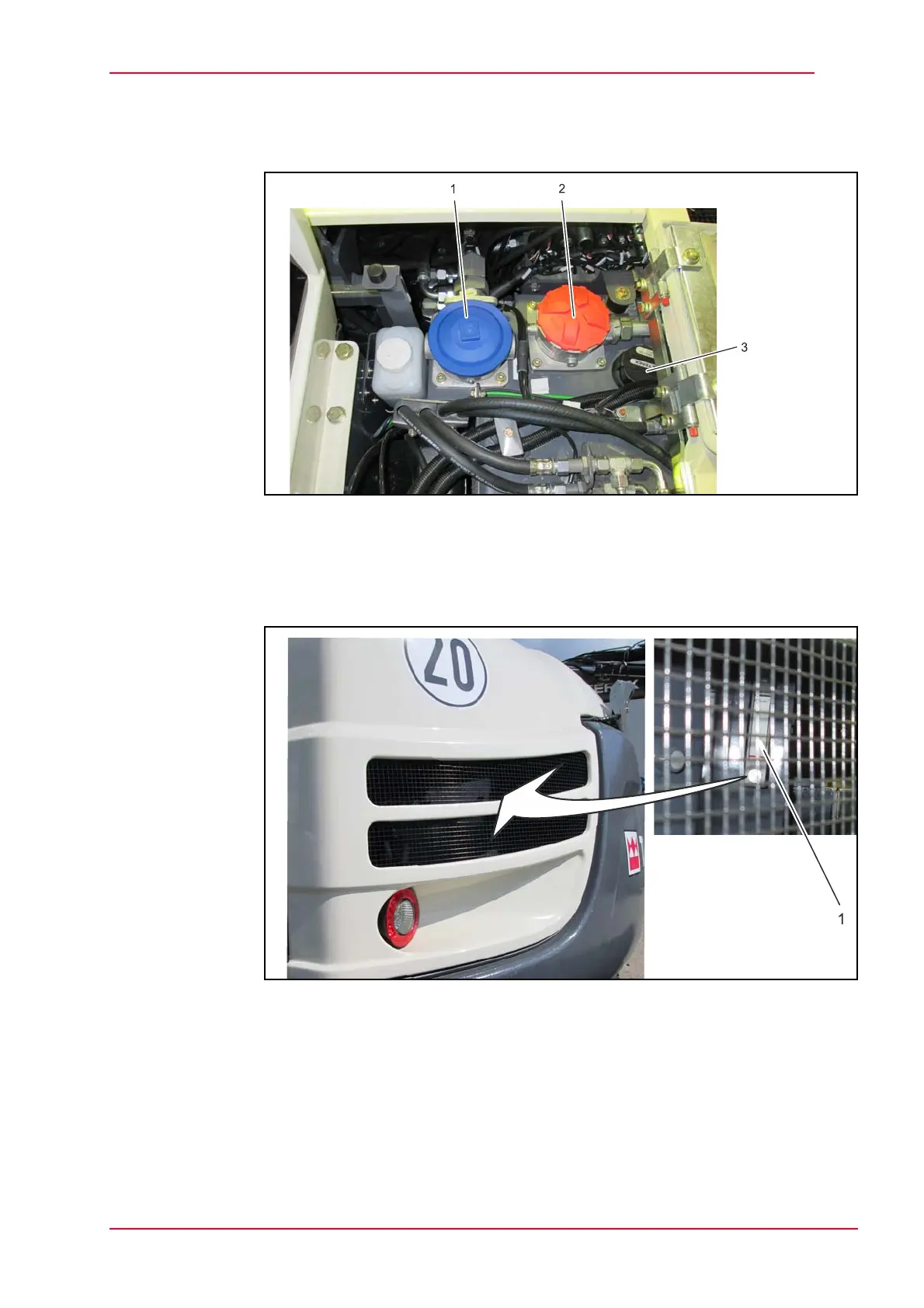

Fig. 6-24 Hydraulic oil tank
1 Return flow filter
2 Suction filter
3 Ventilation filter
Fig. 6-25 Hydraulic oil tank - sight glass
1 Sight glass
Check the hydraulic oil level via the sight glass (1), (found on the left side of
the machine, visible if you lift the rear cover), fill up with hydraulic oil as
necessary. Ensure that the hydraulic oil level in the sight glass remains at
two-thirds.
