B95W
Maintenance
06_Wartung und Pflege_en.fm - V1.0 - 1.8.17
193 / 306
6
20
Fuse & relay
box

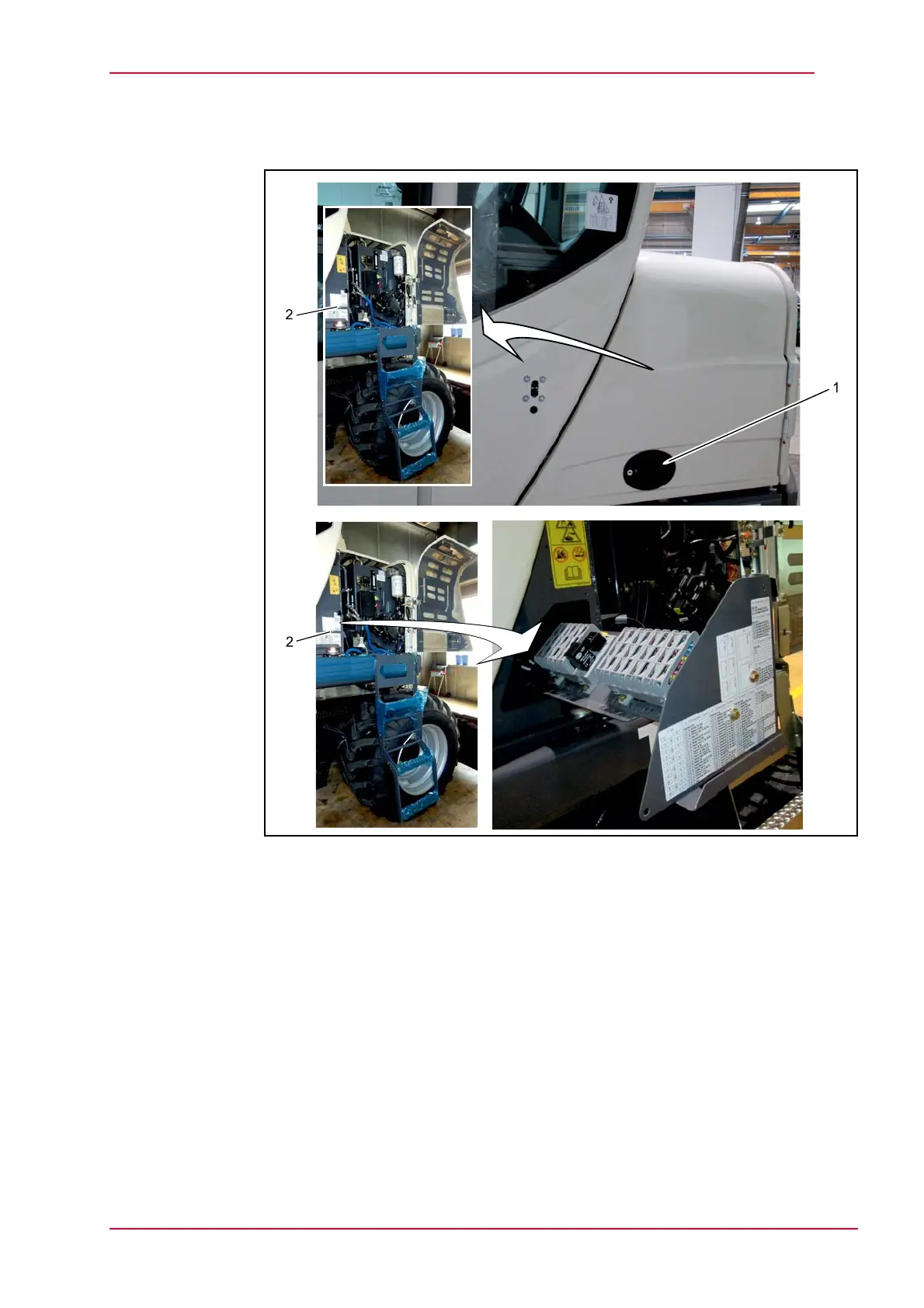

Fig. 6-40 Fuse & relay box
1 Maintenance cover with handle
2 Fuse & relay box
Open maintenance cover (1) to the right, unlock securing bracket and apply.
Carefully remove the fuse and relay box (2).
When folding up the maintenance cover, ensure that the locking strap is locked into
place.
