B95W
Operation
07_Bedienung_en.fm - V1.0 - 1.8.17
233 / 306
7
26
Control system The machine is equipped with an “ISO control”. as standard. The following
description is based on this version. At the customer's request, the machine can
be fitted with a switchable control system for the work equipment.
J This machine may be equipped with an option that allows changeover from
ISO to SAE control. Before operating the work equipment, check whether
there is a changeover switch or which operating mode is set.

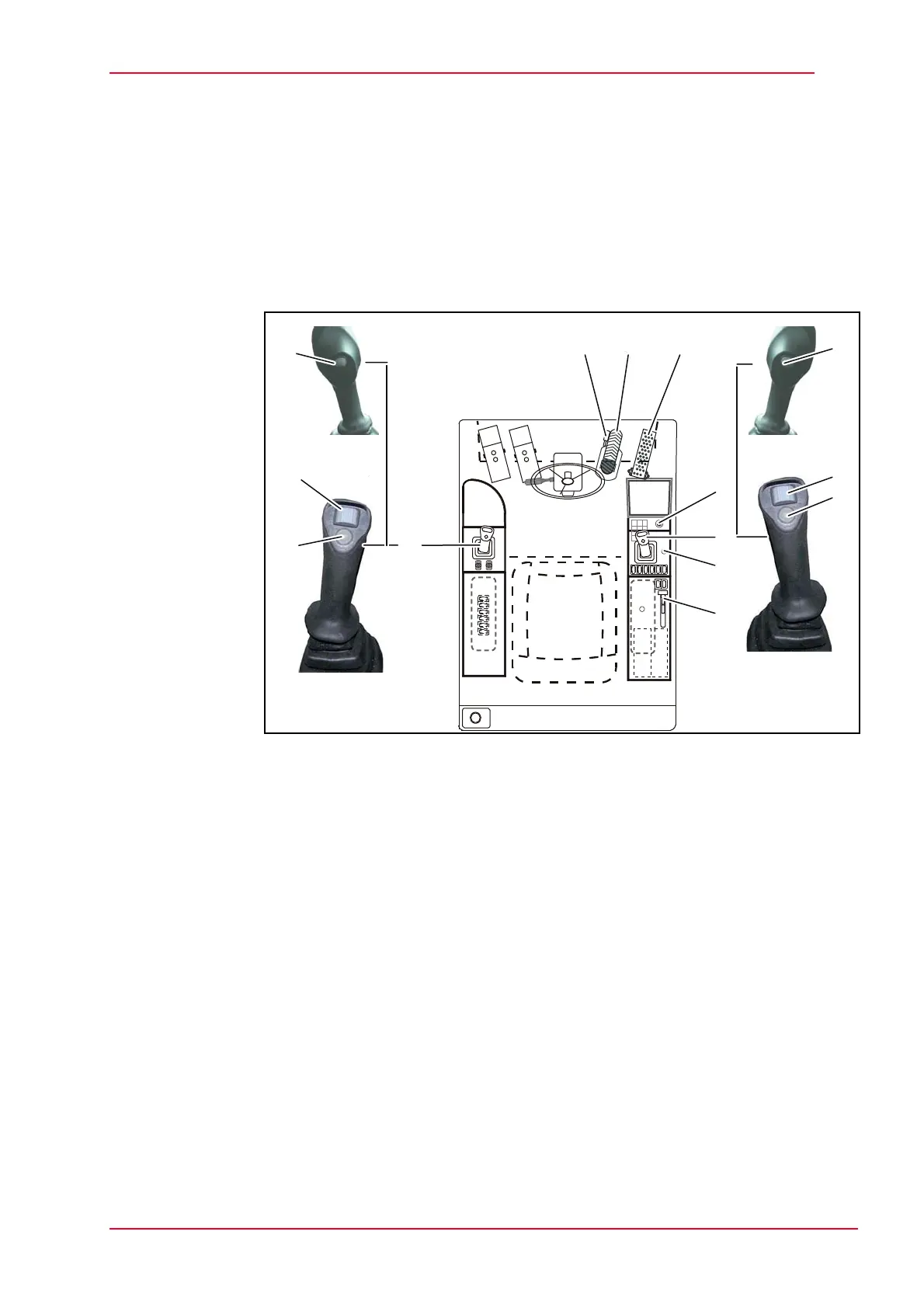

Fig. 7-12 Operation
3 Excavator brake unlocking
4 Service brake/excavator brake
5 Accelerator pedal
8 Start switch
9 Joystick - excavator equipment right
9-1 Continuous operation for additional control circuit (save key)
9-2 Side control for additional control circuit
9-3 Switch articulation/articulated boom
10 Forwards/reverse
11 Engine speed control (manual throttle)
16 Joystick - excavator equipment, left
16-1 Signal horn
16-2 Actuate dial for auxiliary control circuit 2
16-3 Slewing pressure switch
34
5
8
9
10
11
16
9-1
9-2
9-3
16-1
16-2
16-3
