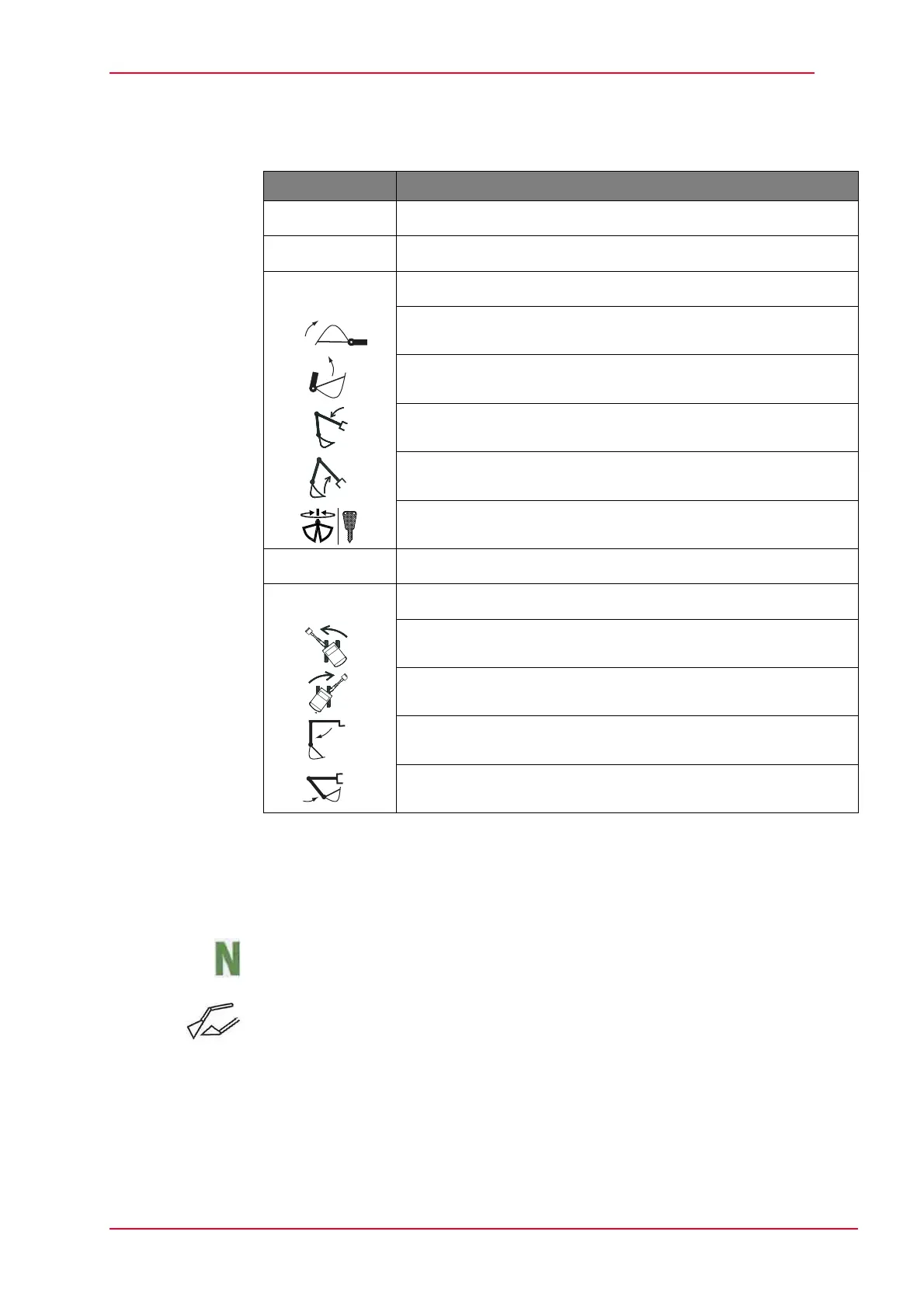

Tab. 7-1 Lever control
Acquaint yourself well with the lever controls before commencing excavation
work.
Use low engine speed when familiarizing yourself with the controls.
Always lock the excavator brake (3/4).
Put the travel direction lever (10) into the neutral position.
Switch the working hydraulics on on the keypad.
Loc. Function
1 Excavator brake unlocking
2 Service brake/excavator brake
3 Joystick - excavator equipment, right
Tilt dipper forward
Tilt dipper back
Lower boom
Raise boom
Grabber/hammer mode
4 Move forwards/backwards
5 Joystick - excavator equipment, left
Swing to the left
Swing to the right
Extend dipperstick
Retract dipperstick
