B95W
Operation
07_Bedienung_en.fm - V1.0 - 1.8.17
237 / 306
7
26

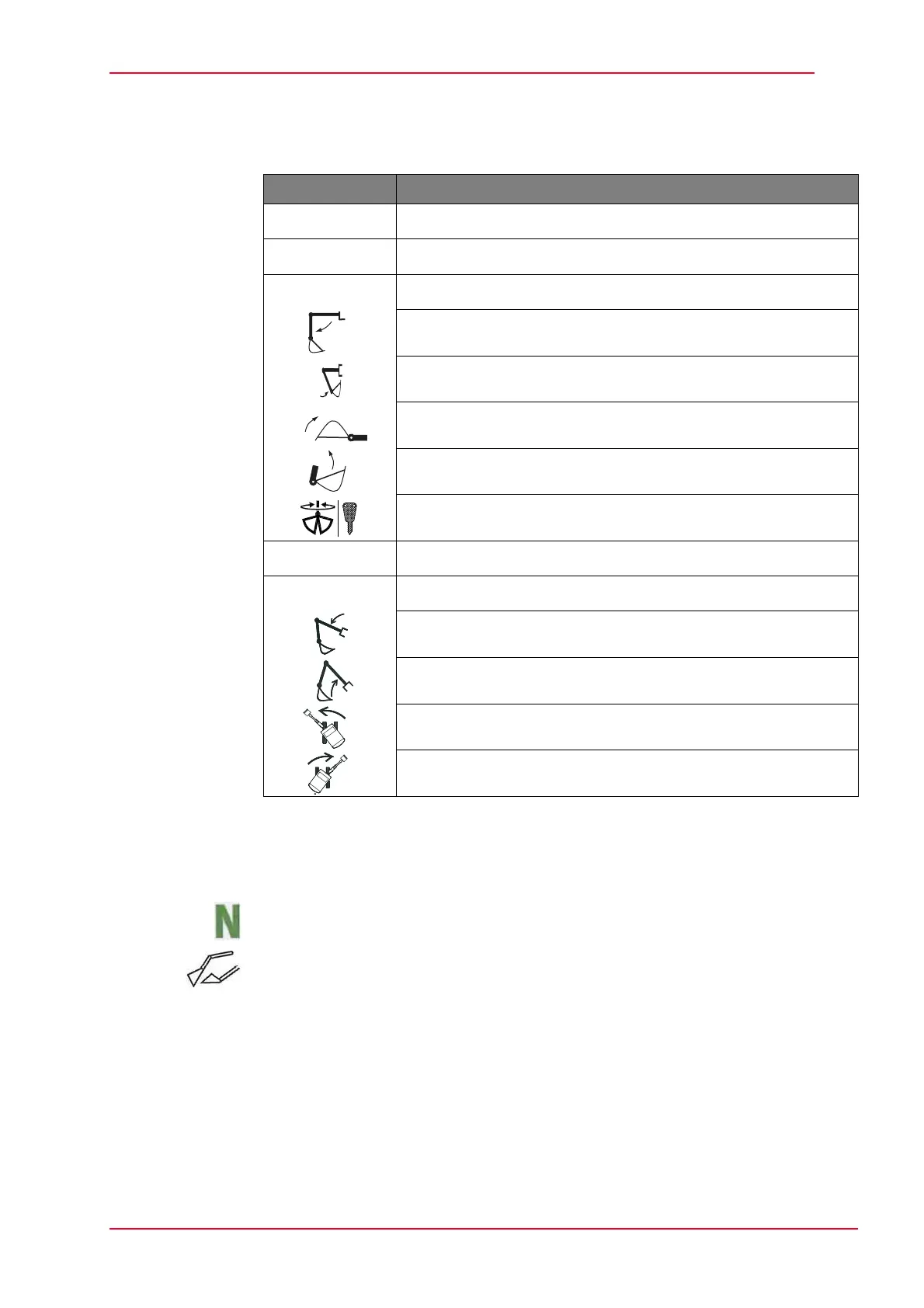

Tab. 7-2 Lever control
Acquaint yourself well with the lever controls before commencing excavation
work.
Use low engine speed when familiarizing yourself with the controls.
Put the travel direction lever into neutral. Check the display.
Switch the working hydraulics on on the keypad.
Pos. Functionality
1 Excavator brake unlocking
2 Service brake/excavator brake
3 Joystick - excavator equipment, right
Extend dipperstick
Retract dipperstick
Tilt dipper forward
Tilt dipper back
Grabber/hammer mode
4 Move forwards/backwards
5 Joystick - excavator equipment, left
Lower boom
Raise boom
Swing to the left
Swing to the right
