B95W
Operation
07_Bedienung_en.fm - V1.0 - 1.8.17
239 / 306
7
26
Actuate intermediate boom/ articulation

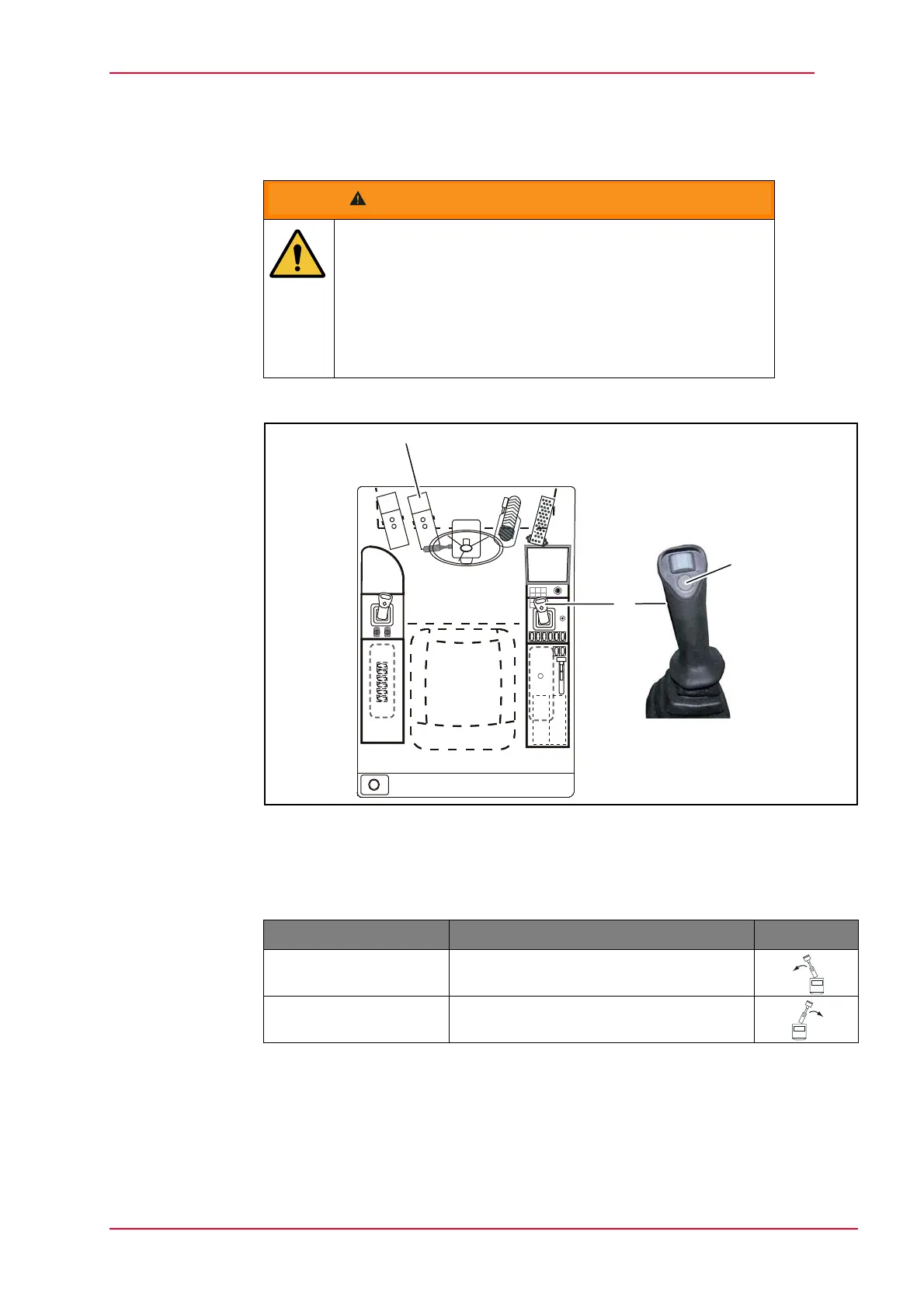

Fig. 7-16 Operation of intermediate boom
1 Actuate intermediate boom/articulation
2 Joystick - excavator equipment right
3 Changeover articulation/articulated boom
Pedal for
articulation (1)
Tab. 7-3 Control pedal for articulation
Press and hold button on actuating lever (3) – “articulation” actuation activated.
Danger due to heavy load
Machine may move unexpectedly.
Danger of serious injuries with fatal consequences.
Z When using wide work tools, e. g.
Ditch cleaning bucket, wide backhoe bucket or special
attachments, the driver must exercise particular caution
when working with the Knickmatik.
1
2
3
Position/actuation Effect
forwards Boom swings to the left.
backwards Boom swings to the right.
