YASKAWA NX100 Instruction Manual

Fieldbus PCI-Card
Network setup
A
B

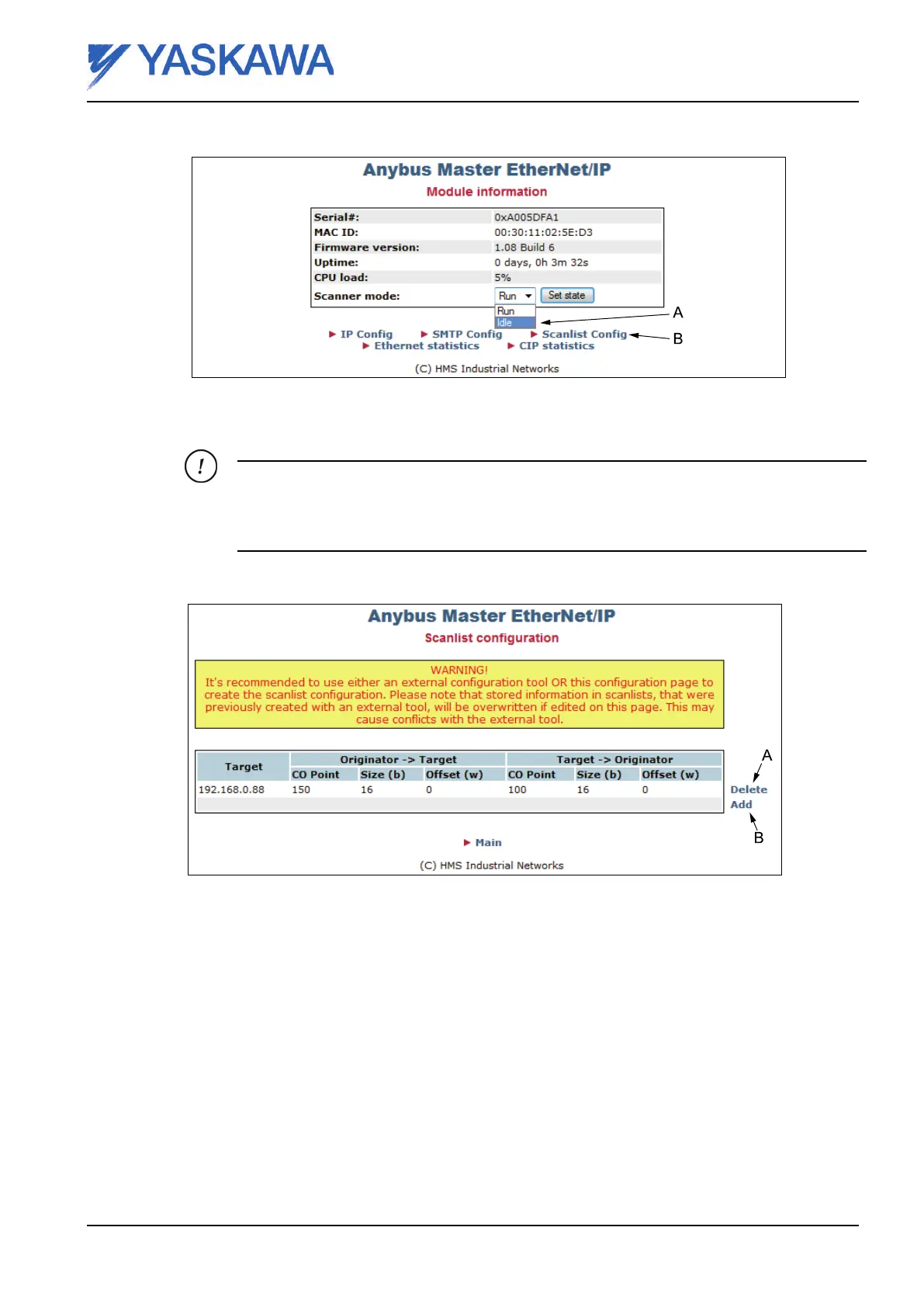

Fig. 46 Anybus Master EtherNet/IP
A. Scanner mode Idle B. Scanlist Config
Note
If Scanlist Config is missing, update the HMSAB.DRV in the robot controller or the firmware
on the PCI card.
To enter Configuration of Scanlist, select text “Scanlist Config”:
A
B
Fig. 47 Anybus Master EtherNet/IP 2
A. Delete
B. Add
If you try to add or edit the scanlist when the module is in RUN-mode the following error will be
displayed:
Reg.No. ME00107EN-02 Page 55

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
