YASKAWA NX100 Instruction Manual

Fieldbus PCI-Card
Network setup

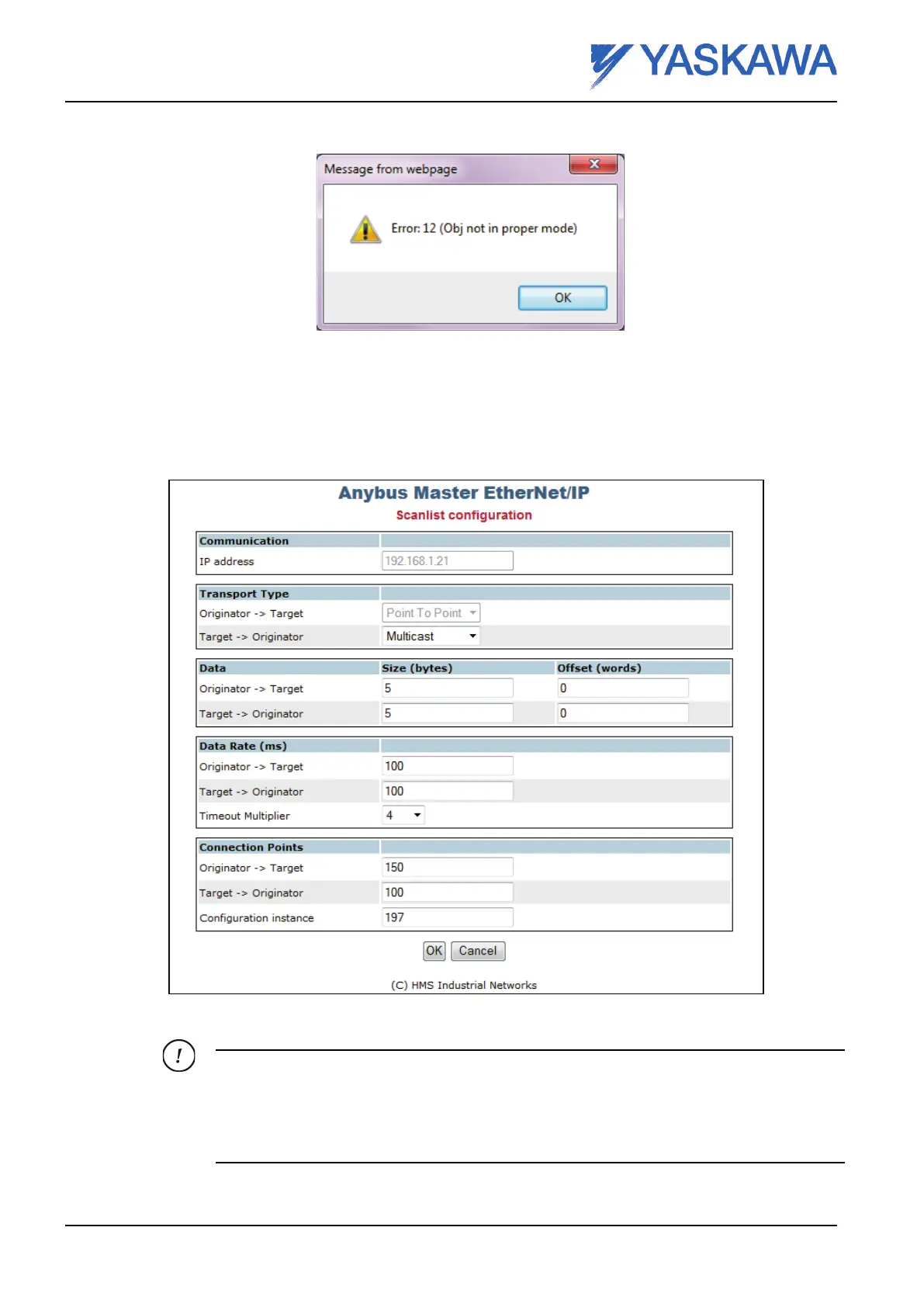

Fig. 48 Error:12
To edit a connection in the list, just click on that row. To add a connection press [Add]. To delete a
connection select row and press [Delete]. See Fig. 47 Anybus Master EtherNet/IP 2.
Example below shows connection 5 bytes from an AnyBus Ethernet/IP adapter. Please note the
instance numbering:
Fig. 49 Scanlist configuration
Note
The sum of all Originator->Target is not allowed to be greater than 505 bytes and the sum of
all Target ->Originator is not allowed to be greater than 509 bytes. See Fig. 49 Scanlist
configuration. Be sure not to set greater values or addresses outside these limits.
Page 56 Reg.No. ME00107EN-02

YASKAWA NX100 Specifications

General

Manufacturer	YASKAWA
Model	NX100
Operating Temperature	0 to 45°C
Humidity	20 to 80% RH (non-condensing)
Communication Interfaces	Ethernet
Safety Standards	ISO 10218-1
Power Supply	200-230V AC, 50/60Hz
Storage Temperature	60°C
