Operating the XtraDrive Using XtraWare
4.8.2. Mechanical Analysis Toolbar

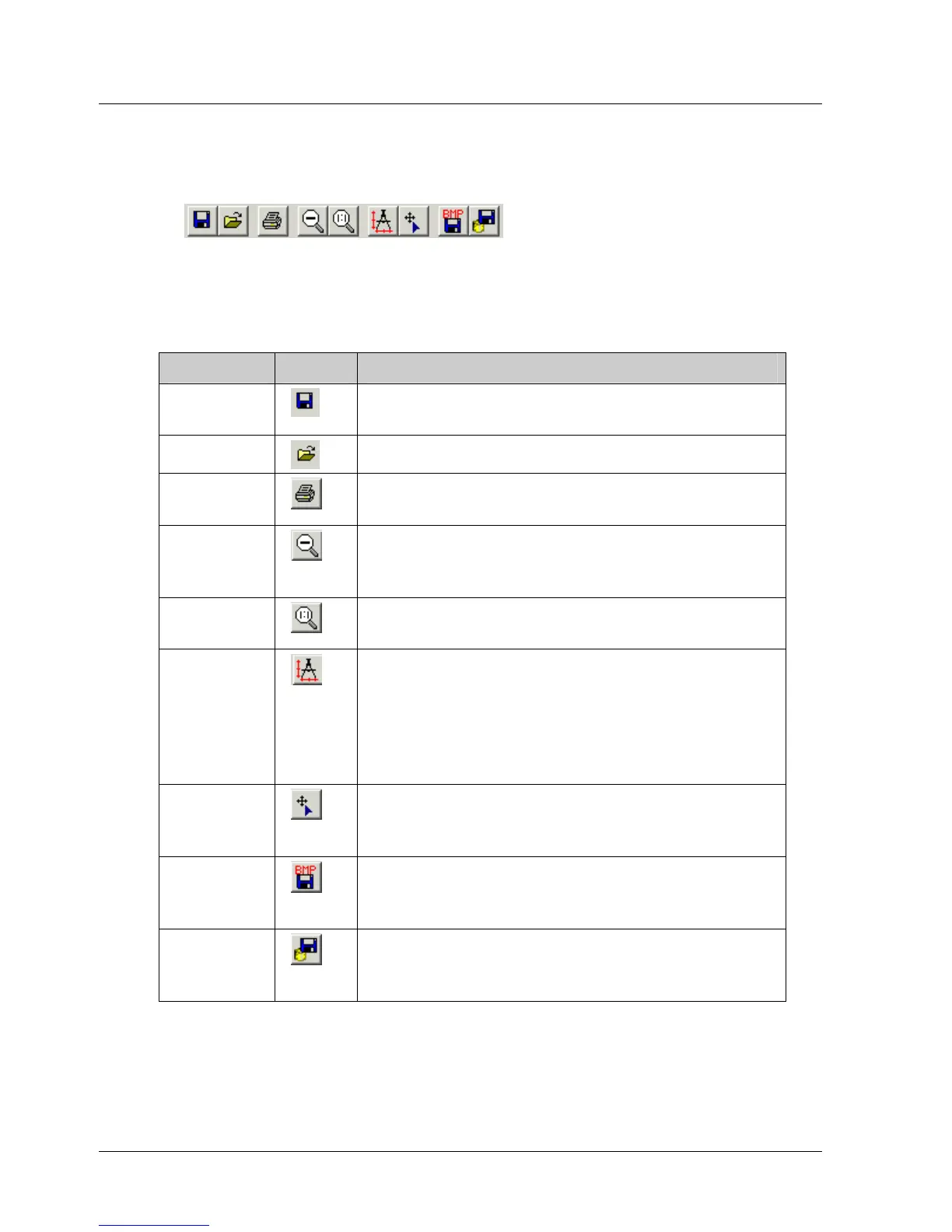

The mechanical analysis toolbar is shown below.
Figure 31: Mechanical Analysis Toolbar
The following table explains the function of each icon:
Table 13: Description of Mechanical Analysis Toolbar Icons
Option ICON DESCRIPTION
Save
Chart
Saves the current analysis include the settings
and the graph.
Open
Opens a previously saved analysis.
Print
Prints the currently displayed chart and its
corresponding data.
Up one
zoom
level
Restores the previous zoom level.
Reset
zoom
Restores the area shown in the window to its
normal size.
Enable
Measure
Dragging the cursor by left-clicking the mouse
enables the measurement of the difference
(delta) between the ends of the line. The delta
values are displayed in each axis label. Left-
clicking in a new location starts a new
measurement.
Show
markers
Shows exact value of a point. A yellow cross
reflects the movement of the mouse and the
exact value can be seen in each axis label.
Save
graph as
Saves graph in bmp format enabling you to
view the graph without the need for the
XtraWare software.
Export
graph
data
Saves graph data in Excel format (*.csv).
XtraWare User Manual 47
