YASKAWA Z1000 CIMR-ZU*A Series User Manual

u

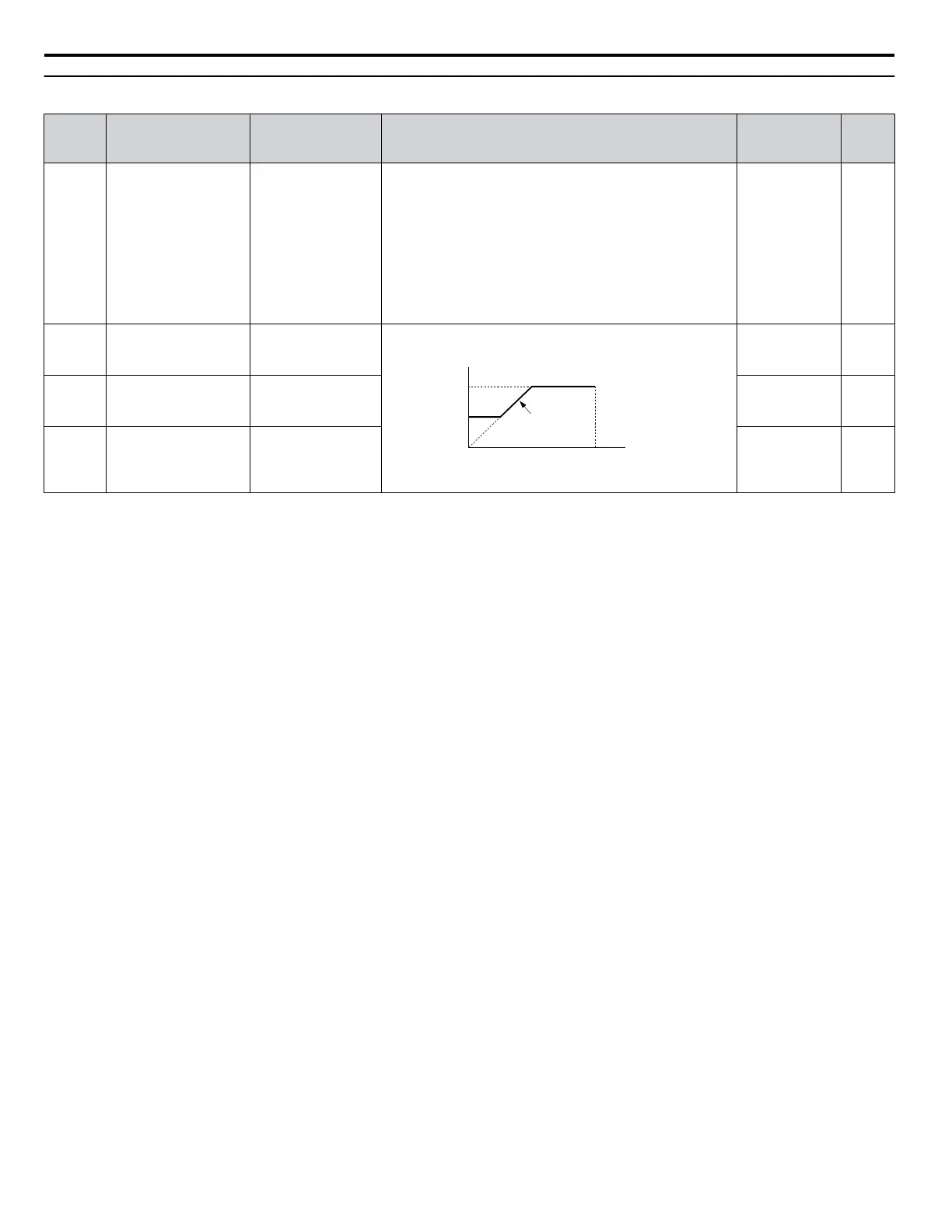

C6: Carrier Frequency
No.
(Addr.
Hex)
Name LCD Display Description Values Page
C6-02
(224)
Carrier Frequency
Selection
CarrierFreq Sel
1: 2.0 kHz
2: 5.0 kHz
3: 8.0 kHz
4: 10.0 kHz
5: 12.5 kHz
7: Swing PWM1
8: Swing PWM2
9: Swing PWM3
A: Swing PWM4
F: Program
1: 2.0 kHz
2: 5.0 kHz
3: 8.0 kHz
4: 10.0 kHz
5: 12.5 kHz
7: Swing PWM1 (Audible sound 1)
8: Swing PWM2 (Audible sound 2)
9: Swing PWM3 (Audible sound 3)
A: Swing PWM4 (Audible sound 4)
B to E: No setting possible
F: User-defined (determined by C6-03 through C6-05)
Default:
<1>
Range: 1 to 5; 7 to
9; A, F
54
C6-03
(225)
Carrier Frequency
Upper Limit
CarrierFreq Max
Determines the upper and lower limits for the carrier frequency.
Carrier Frequency
E1-04
Max Output
Frequency
Output Frequency
× (C6-05) × K
Output
Frequency
C6-03
C6-04
Default:
<2>
Min.: 1.0 kHz
Max.: 12.5 kHz
54
C6-04
(226)
Carrier Frequency
Lower Limit
CarrierFreq Min
Default:
<2>
Min.: 1.0 kHz
Max.: 12.5 kHz
54
C6-05
(227)
Carrier Frequency
Proportional Gain
CarrierFreq Gain
Default:
<2>
Min.: 0
Max.: 99
54
<1> Default setting value is dependent on parameters A1-02, Control Method Selection and o2-04, Drive Model Selection.
<2> Default setting value is dependent on parameter C6-02, Carrier Frequency Selection.
A.5 C: Tuning
194
YASKAWA SIEP YAIZ1U 03B YASKAWA AC Drive – Z1000 Programming Manual

YASKAWA Z1000 CIMR-ZU*A Series Specifications

General

Series	Z1000 CIMR-ZU*A Series
Category	Controller
Voltage Classes	200V, 400V
Enclosure	NEMA 1, NEMA 12
Frequency Range	0.01 to 400 Hz
Cooling Method	Fan Cooled
Operating Temperature	-10°C to 50°C
Application	HVAC
Control Method	V/f Control
Input Voltage	200-240V, 380-480V
Frequency Range (Input)	50/60 Hz
Power Rating	0.4kW to 630kW
Protection Features	Overcurrent, Overvoltage, Undervoltage
Communication Options	Modbus
Storage Temperature	-20°C to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Output Voltage	0-100% of input voltage
