6-10 IM 765501-01E
6.5 Starting the Sweep Operation
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.
Starting the Sweep Operation

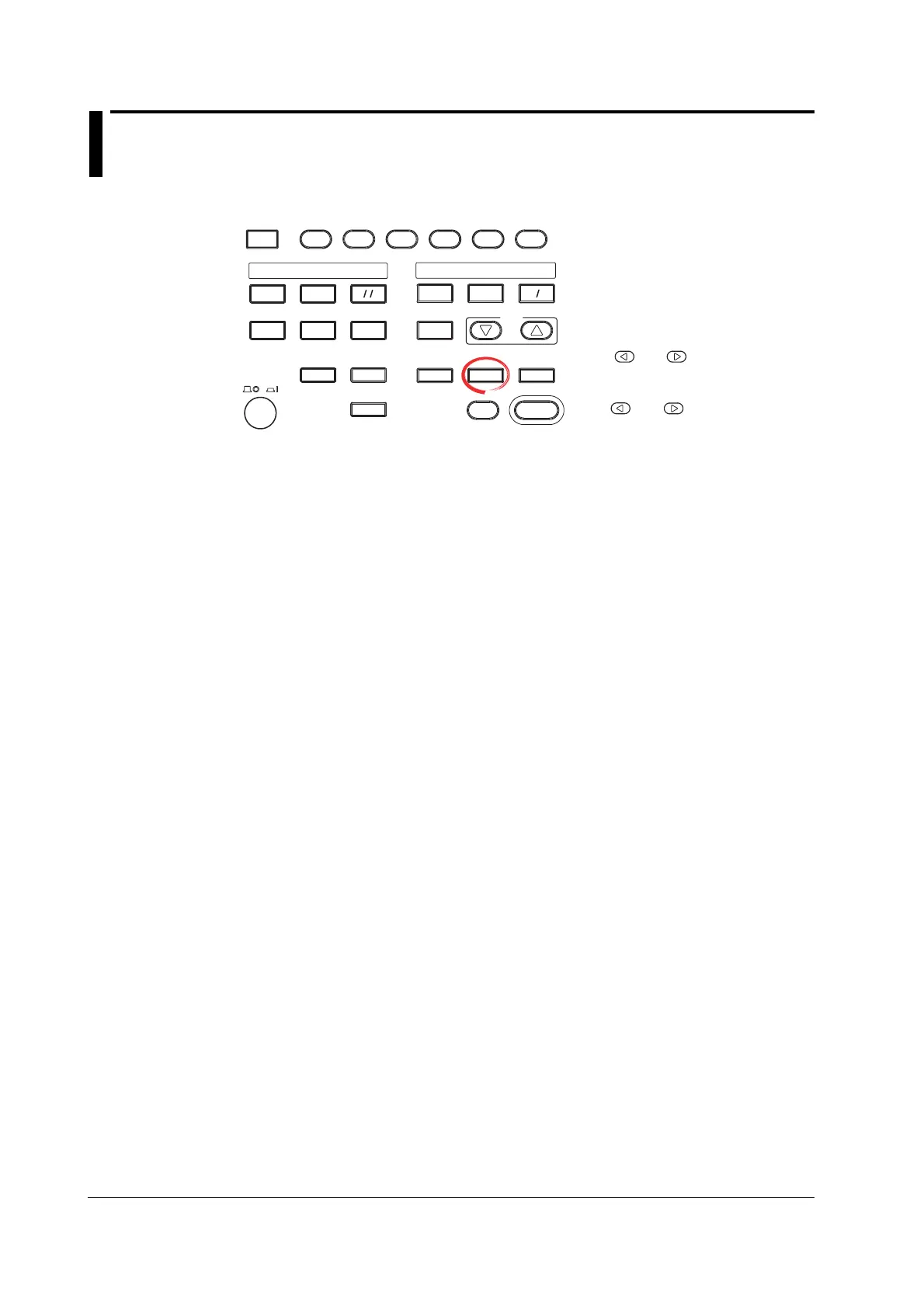

Press START to set the sweep operation to trigger wait condition.
Explanation
Starting the Sweep Operation
Set the sweep operation to trigger wait condition. When a trigger is activated, the sweep
operation starts. When the sweep operation is started, one step of the source measure
cycle is executed.
You can generate the start event using the START key on the front panel or a
communication command (“:SWEep:TRIGger,” see section 16.2.4, “Sweep
Commands”). You can also generate the start event with the falling edge of the signal
applied to the BNC input terminal or pin 3 of the external input/output connector on the
rear panel.
When the GS610 is in the start wait state, the wait indicator (WaitStart) illuminates.
When the sweep operation is started, the START key blinks, and WaitStart turns OFF
until the sweep operation is completed.
If a start event occurs in the middle of a sweep operation, the current sweep operation is
cancelled, and the sweep operation is restarted from the beginning.
<<Corresponding Command Mnemonic>>
:SWEep:TRIGger
