12.3 Setting the TCP/IP
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.

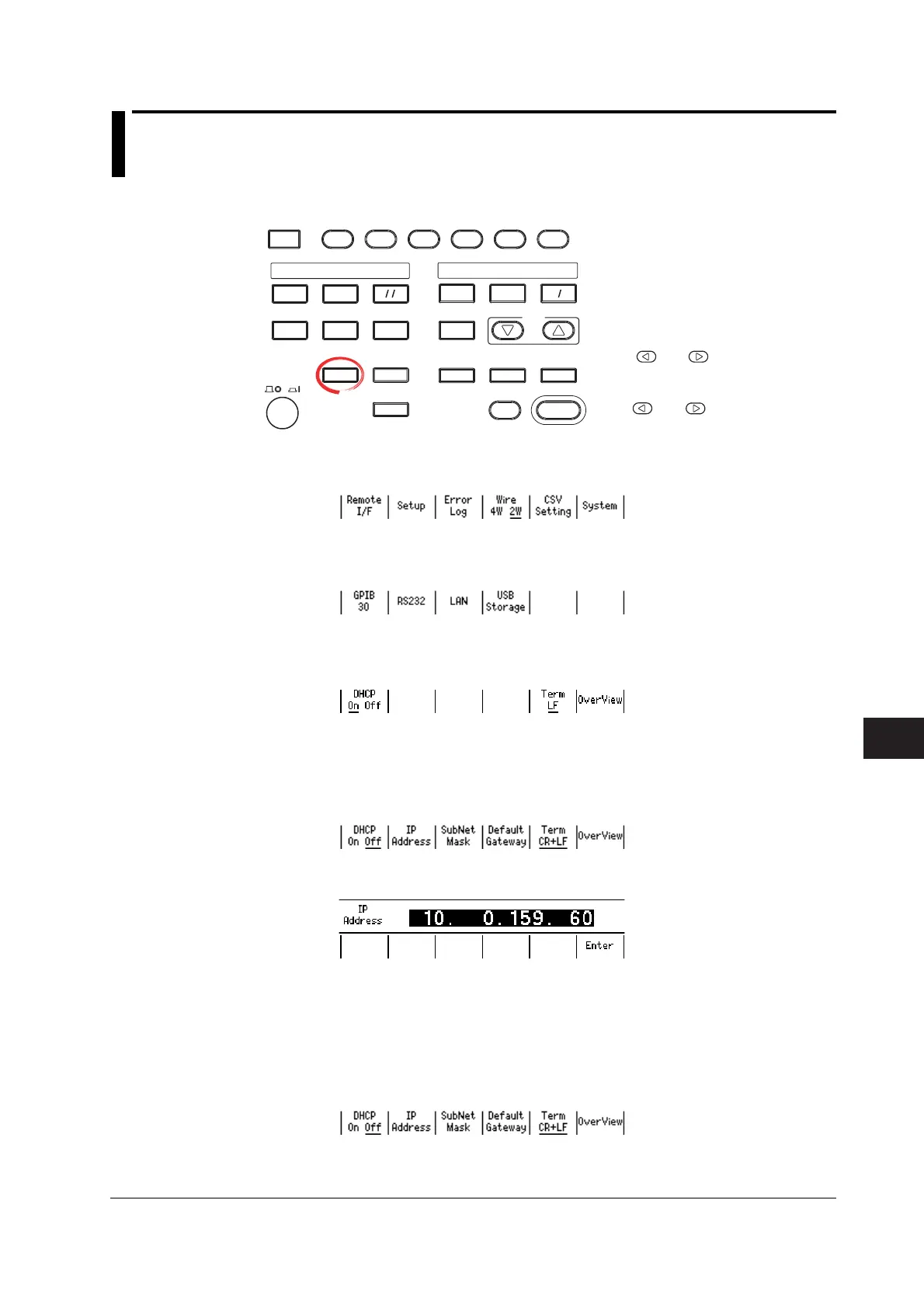

1. Press MISC to display the MISC menu.
2. Press the Remote I/F soft key to display the Remote I/F menu.
Selecting Ethernet Communications
3. Press the LAN soft key to display the LAN menu.
Selecting Whether to Use DHCP
4. Press the DHCP soft key to select On or Off.
Setting the IP Address
Turn OFF DHCP according to the procedure described earlier, and then set the IP
address.
5. Press the IP Address soft key to display the IP address setup screen.
6. Use the numeric keys to set the IP address.
7. Press the Enter soft key to confirm the setting.
Setting the Subnet Mask
Turn OFF DHCP according to the procedure described earlier, and then set the subnet
mask.
5. Press the SubNet Mask soft key to display the subnet mask setup screen.
