7-3
IM 765501-01E
Measurement
3
2
1
6
5
4
9
8
7
12
11
10
15
14
13
18
17
16
Index
App

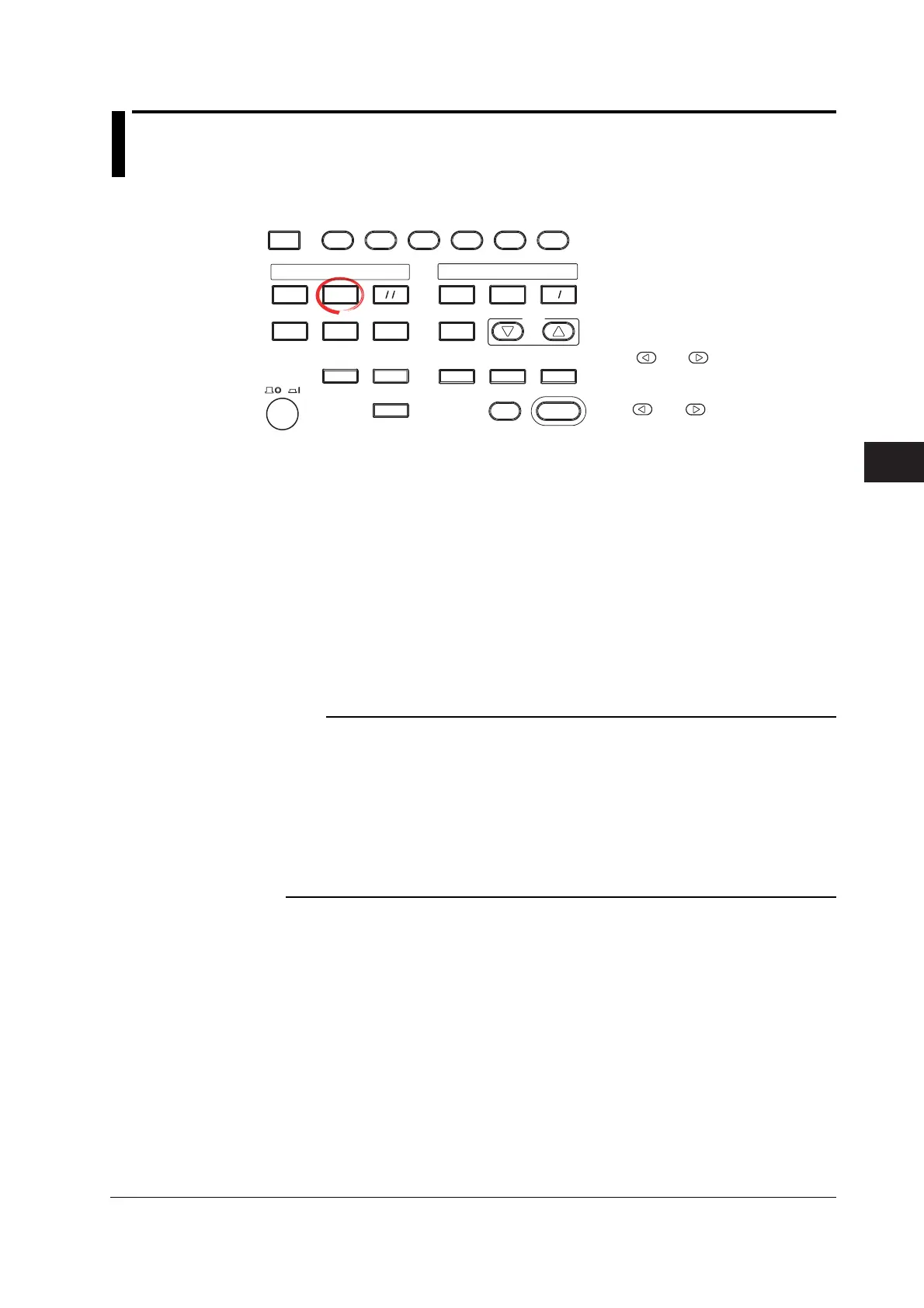

7.3 Turning ON/OFF the Auto Range function of
the Measurement Range Settings
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
RECALL
DISPLAY
ESC
To exit the menu during operation, press
ESC at the upper left of the operation
panel.
In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.
Press AUTO RANGE under MEASURE to select ON or OFF. When the auto
range function is turned ON, the AUTO RANGE key illuminates.
Explanation
Measurement Range Settings and Auto Range
The measurement range setting is determined indirectly by the source range setting and
limiter setting. It is no set directly.
When auto range is turned ON, the GS610 makes a measurement and checks whether a
different range setting is available for making the measurement with the best resolution.
If so, the GS610 changes the range setting and makes the measurement again.
However, it may take time for the GS610 to switch the range setting, and the source
level may become discontinuous.
Note
The measurement auto range does not operate, and an error occurs in the following
cases.
If the source mode is set to pulse source.
If the source and measurement are set to the same function (voltage source and
voltage measurement or current source and current measurement).
If the limiter tracking is turned OFF.
If the source and measurement are set to the same function (voltage source and voltage
measurement or current source and current measurement), the limiter range is set equal
to the measurement range setting. Therefore, the limiter range is changed along with the
measurement auto range operation. When the limiter range is changed, the limiter level is
transiently set to 10% of the range setting.
<<Corresponding Command Mnemonic>>
:SENSe:RANGe:AUTO
