7.5 Setting the Integration Time
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.

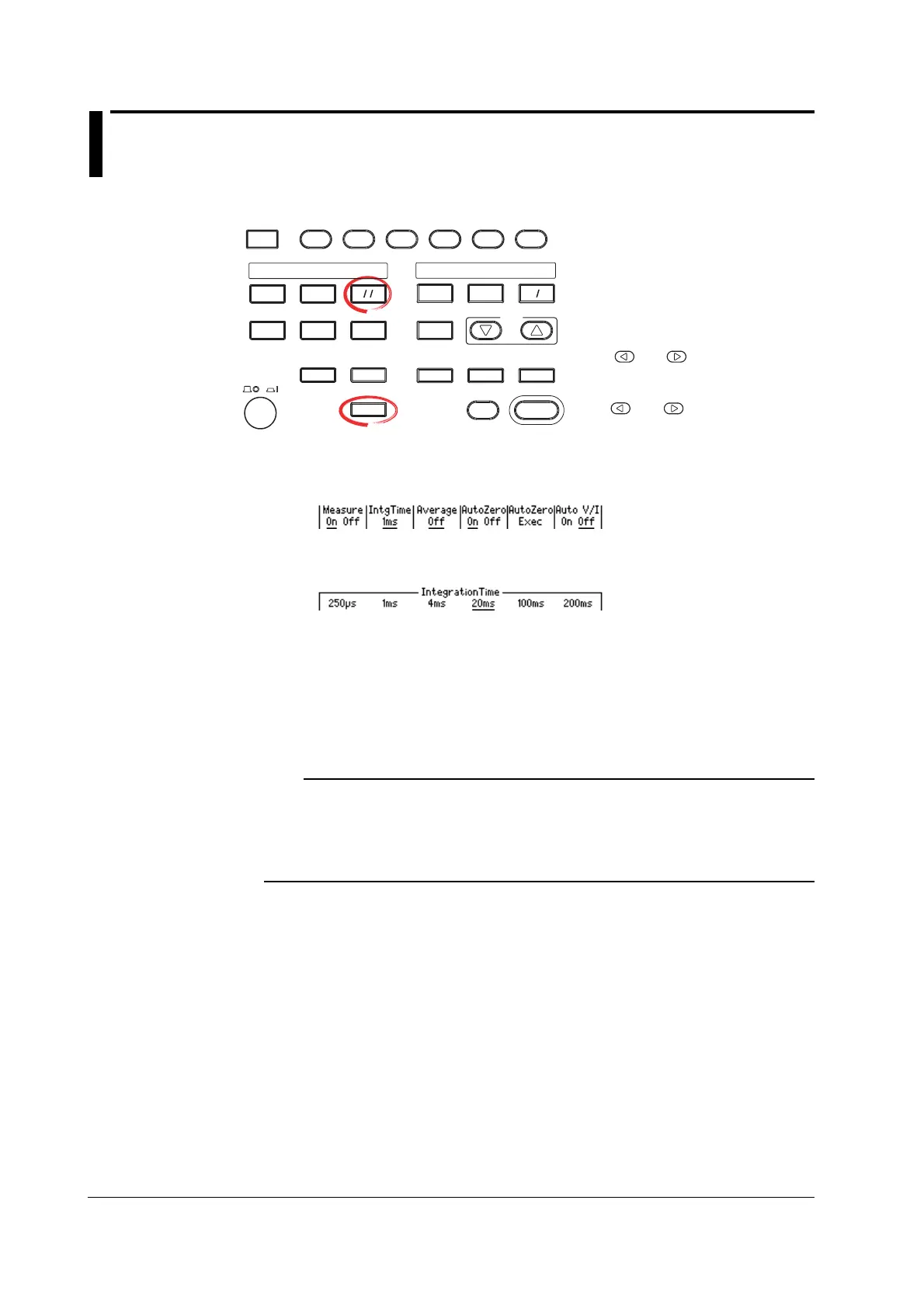

1. Press SHIFT+V/I/Ω(MEASURE) to display the Measure menu.
2. Press the IntgTime soft key to display the IntegrationTime menu.
3. Press the soft key corresponding to the desired integration time.
Explanation
Select from the following:
• When the Power Frequency Is 50 Hz
250 µs, 1 ms, 4 ms, 20 ms, 100 ms, or 200 ms
• When the Power Frequency Is 60 Hz
250 µs, 1 ms, 4 ms, 16.6 ms, 100 ms, or 200 ms
Note
• If the integration time is set to 200 ms, 100 ms, 20 ms, or 16.6 ms, the effects of noise
from the power frequency can be eliminated, because these settings are integer multiples
of the power cycle. Use one of these integration times in measurements that handle
delicate voltage or current that is easily affected by noise.
• The power frequency setting can be changed even after the GS610 starts up (see section
3.6, “Setting the Power Frequency”).
<<Corresponding Command Mnemonic>>
:SENSe:ITIMe
