4.1 Setting the Trigger
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.

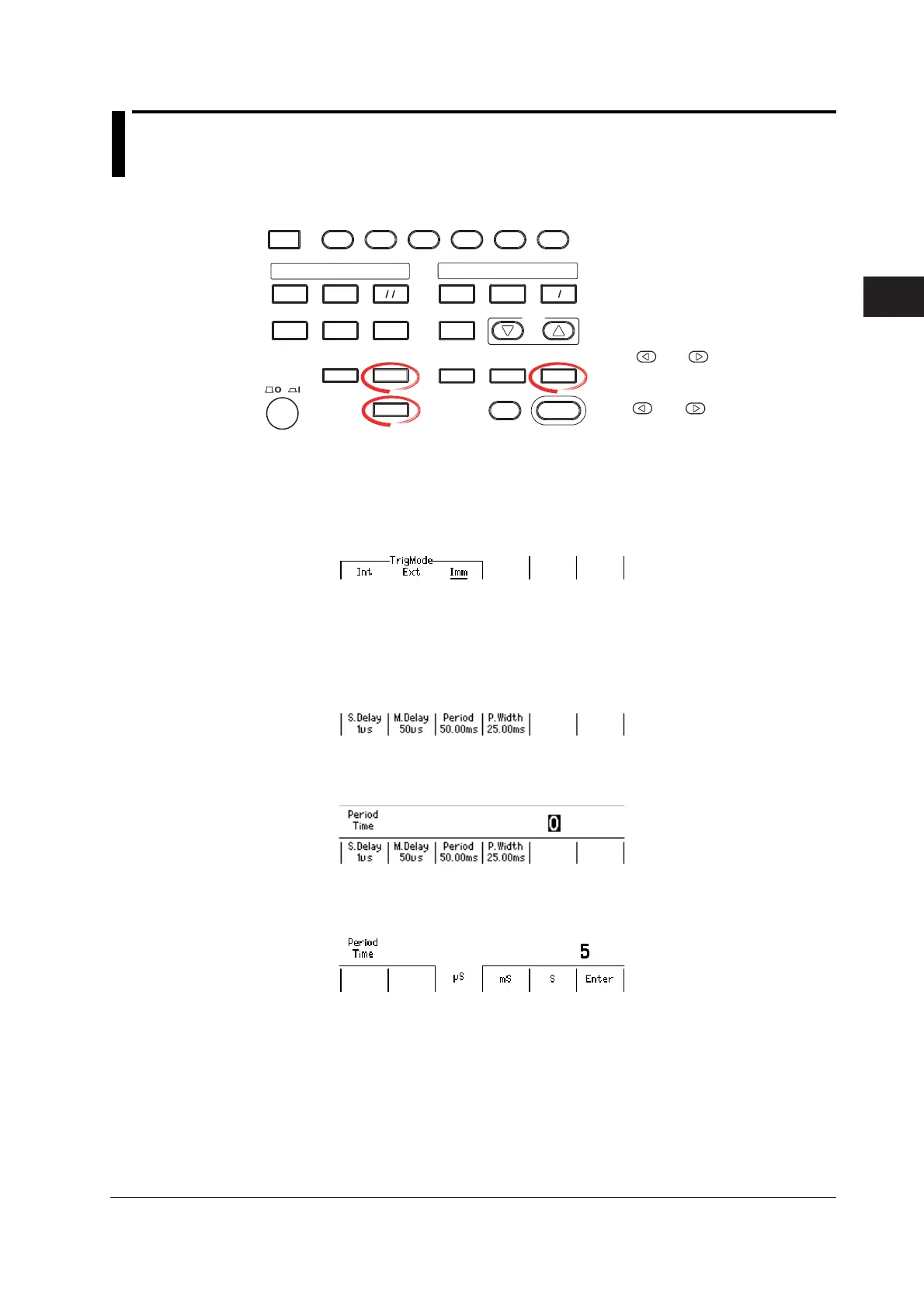

Selecting the Trigger Mode
1. Press SHIFT+TRIG(MODE) to display the TrigMode menu.
2. Select the desired trigger mode from Int, Ext, and Imm.
If the measurement is OFF (Measure OFF) (see section 7.1, “Turning the
Measurement ON/OFF”), Imm cannot be selected.
If the trigger mode is set to Int, proceed to step 3.
Setting the Repeat Period
3. Press TIME to display the Time menu.
4. Press the Period soft key.
5. Use the rotary knob or numeric keys and < and > keys to set the repeat
period.
6. If you use the numeric keys, press a soft key corresponding to the desired unit
or the Enter soft key to confirm the setting.
Manual Trigger
A trigger is activated each time you press TRIG.
