8.3 Computation Using Equations
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.

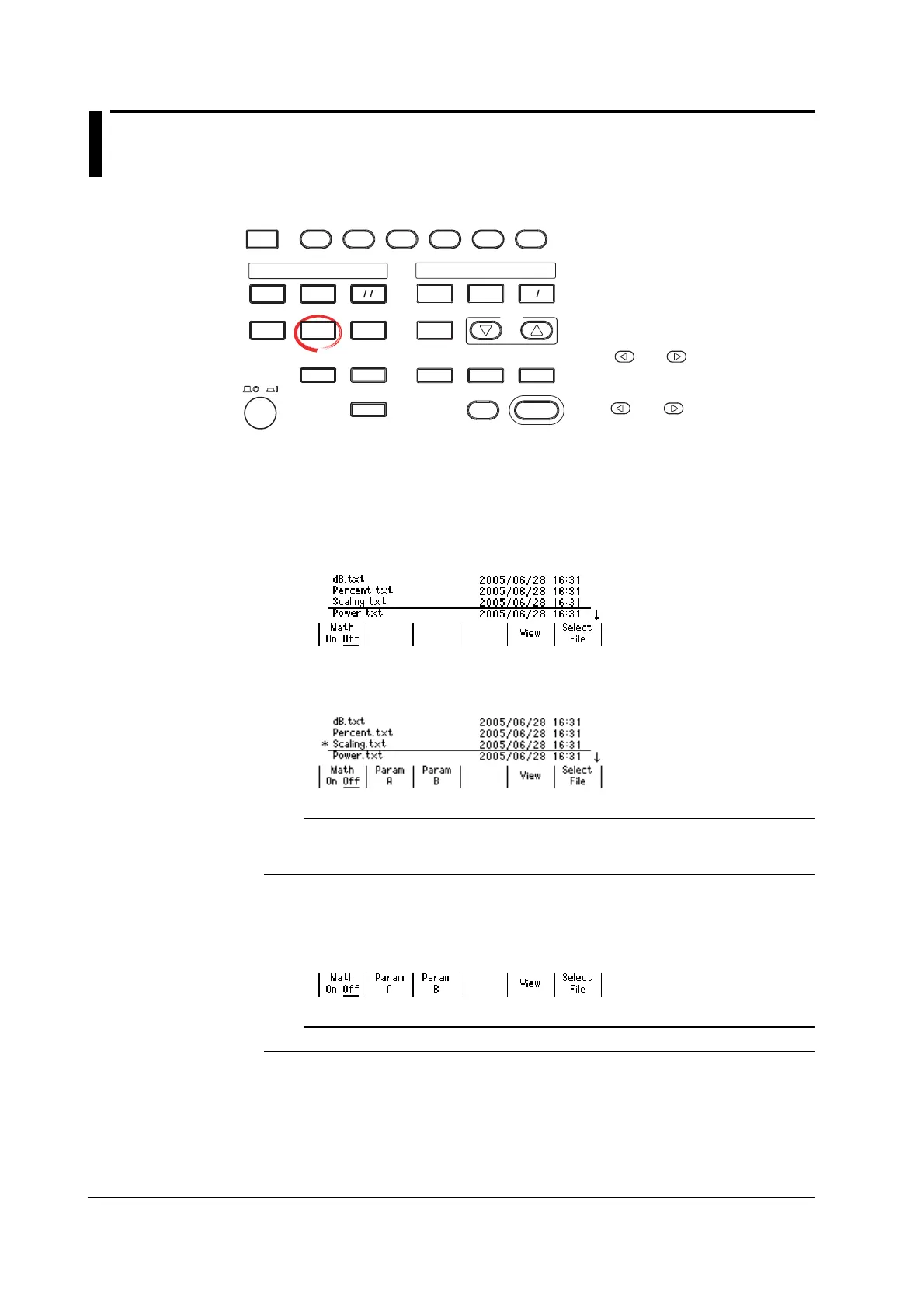

Turning Computation ON/OFF
1. Press MATH to display the MATH menu.
Selecting the Computation Definition
2. Use the rotary knob and < and > keys to select the computation definition file.
The selected file is underlined.
3. Press the Select File soft key to confirm the computation definition file. An
asterisk is placed on the computation definition file that has been confirmed.
Note
If the description in the computation definition file is not correct, the file cannot be selected. In
this case, if the beep sound (see section 11.4, “Turning the Beep Sound ON/OFF”) is turned
ON, a beep sound is generated.
4. Press the Math soft key to select On (compute) or Off (not compute). If On is
selected, the MATH key illuminates, and the soft keys for the parameters that
needs to be specified for the selected computation definition file are displayed.
Note
If you select ON without selecting a computation definition file, an error occurs.
