5-14 IM 765501-01E

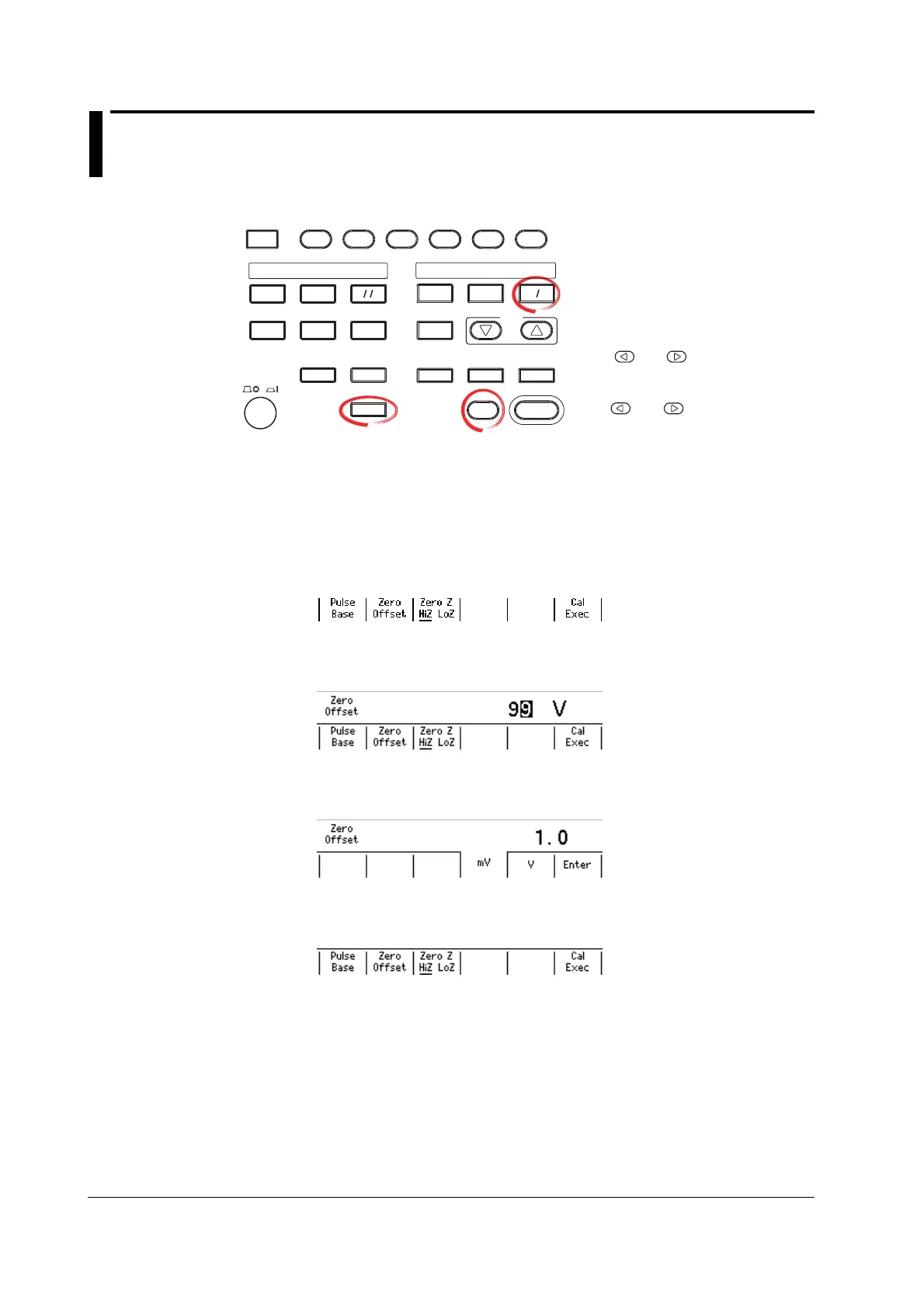

5.8 Zero Generation
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.
Zero Generation
Press ZERO when generating the signal or press the SHIFT+ZERO key when
the output is OFF to generate a zero level signal.
Setting the Zero Offset
1. Press SHIFT+VS/IS(SOURCE) to display the SOURCE menu.
2. Press the Zero Offset soft key.
3. Use the rotary knob or numeric keys and < and > keys to set the zero offset
voltage.
4. If you use the numeric keys, press a soft key corresponding to the desired unit
or the Enter soft key to confirm the setting.
Zero Source Impedance
5. Press the Zero Z soft key to select Hiz or Loz.
To Next Page
