14.5 Setting the RS-232 Interface
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.

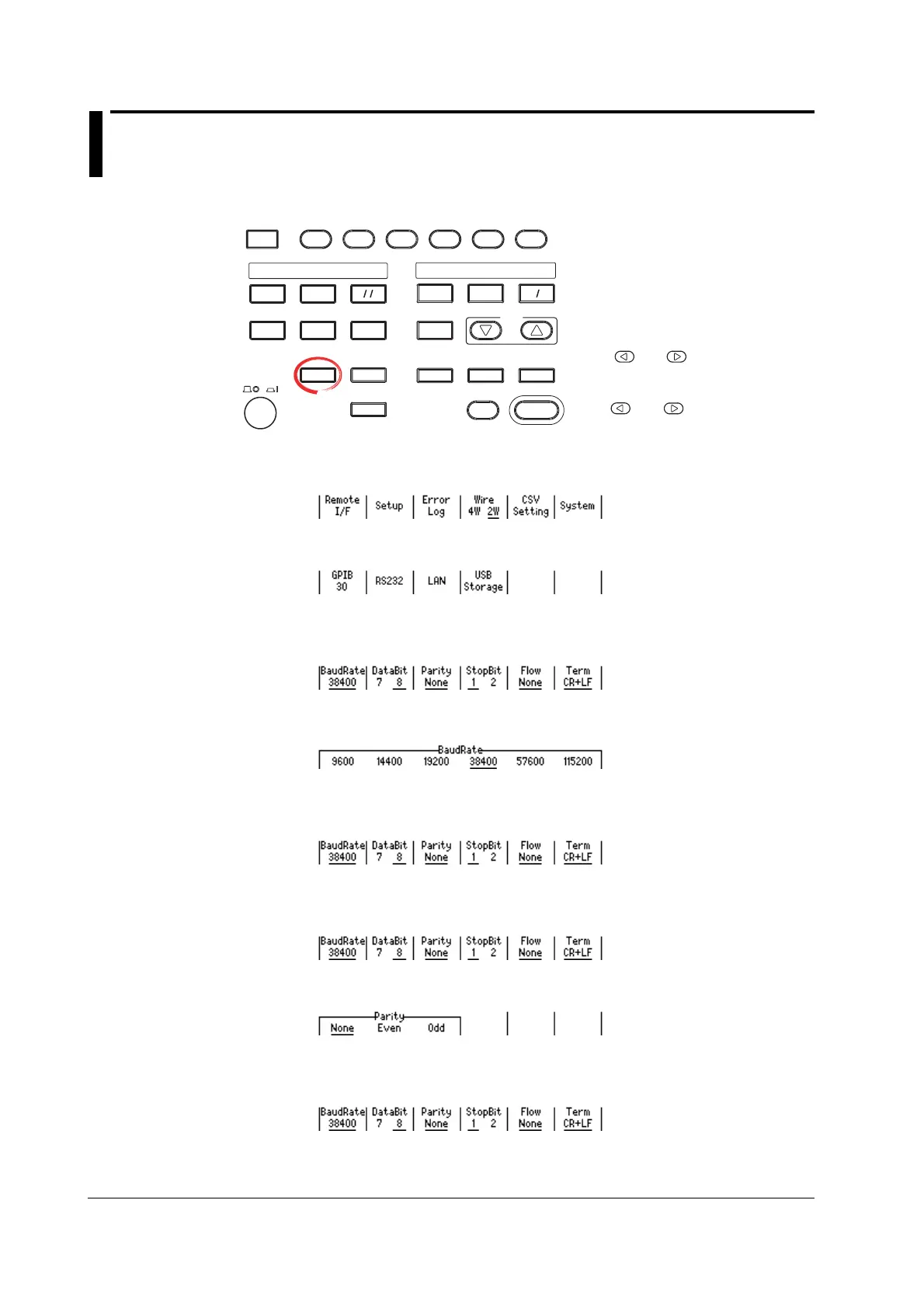

1. Press MISC to display the MISC menu.
2. Press the Remote I/F soft key to display the Remote I/F menu.
3. Press the RS232 soft key to display the RS-232 communication menu.
Selecting the Baud Rate
4. Press the BaudRate soft key to display the baud rate menu.
5. Press the soft key corresponding to the desired baud rate.
Selecting the Data Length
4. Press the DataBit soft key to select the data length.
Selecting the Parity
4. Press the Parity soft key to display the parity menu.
5. Press the soft key corresponding to the desired parity.
Selecting the Stop Bit
4. Press the StopBit soft key to select the stop bit.
