12-2
IM 765501-01E

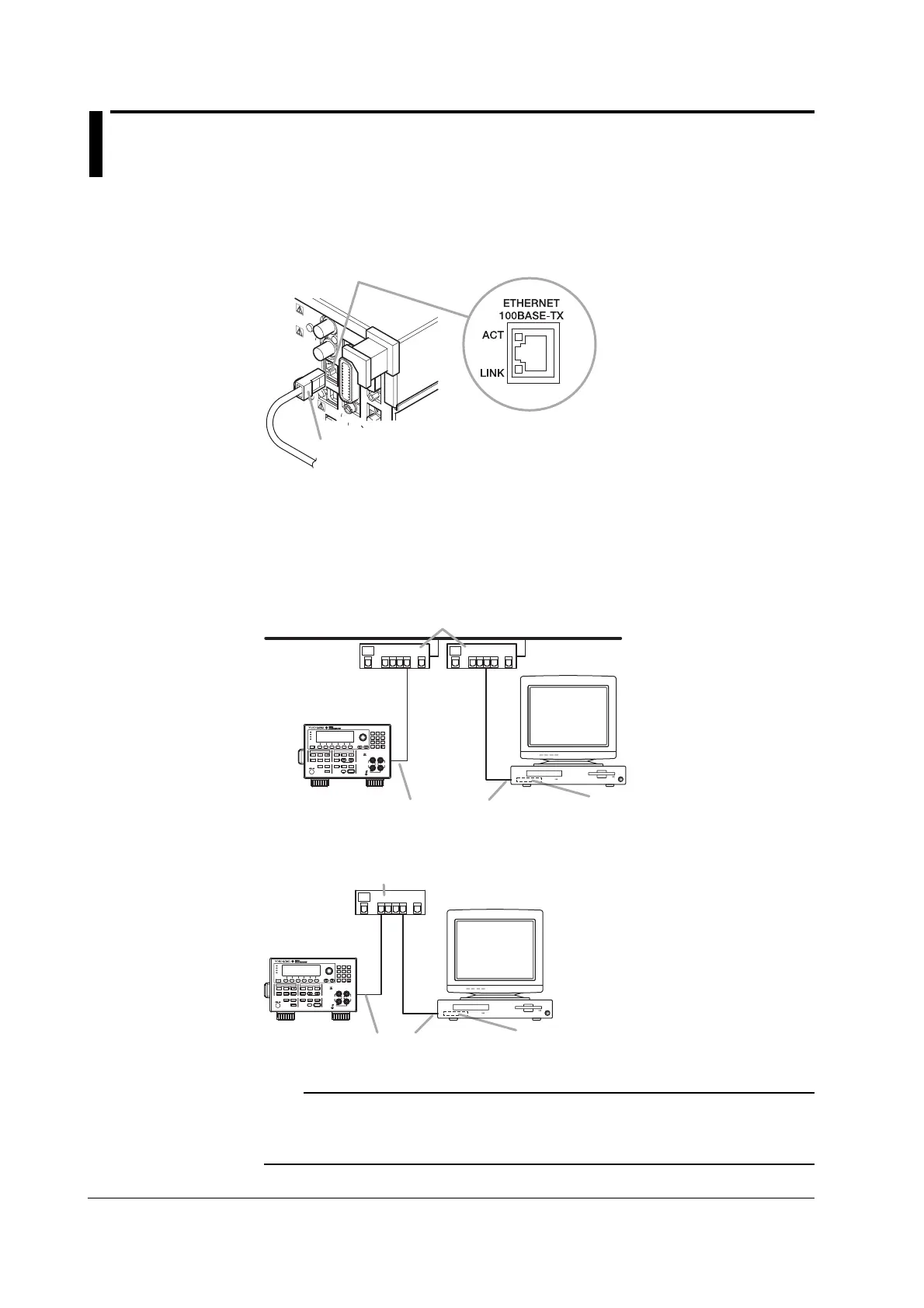

12.2 Connecting to the Network
Connect a UTP (Unshielded Twisted-Pair) cable or an STP (Shielded Twisted-Pair)
cable that is connected to a hub, for example, to the 100BASE-TX port on the rear panel
of the GS610.
RJ-45 modular jack
ETHERNET 100BASE-TX port
LINK indicator
Illuminates when the link between
the port on the GS610 and the
connected device is established and
communication is mutually possible.
ACT indicator
Blinks when packet transmission is in
progress.
TRIG IN
ARM IN
TRIG OUT
ETHERNET
100BASE
-TX
LINK
USB
100 - 120V
220 - 240V AC
200VA MAX
50
60Hz
GP-IB
(IEEE488)
Cable
Use either of the following cables to make the connection.
UTP (Unshielded Twisted-Pair) cable (category 5 or better)
STP (Shielded Twisted-Pair) cable (category 5 or better)
When Connecting to a PC on the Network
AVERAGE
4 WIRE
KEY LOCK
DISPLAY
ESC
MEASURE
STORE
AUTO
RANGE
MENU
REGALL
MATH
NULL
COMPARE
MEASURE
VALUE
REMOTE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
MODE
AUTO
RANGE
LIMIT
MENU
SOURCE
RANGE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
BS
SENSE
OUTPUT
Hi
110V
MAX
1V
MAX
110V
MAX
Lo
250V
MAX
789
456
123
0
.
+
-
GS610
Hub or router that supports 100BASE-TX
UTP cable or STP cable
(Straight cable)
Ethernet NIC
PC
When Making a One-to-One Connection with the PC
AVERAGE
4 WIRE
KEY LOCK
DISPLAY
ESC
MEASURE
STORE
AUTO
RANGE
MENU
REGALL
MATH
NULL
COMPARE
MEASURE
VALUE
REMOTE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
MODE
AUTO
RANGE
LIMIT
MENU
SOURCE
RANGE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
BS
SENSE
OUTPUT
Hi
110V
MAX
1V
MAX
110V
MAX
Lo
250V
MAX
789
456
123
0
.
+
-
GS610
Hub or router that supports 100BASE-TX
UTP cable or STP cable
(Straight cable)
Ethernet NIC
PC
Note
When using a UTP cable or STP cable (straight cable), be sure to use a category 5 or
better cable.
Avoid connecting the PC directly to the GS610 without going through the hub or router.
Operations are not guaranteed for communications using direct connection.
