11.3 Selecting the Settings Applied at Power ON
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.

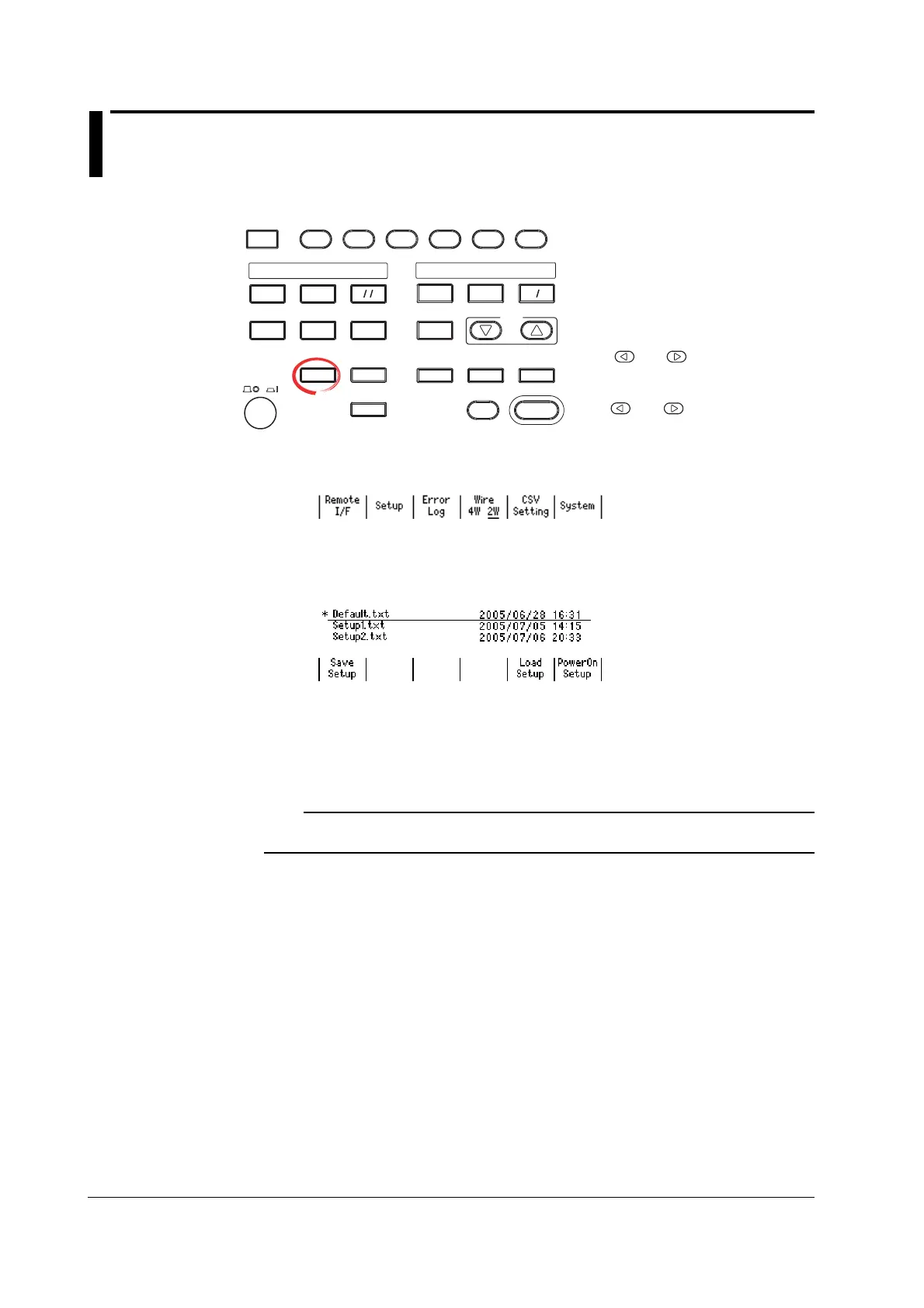

1. Press MISC to display the MISC menu.
2. Press the Setup soft key to display the Setup menu.
3. Use the rotary knob and < and > keys to select the setup file that is applied
when the GS610 is turned ON and press the PowerOnSetup soft key. An
asterisk is placed on the selected setup file.
Explanation
The setup files are the files (Setup1.txt to Setup4.txt) that are saved in section 11.1,
“Saving the Setup Data” and the factory default setup file (Default.txt). If you select
Default.txt, the settings are initialized each time the power is turned ON.
Note
The communication command “*RST” initializes settings other than the stored setup data,
communication parameters, and brightness (see section 16.2.3, “Common Commands”).
<<Corresponding Command Mnemonic>>
:SYSTem:SETup:PON
