YOKOGAWA 765501 User Manual

7-1
IM 765501-01E
Measurement
3
2
1
6
5
4
9
8
7
12
11
10
15
14
13
18
17
16
Index
App

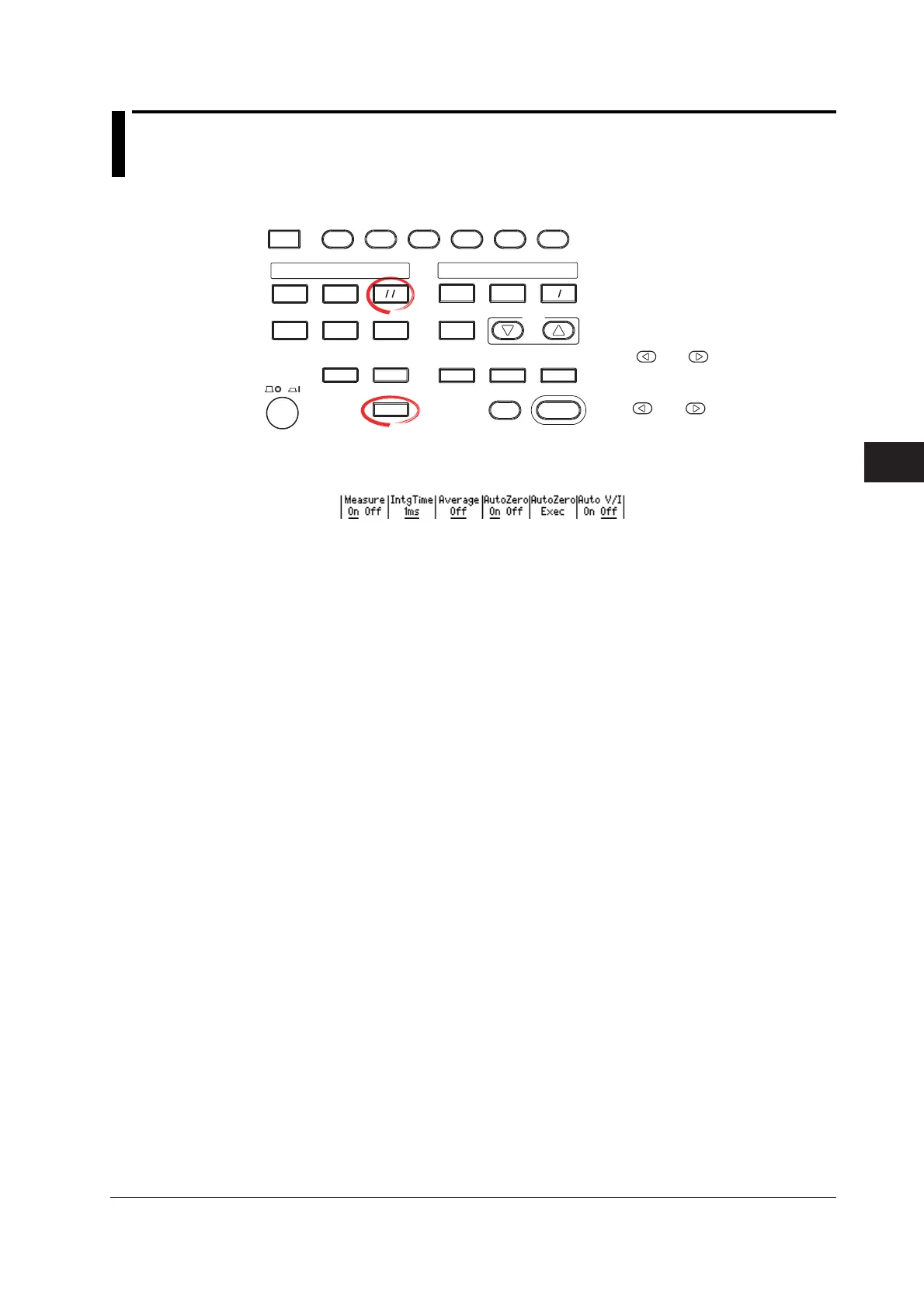

7.1 Turning the Measurement ON/OFF
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.
1. Press SHIFT+V/I/Ω(MEASURE) to display the Measure menu.
2. Press the Measure soft key to select ON (measure) or OFF (not measure).
Explanation
The default setting is ON (measure).
When turned OFF, the procedure related to measurement is not carried out. This
enables the source measure cycle to be shortened. If you need to change the source
level at high speeds such as a program sweep at a period time of 100 µs, turn the
measurement OFF.
<<Corresponding Command Mnemonic>>
:SENSe[:STATe]
Chapter 7 Measurement
