7-8 IM 765501-01E

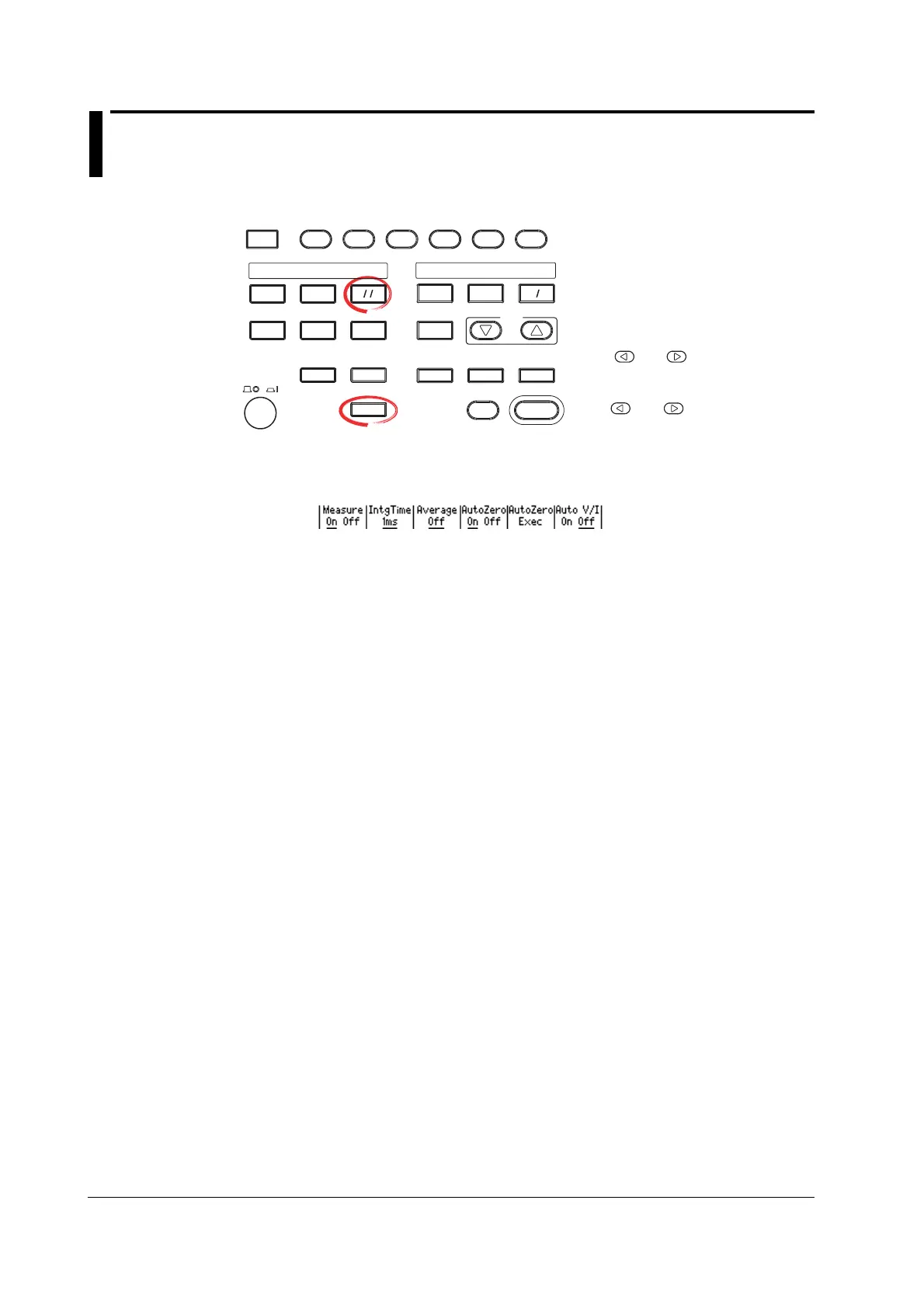

7.7 Turning Auto V/I ON/OFF
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
RECALL
DISPLAY
ESC
To exit the menu during operation, press
ESC at the upper left of the operation
panel.
In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.
1. Press SHIFT+V/I/(MEASURE) to display the Measure menu.
2. Press the Auto V/I soft key to select On or Off.
Explanation
When Auto V/I is turned ON, the measurement function switches when a limiter is
activated.
When Generating Voltage and Measuring Current
When the limiter is not activated: The GS610 measures current. The voltage source
level is entered for the source value in the result file
when the storage operation is carried out. (Normal
operation)
When the limiter is activated: The GS610 measures voltage. The current limiter
value is entered for the source value in the result
file when the storage operation is carried out.
When Generating Current and Measuring Voltage
When the limiter is not activated: The GS610 measures voltage. The current source
level is entered for the source value in the result file
when the storage operation is carried out. (Normal
operation)
When the limiter is activated: The GS610 measures current. The voltage limiter
value is entered for the source value in the result
file when the storage operation is carried out.
<<Corresponding Command Mnemonic>>
:SENSe:ACHange
