9.1 Storing the Measured Results
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.

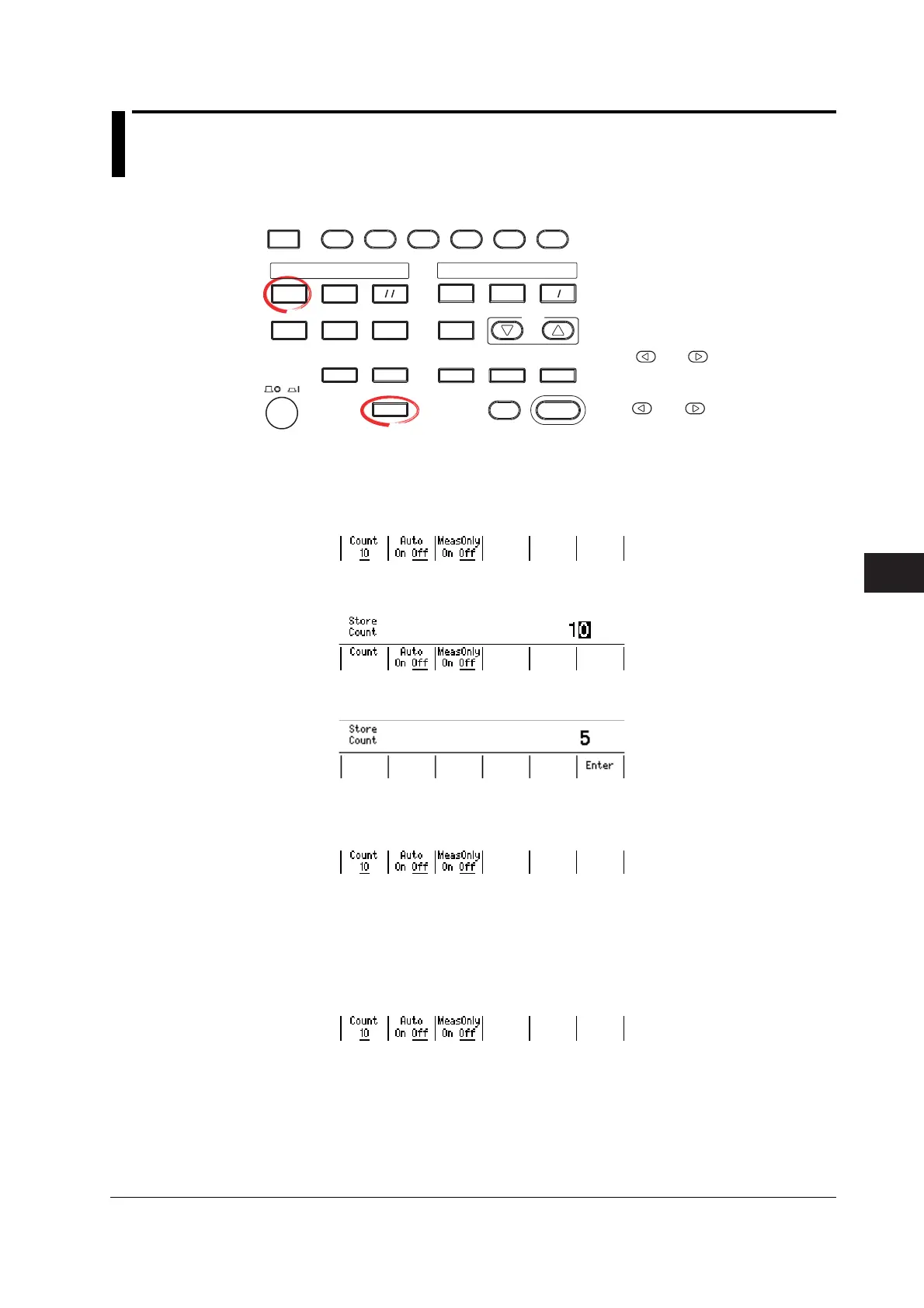

1. Press SHIFT+STORE(MENU) to display the Store menu.
Setting the Store Count
2. Press the Count soft key to display the store count setup screen.
3. Use the rotary knob or numeric keys and < and > keys to set the store count.
4. If you use the numeric keys, press the Enter soft key to confirm the setting.
Turning Auto Storage ON/OFF
5. Press the Auto soft key to select On or Off.
Turning Measurement-Only ON/OFF
6. Press the MeasOnly soft key to select On or Off.
When measurement-only is turned ON, only the data when the measurement is ON is
stored. For example, only the data when measurement is ON can be stored, if
measurement ON/OFF is switched during a program sweep. Turn measurement-only ON
if you want to output only the lines that contain measured data in the result file.
Starting the Storage Operation
7. Press STORE. The storage operation starts and the STORE key illuminates.
Stopping the Storage Operation
8. Pressing STORE again after the storage operation is started stops the
operation. The STORE key turns OFF.
Chapter 9 Storing Measured Results and Recalling Statistical Computation Values
To Next Page
