11.1 Saving the Setup Data
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.

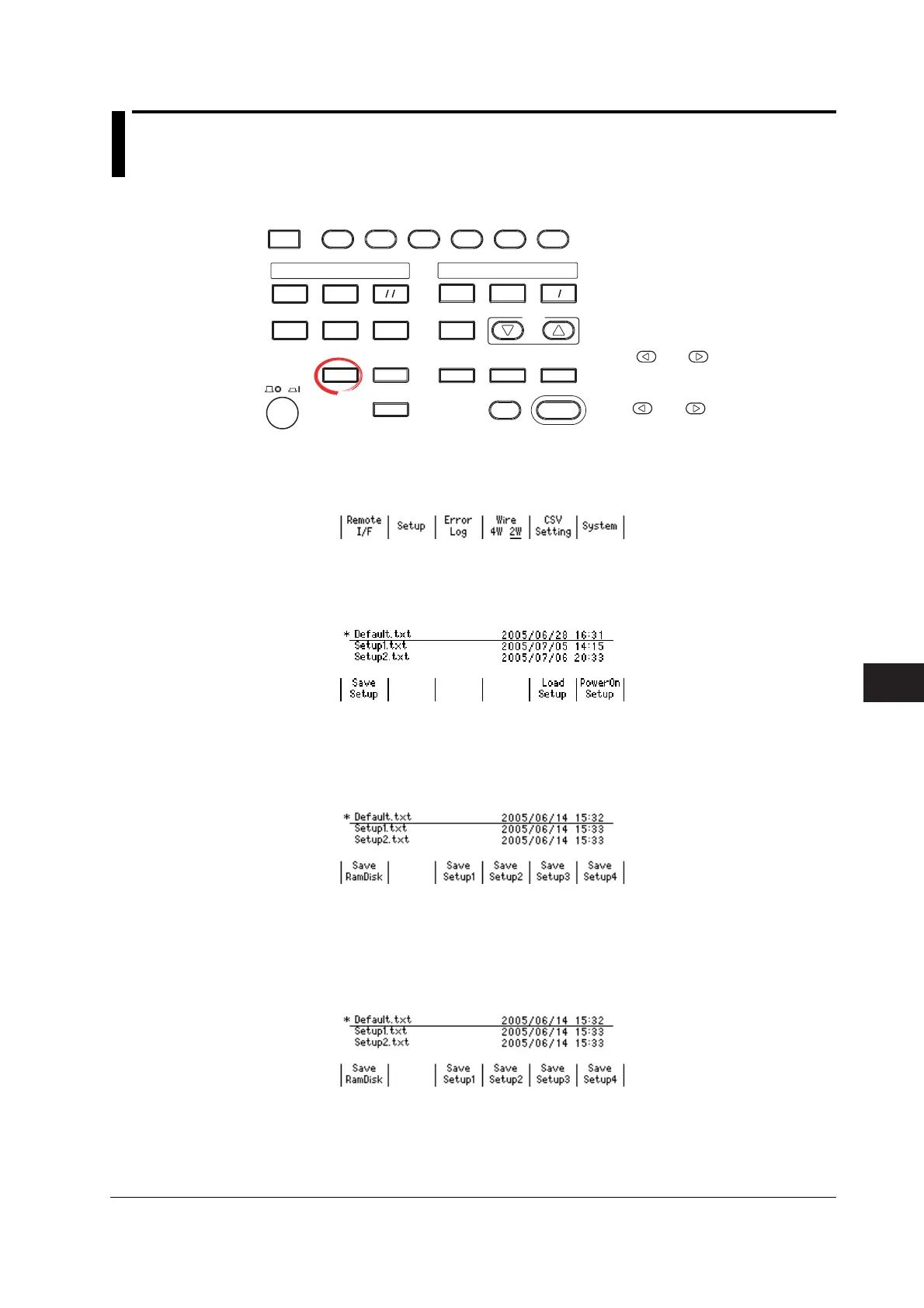

1. Press MISC to display the MISC menu.
2. Press the Setup soft key. The files that are currently saved and the Setup
menu is displayed.
3. Press the Save Setup soft key. The menu (SaveRamDisk) for saving to the
volatile disk (GS610RAM) and the menu (Save Setup1 to Save Setup4) for
saving to the non-volatile disk (GS610ROM) are displayed.
Saving to the Volatile Disk (GS610RAM)
4. Press the SaveRamDisk soft key. The SaveRamDisk soft key blinks while the
save operation is in progress. When the save operation completes, the menu
shown in step 2 appears.
Saving to the Non-Volatile Disk (GS610ROM)
4. Press the soft key corresponding to the desired setup number from Save
Setup1 to Save Setup4. The soft key that you pressed blinks while the save
operation is in progress. When the save operation completes, the menu shown
in step 2 appears.
