8.1 Averaging
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.

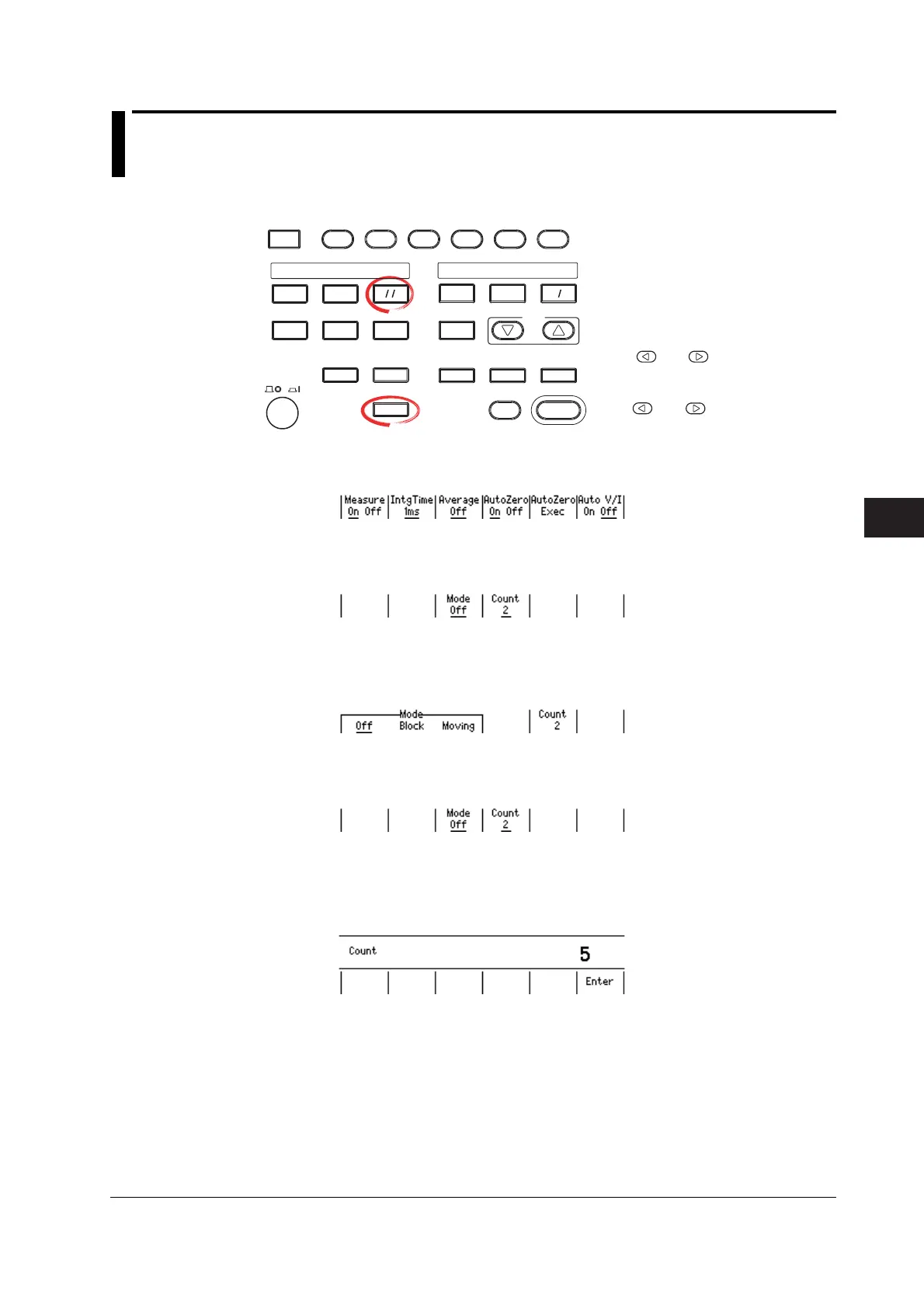

1. Press SHIFT+V/I/Ω(MEASURE) to display the Measure menu.
2. Press the Average soft key to display the Average menu.
Selecting the Averaging Mode
3. Press the Mode soft key to display the averaging mode menu.
4. Press the soft key corresponding to the desired averaging mode. If you select
Off, averaging is disabled. If the averaging mode is set to Block or Moving, the
averaging indicator to the left of the display illuminates.
Setting the Average Count
5. Press the Count soft key.
6. Use the rotary knob or numeric keys and < and > keys to set the average
count.
7. If you use the numeric keys, press the Enter soft key to confirm the setting.
