6.4 Setting the Repeat Count
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
RECALL
DISPLAY
ESC
To exit the menu during operation, press
ESC at the upper left of the operation
panel.
In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.

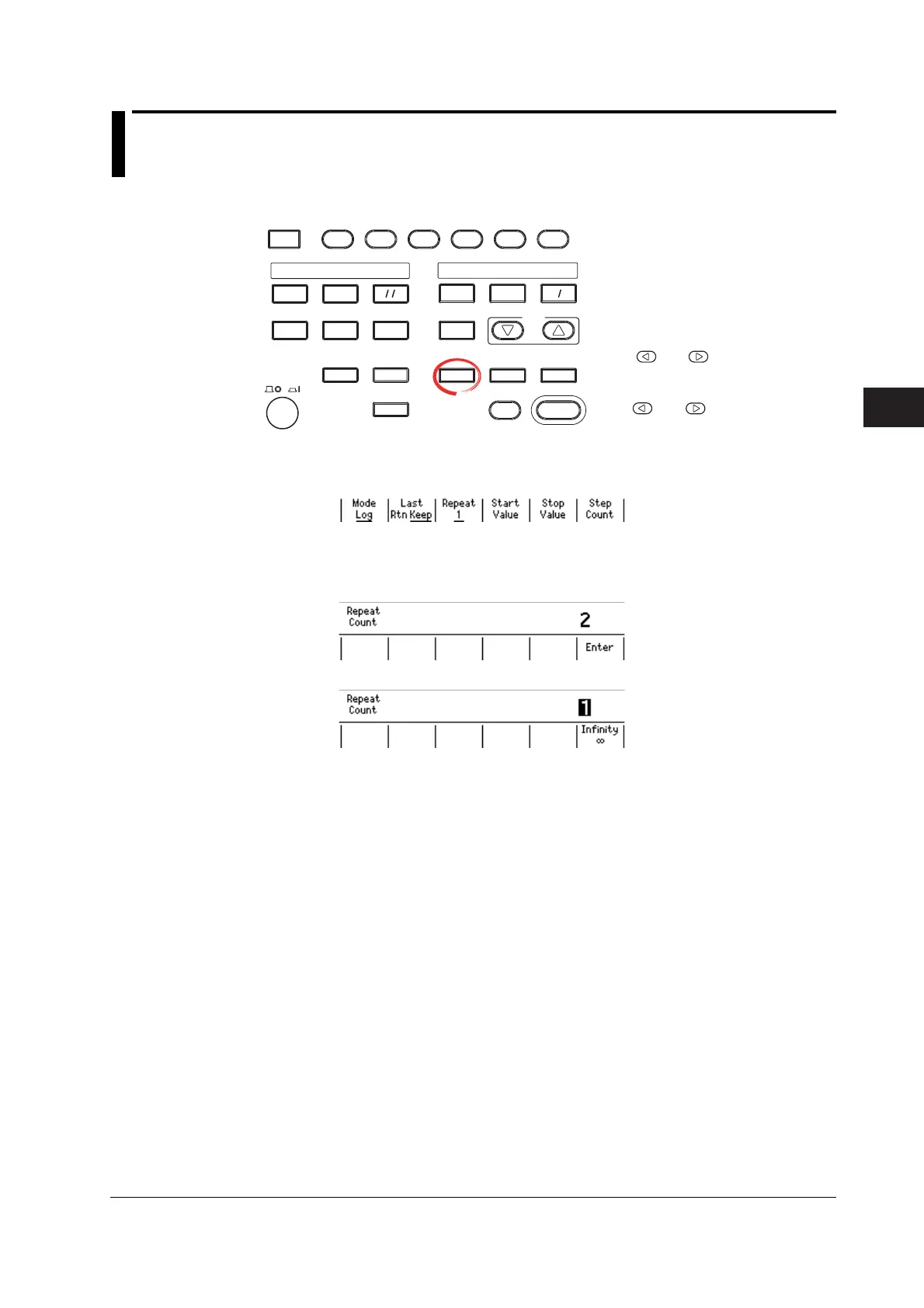

1. Press SWEEP to display the SWEEP menu.
2. Press the Repeat soft key.
3. Use the rotary knob or numeric keys and < and > keys to set the repeat
count. Press the Infinity soft key to select infinity ().
When the value is entered directly with the numeric keys
When the value is set with the rotary knob
4. Enter 0 with the numeric key and press the Enter soft key to select infinity ().
Explanation
Sweep Repeat Count
Set the value in the range from 1 to 1000. If 0 is specified, infinity () is selected. After
the sweep operation is started, the operation repeats until the sweep or output is turned
OFF.
<<Corresponding Command Mnemonic>>
:SWEep:COUNt
