7-7
IM 765501-01E
Measurement
3
2
1
6
5
4
9
8
7
12
11
10
15
14
13
18
17
16
Index
App

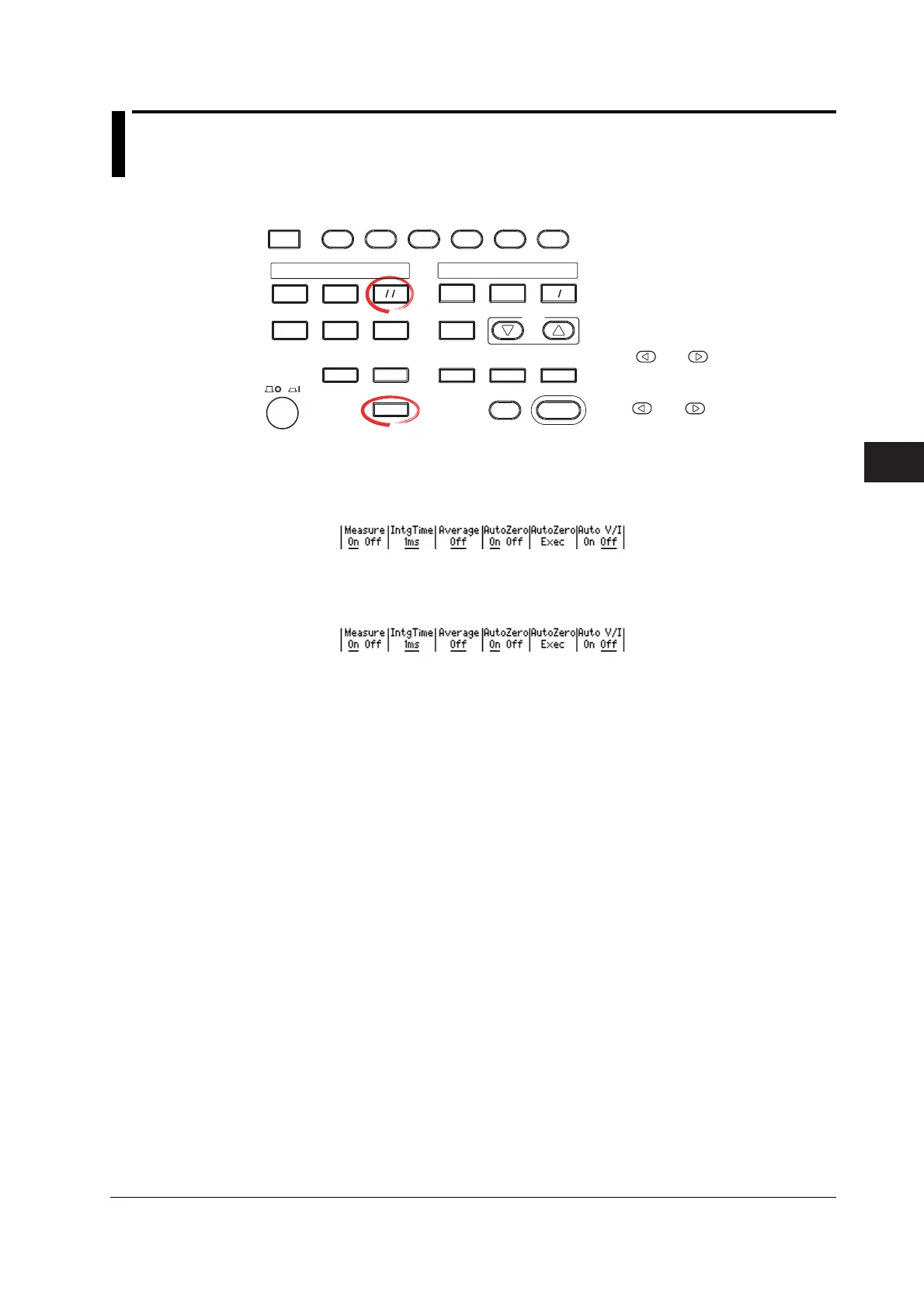

7.6 Auto Zero Function
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
RECALL
DISPLAY
ESC
To exit the menu during operation, press
ESC at the upper left of the operation
panel.
In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.
Turning the Auto Zero Function ON/OFF
1. Press SHIFT+V/I/(MEASURE) to display the Measure menu.
2. Press the Auto Zero soft key to select On or Off.
Executing the Auto Zero Function
3. Press the Auto Zero Exec soft key to execute the auto zero function.
Explanation
Auto Zero Function
•On
Enables the auto zero function. The GS610 measures the internal zero point for each
measurement. The measured result is obtained by subtracting this value from the
measured value canceling the offset drift of the measurement circuit in the GS610.
However, the measurement takes approximately twice as long as when the auto zero
function is OFF, because the GS610 measures twice.
Off
Disables the auto zero function. The GS610 carries out only the measurement of the
DUT. The measurement time is approximately half the time as when the auto zero
function is turned ON.
<<Corresponding Command Mnemonic>>
:SENSe:AZERo[:STATe]
:SENSe:AZERo:EXECute
