3-14 IM 765501-01E
3.6 Setting the Power Frequency
Procedure
To exit the menu during operation, press
ESC at the upper left of the operation
panel.
In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
RECALL
DISPLAY
ESC

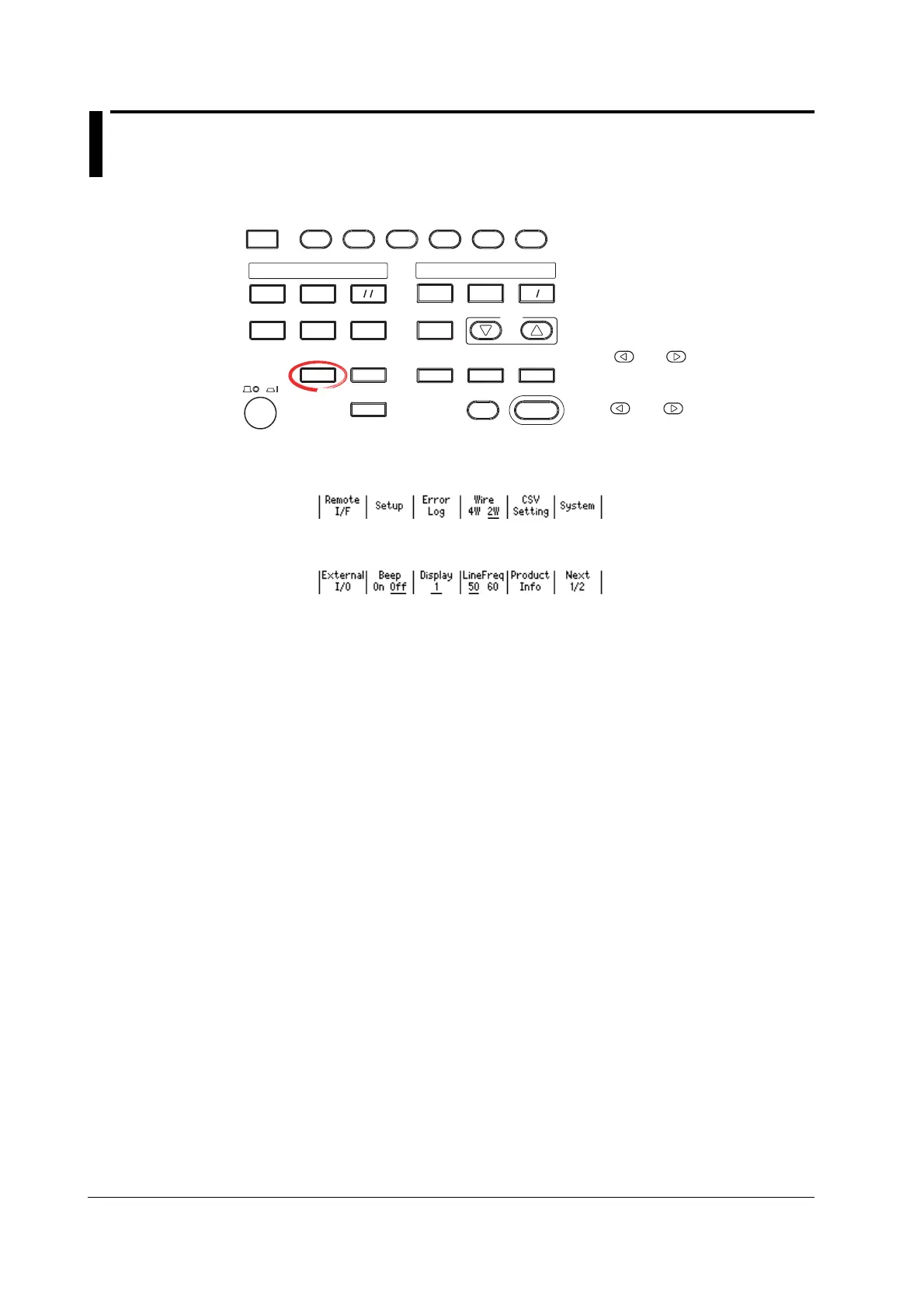

1. Press MISC to display the MISC menu.
2. Press the soft key to display the System menu.
3. Press the LineFreq soft key to select 50 or 60.
Explanation
The power frequency of the GS610 is automatically selected when the power is turned
ON. Usually, it does not need to be changed.
The value corresponding to 1 period of the frequency (20 ms or 16.6 ms) in the
integration time (see section 7.5, “Setting the Integration Time”) varies depending on the
selected power frequency
<<Corresponding Command Mnemonic>>
:SYSTem:LFRequency
