17.3 Self Test
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.

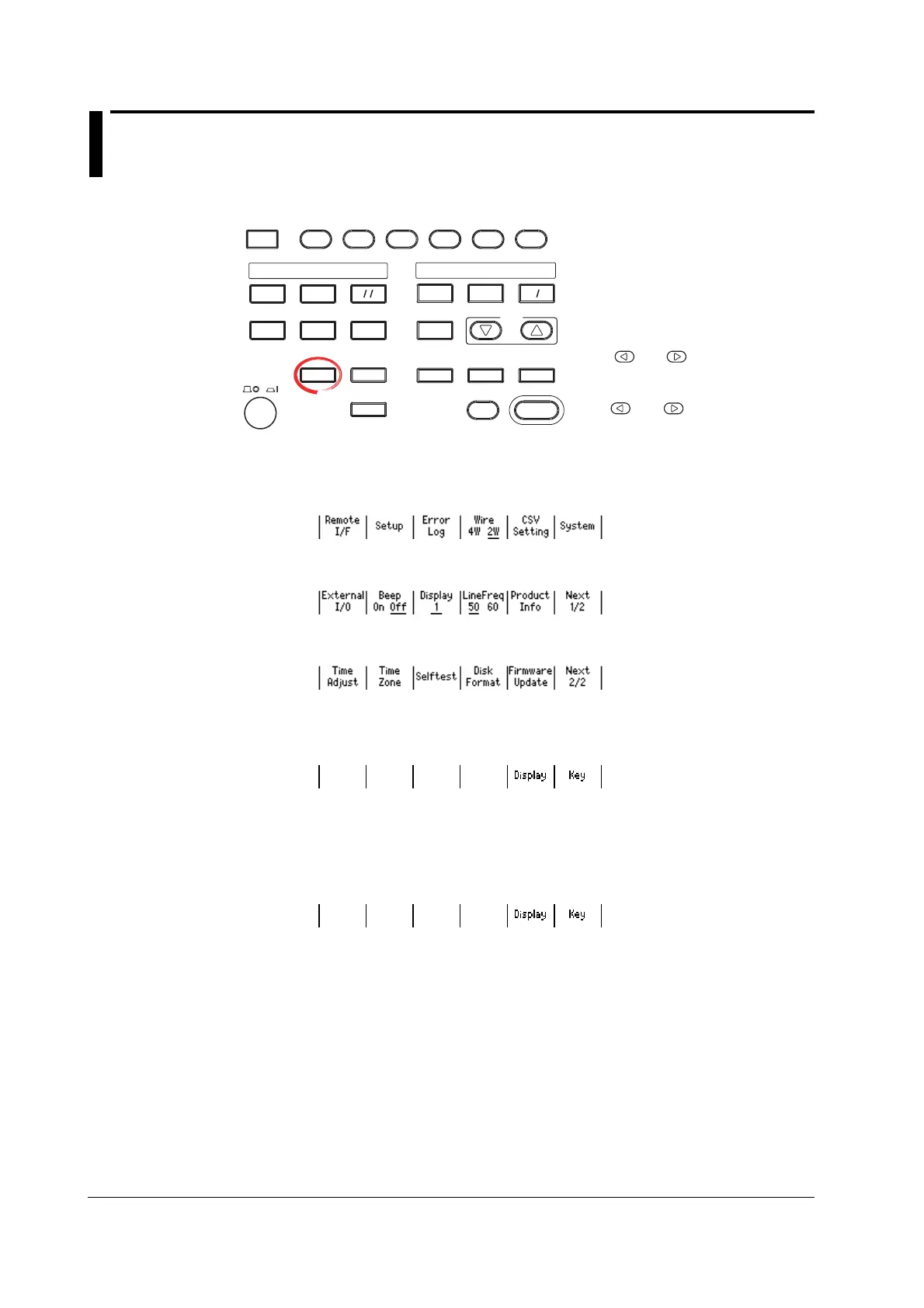

Displaying the Self Test Menu
1. Press MISC to display the MISC menu.
2. Press the System soft key.
3. Press the Next 1/2 soft key.
4. Press the Selftest soft key.
Executing the Display Test
5. Press the Display soft key. The entire display illuminates.
6. To end the test, press ESC.
Executing the Key Test
5. Press the Key soft key.
6. Press each key and check that the name of the respective key is displayed.
7. To end the test, press ESC twice.
