5.3 Setting the Limiter

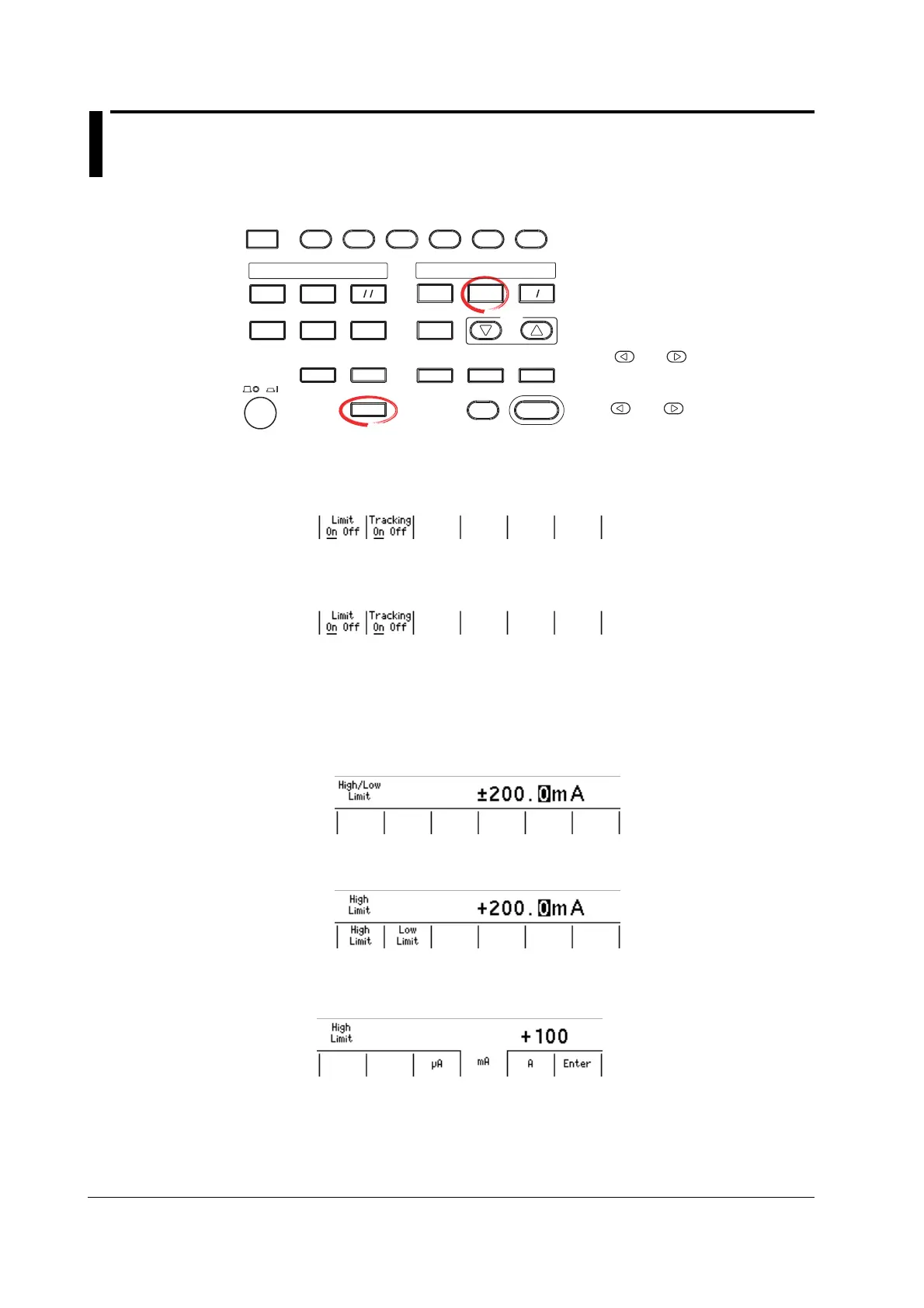

Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.
Turning the Limiter ON/OFF
1. Press SHIFT+LIMIT (MENU) to display the limiter setup menu.
2. Press the Limit soft key to turn the limiter ON or OFF.
Turning the Tracking ON/OFF
3. Press the Tracking soft key to turn the tracking function ON or OFF.
Setting the Limiter Value
4. Press LIMIT to display the limiter value setup screen.
5. Use the rotary knob or numeric keys and < and > keys to set the limiter
value.
If tracking is turned ON in step 3, the high and low limiter values can be set
simultaneously.
If tracking is turned OFF in step 3, the high and low limiter values can be set
separately.
6. If you set the limiter value using the numeric keys, press the desired unit or the
Enter soft key.
