YOKOGAWA 765501 User Manual

6-1
IM 765501-01E
Sweep
3
2
1
6
5
4
9
8
7
12
11
10
15
14
13
18
17
16
Index
App

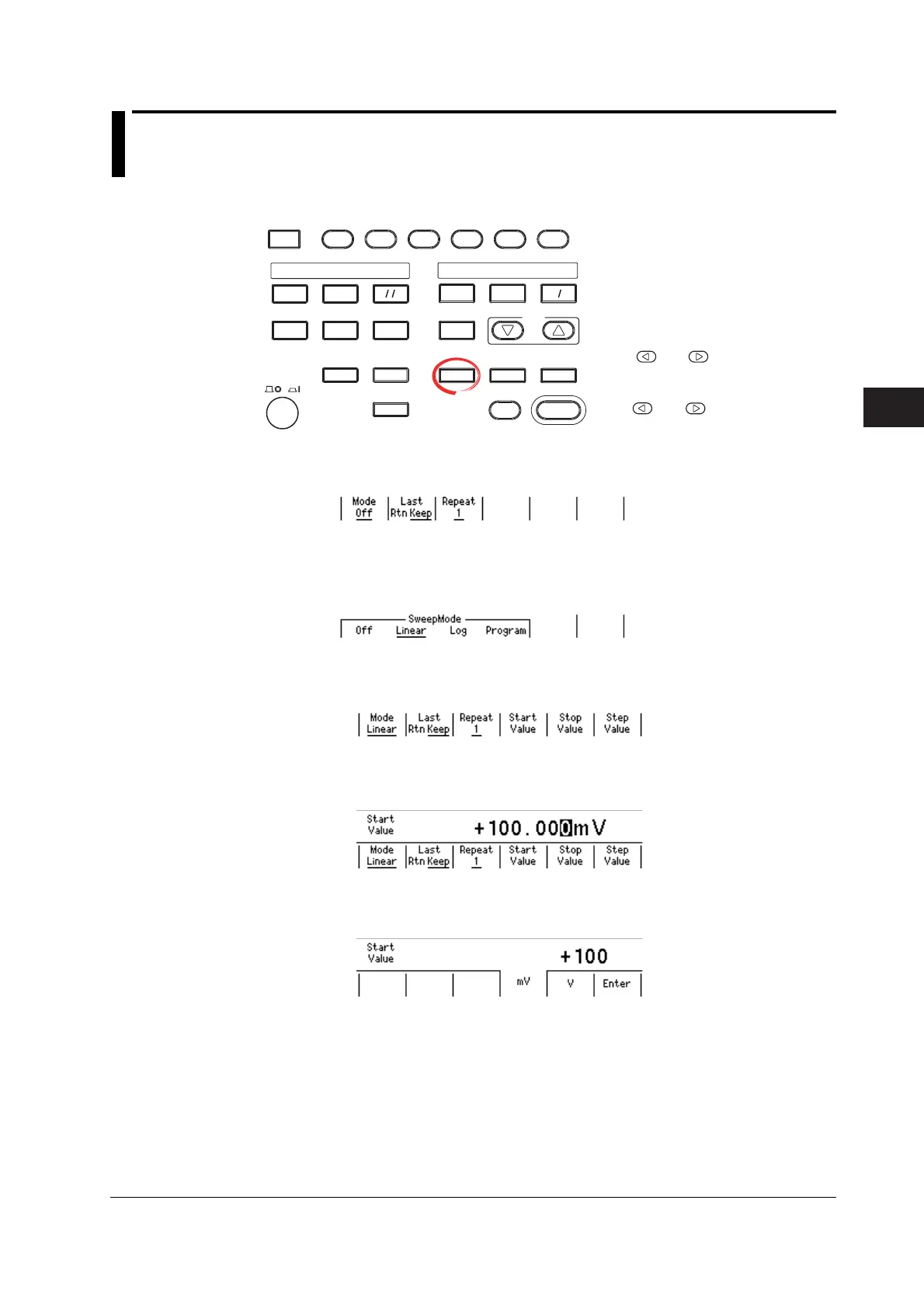

6.1 Setting the Linear or Log Sweep
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
Ω
RECALL
DISPLAY
ESC
• To exit the menu during operation, press
ESC at the upper left of the operation
panel.
• In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >” are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.
1. Press SWEEP to display the SWEEP menu.
2. Press the Mode soft key to display the SWEEP mode menu.
Setting the Linear Sweep
3. Press the Linear soft key. The SWEEP key illuminates. If you select Off, the
key turns OFF.
Setting the Start Value
4. Press the Start Value soft key.
5. Use the rotary knob or numeric keys and < and > keys to set the start
value.
6. If you use the numeric keys, press a soft key corresponding to the desired
unit or the Enter soft key to confirm the setting.
Chapter 6 Sweep
