11.2 Loading the Setup Data
Procedure
MEASURE
STORE
AUTO
RANGE
MENU
MATH
NULL
COMPARE
MEASURE
VALUE
LOCAL
POWER
MISC
TIME
KEY LOCK
SHIFT
V
I
MODE
AUTO
RANGE
LIMIT
VS IS
MENU
SOURCE
OUTPUT CONTROL
SWEEP
START
ZERO
SOURCE
TRIG
MODE
OUTPUT
RANGE
RECALL
DISPLAY
ESC
To exit the menu during operation, press
ESC at the upper left of the operation
panel.
In the procedural explanation below, the
phrase “rotary knob, numeric keys, <,
and >are used to refer to the operation
of selecting or setting items or entering
values using the rotary knob, numeric
keys, , and keys (BS key and
right arrow key). For details on the
operation using the rotary knob, numeric
keys, , and , see sections 3.8 or
3.9.

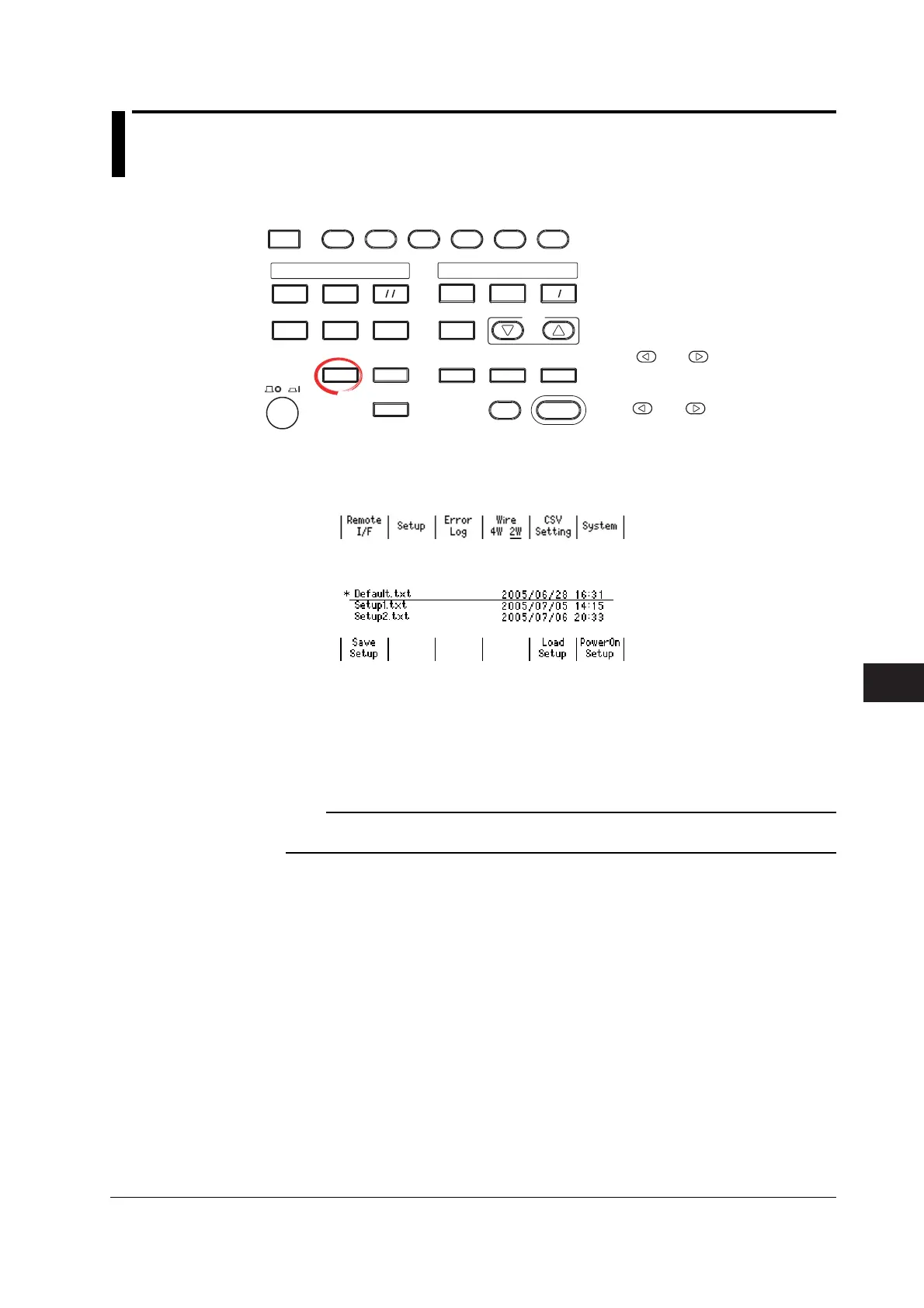

1. Press MISC to display the MISC menu.
2. Press the Setup soft key. The files that are currently saved and the Setup
menu is displayed.
3. Use the rotary knob and < and > keys to select the setup file to be loaded.
4. Press the Load Setup soft key. The setup file is loaded, and the display returns
to the numeric display.
Explanation
A saved setup file can be loaded to restore the settings.
Note
The GS610 is set to the factory default settings if the Default.txt file is loaded. For details on
the Default.txt file, see appendix 3, “Contents of the Factory Default Setup File (Default.txt).”
<<Corresponding Command Mnemonic>>
:SYSTem:SETup:LOAD
*RCL
*RST (reset to the factory default settings)
