8-2 IM 765501-01E

Explanation

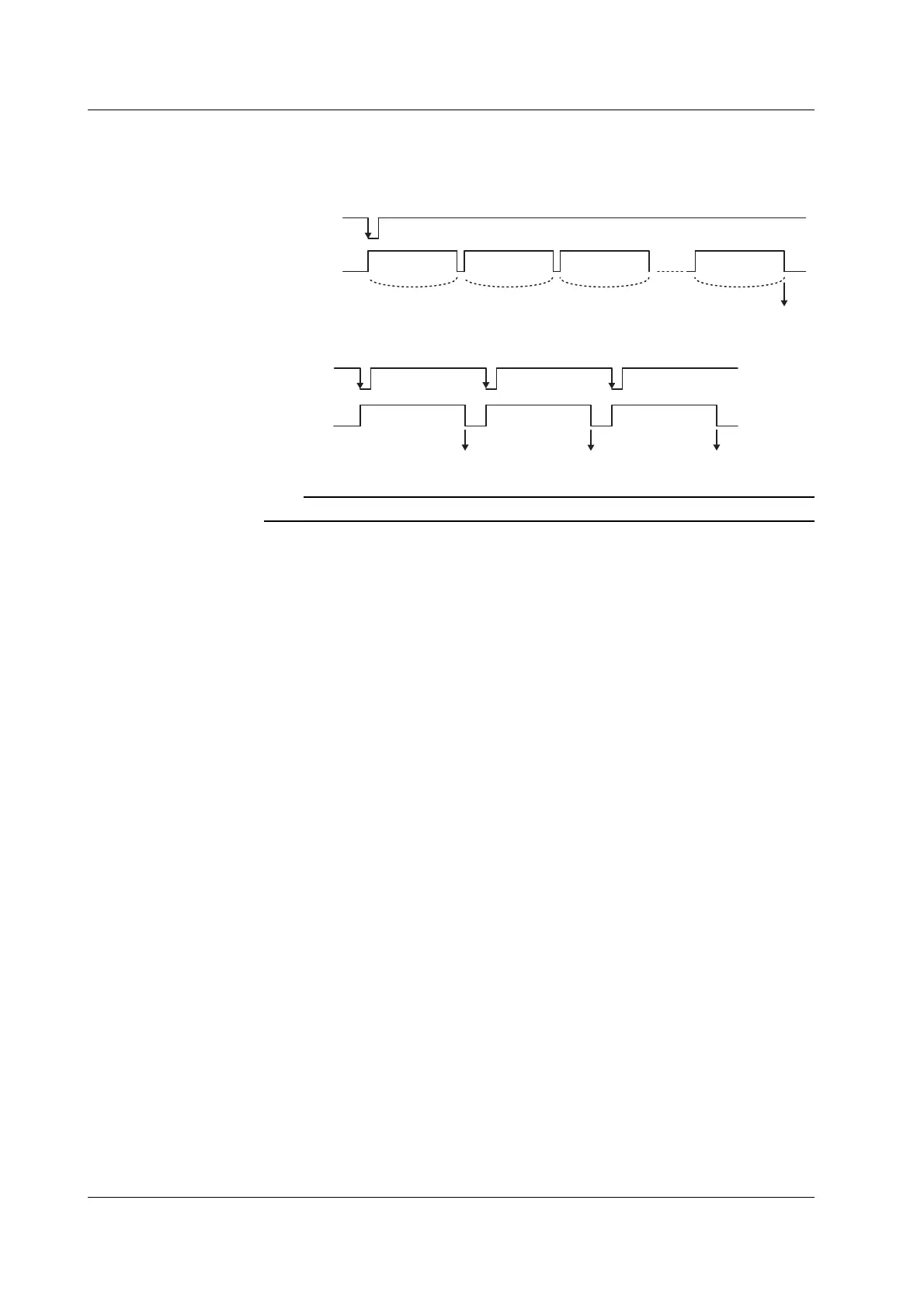

Averaging Mode

The following averaging modes are available.

Block: Block Average

Source

measure cycle

Source

measure cycle

Source

measure cycle

Source

measure cycle

Trigger

Int or Ext

Output

nth time

Moving: Moving Average

Trigger

Int or Ext

Source measure

cycle

Source measure

cycle

Source measure

cycle

Output Output Output

Note

The block average only works in DC source mode. In pulse source mode, an error occurs.

Setting the Average Count

Set the value in the range from 1 to 256.

<<Corresponding Command Mnemonic>>

:SENSe:AVERage[:STATe]

:SENSe:AVERage:MODE

:SENSe:AVERage:COUNt
