9-3
IM 701510-01E
Performing a GO/NO-GO Action
9
Saving the determination zone

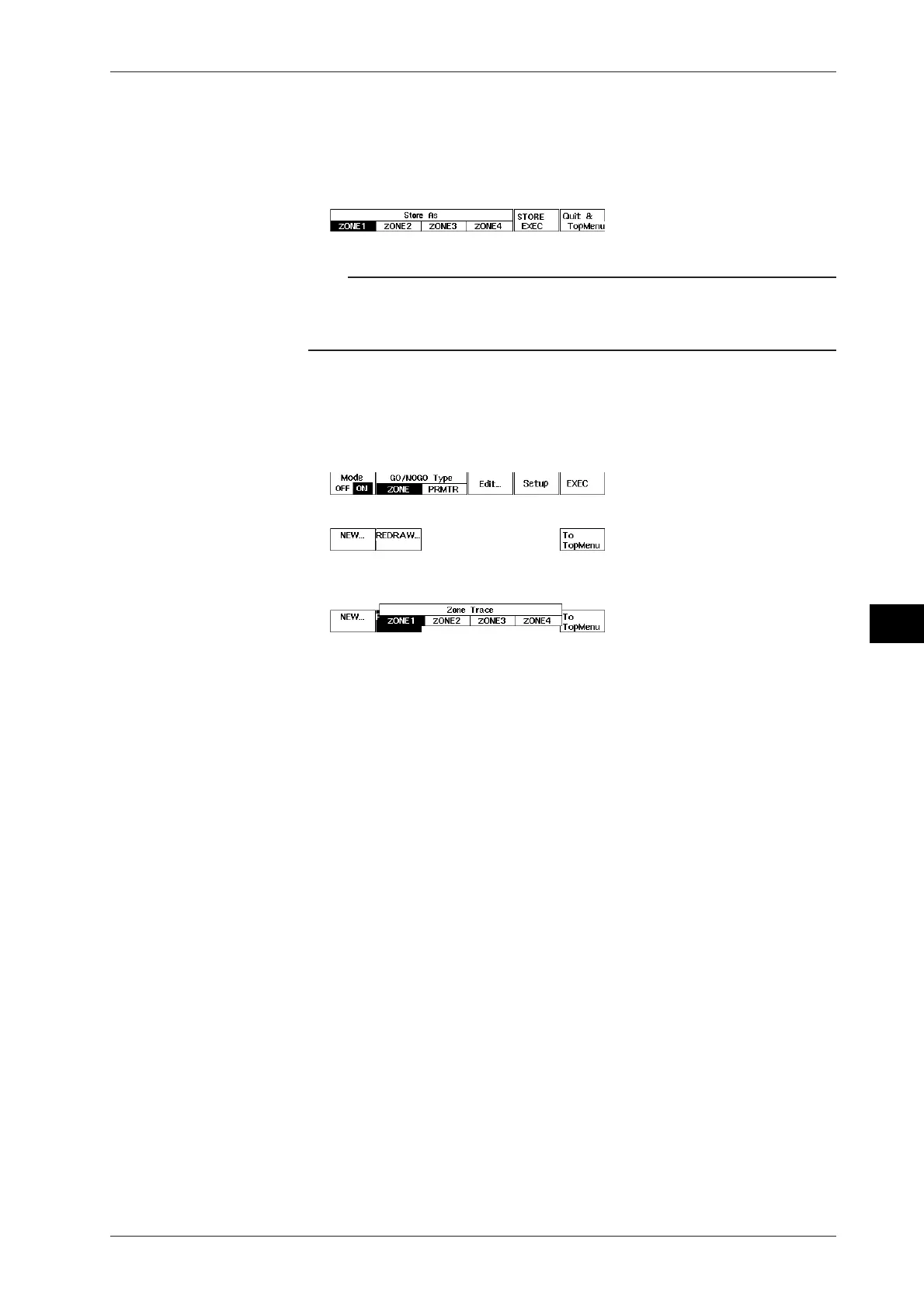

15. Select the field where the determination zone will be saved by pressing any of the
“ZONE1 - ZONE4” soft keys. The determination waveforms which have been saved in
ZONE1, ZONE2, ZONE3 and ZONE4 can only be applied to trace1, 2, 3 (or MATH),
and 4 respectively. “ZONE4” is not provided with DL1520/DL1520L.
16. Execute saving by pressing the “STORE EXEC” soft key.
Note
The determination waveforms are saved in the internal memory. Old determination waveforms which are
already present in the internal memory, will be overwritten when new ones will be saved. An error
message will not appear. Therefore, verify before saving whether or not determination waveforms already
exist in the internal memory. Refer to steps 18 to 20.
17. Return to the GO/NO-GO top menu by pressing the “Quit & TopMenu” soft key.
Redrawing/editing the saved determination zone
18. Press the “Edit...” soft key of the GO/NO-GO top menu. The zone creation menu will
appear.
19. Press the “REDRAW...” soft key and the zone trace menu will appear.
20. Press the soft key corresponding to the desired zone you want to redraw. The saved
determination zone will appear. “ZONE4” is not provided with DL1520/DL1520L.
21. To edit the redrawn zone, repeat steps 7 to 14 on the previous page.
22. To save the edited redrawn zone, repeat steps 15 to 17.
9.1 Judging using a Waveform Zone
To Next Page
