9-9
IM 701510-01E
Performing a GO/NO-GO Action
9
Setting the determination conditions
Parameter setup
5. Press the “Setup” soft key of the GO/NO-GO top menu. The parameter menu will
appear.
6. After having selected the “Mode” setting using the rotary knob, press the SELECT
key to select “ON”. Pressing the key once more results in selecting “OFF”.
7. After having selected the “Trace” setting using the rotary knob, press the SELECT
key to select the trace used for measurement. Selectable from “1” to “4” (for DL1520/
DL1520L, 1/2/Math).
8. After having selected the “Item” setting using the rotary knob, press the SELECT key
to display the parameter setting screen.

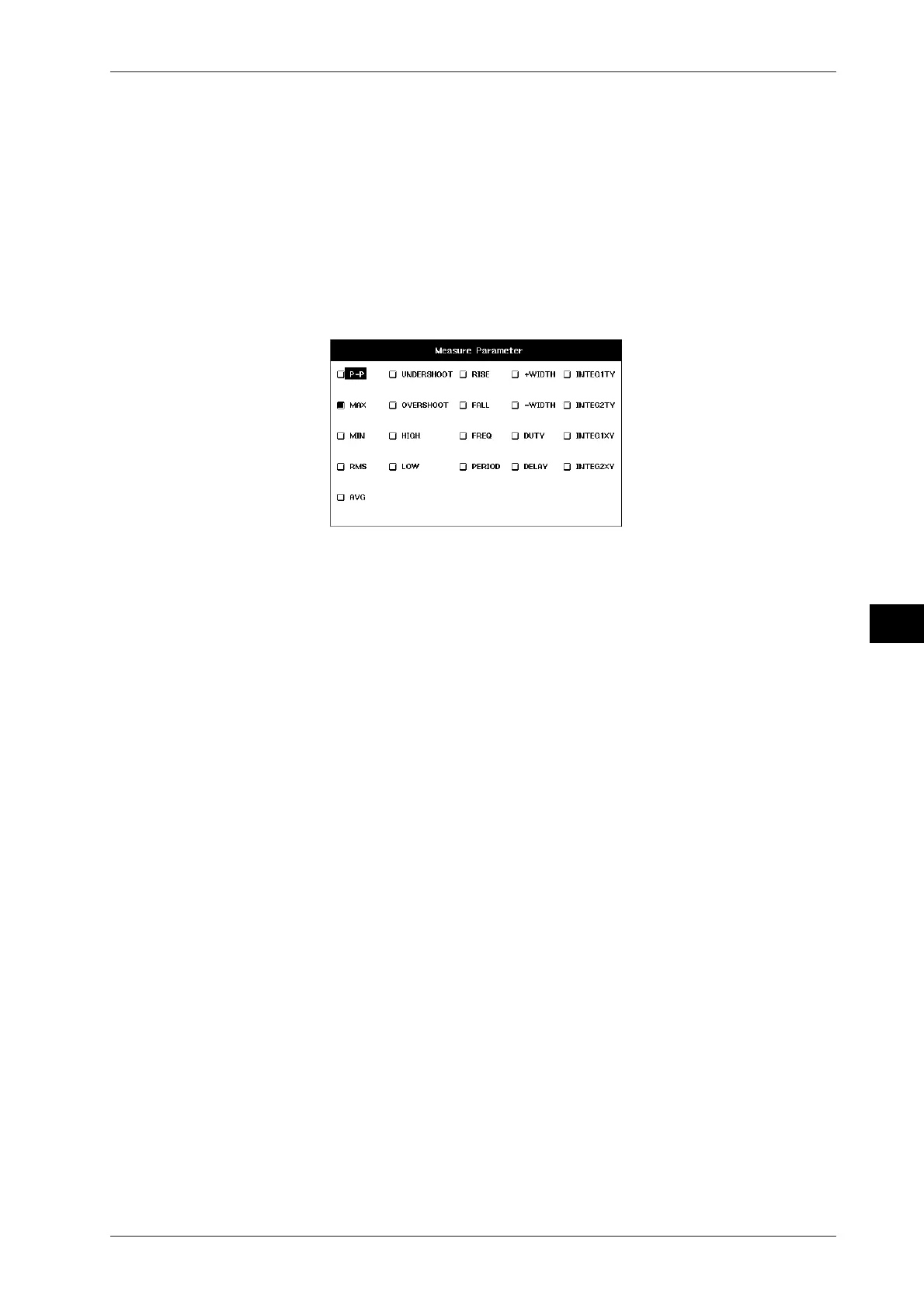

9. Use the rotary knob to select the parameter of measurement. Press the SELECT key,
the setting screen will disappear, and the setting will be shown at the “Item” setting.
10. After having selected the “Upper” setting using the rotary knob, press the SHIFT +
MISC (KEYBOARD key to display the keyboard.
11. Use the keyboard to enter the desired value. For details concerning operation of the
keyboard, refer to page 4-7.
12. After having selected the “Lower” setting using the rotary knob, press the SHIFT +
MISC (KEYBOARD key to display the keyboard.
13. Use the keyboard to enter the desired value. For details concerning operation of the
keyboard, refer to page 4-7.
14. After having selected the “Condition” setting using the rotary knob, press the
SELECT key to select the condition setting. When the condition is met, “NO-GO” will
result.
“OUT” : The value of the measurement parameter lies outside the values determined
by the Upper and Lower values.
“IN” : The value of the measurement parameter lies inside the values determined by
the Upper and Lower values.
15. Repeat steps 6 to 14 until the parameter setup has been completed.
Determination Logic
16. After having selected the “Logic” setting using the rotary knob, press the SELECT
key to select the desired condition. When the condition is met, “NO-GO” will result.
“AND” : All determinations are “NO-GO”;
“IN” : Any of the determination is “NO-GO”.
Sequence determination
17. After having selected the “Sequence” setting on using the rotary knob, press the
SELECT key to select the desired sequence. The following types can be selected.
“SINGLE” : Stops determination when a “NO-GO” determination is made;
“CONTINUE” : Carries out determination repeatedly until the “ABORT” soft key is
pressed.
9.2 Judging using Measured Values of Waveform Parameters
