9-10
IM 701510-01E
Setting action after determination
18. After having selected the “Action” setting using the rotary knob, press the SELECT
key to select the desired action. After a “NO-GO” determination, the data can be
recorded in the following manners.
“NONE” : No action;
“PRINT” : A hardcopy of the screen will be printed out on the built-in printer;
“FD(P-P)” : All waveforms displayed on the screen will be saved to the floppy disk
as P-P compressed data;
“FD(ACQ)” : Acquisition data of all waveforms displayed on the screen will be saved
to the floppy disk as binary data.
19. After having selected either “FD(P-P)” or “FD(ACQ)”, move to the
“FileName”setting and press the SELECT key. The keyboard will be displayed. After
having selected either “NONE” or “PRINT”, continue with step 21.
20. Use the keyboard to enter the name of the file. The entered filename will be displayed at
the “FileName”setting. For details how to operate the keyboard, refer to page 4-8.
Returning to the top menu
21. Return to the GO/NO-GO top menu by pressing the ESC key.

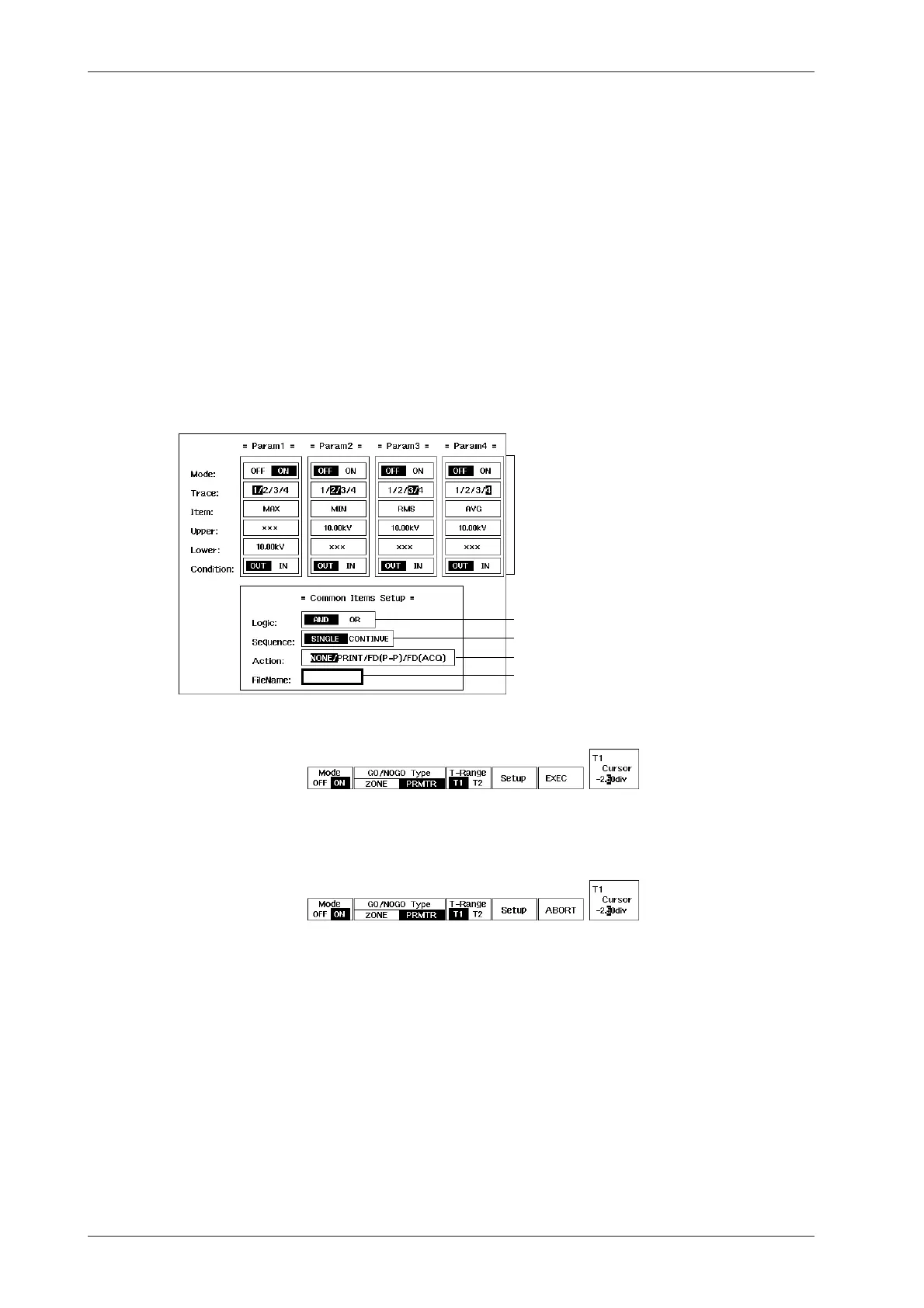

Sets determination conditions for each parameter
(For DL1520/DL1520L, 1/2/Math is provided
instead of 1/2/3/4/ in Tracemenu.)
Selects logic
Selects sequence
Selects action after determination
Enters the file name using the keyboard
Executing the determination function
22. Press the “EXEC” soft key. The name of the soft key will change to “ABORT”.
For the display which appears during measurement, refer to page 9-5.
Aborting the determination function
23. Press the “ABORT” soft key. The name of the soft key will change to “EXEC”.
9.2 Judging using Measured Values of Waveform Parameters
To Next Page
