YOKOGAWA MX100 User Manual

4-25
IM MX100-01E
Specification
3
2
1
4
5
Index

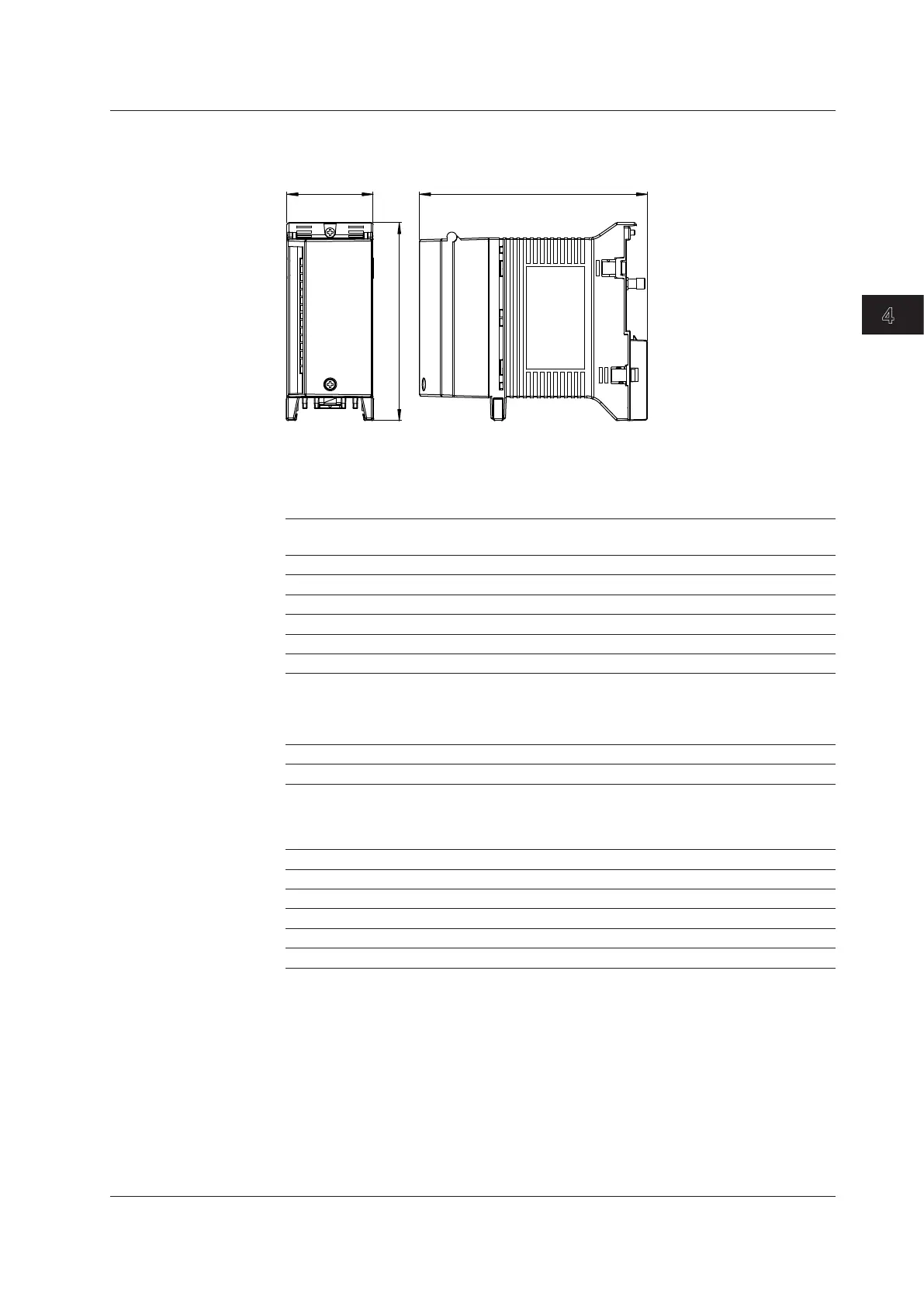

External Dimensions
Unit: mm
57
131
150.8
Ifnotspecified,thetoleranceis±3%.However,incasesoflessthan10mm,the
toleranceis±0.3mm.
Setting Value of Span and Preset, and Specified Value of Command Output
PWM output setting value Command output specified value
span and preset value (count)
0.000% 0
20.000% 20000
40.000% 40000
60.000% 60000
80.000% 80000 
100.000% 100000
Output Span Setting
Span setting data when setting transmission output
Target output[%] 0.000 50.000 100.000
PC data* 0 50000 100000
* PC data refers to internal data between the PC and the MX100 main unit.
Handling Abnormal Data
Types of Abnormal Data Output Values
Abnormal data upon startup Preset value or previously held value can be selected
Data upon error occurrence Preset value or previously held value can be selected
When input channels differ Preset value or previously held value can be selected
+OVER Duty100.000%output
-OVER Duty0%output 
±OVERdetermination
 Forcommandoutput,±OVERdeterminationisperformedonthePC,andifthelimit
value is exceeded, it is clipped at that limit value. For retransmission output, OVER is
determined by the MX100 main unit.
±OVERconditions
• Whendutyexceeds0.000-100.000%
• Whentheinputchannelis±OVERinthecaseoftransmissionoutput
4.10 8-CH, Medium-Speed PWM Output Module Specificaions
