YOKOGAWA MX100 User Manual

4-21
IM MX100-01E
Specification
3
2
1
4
5
Index
4.8 10-CH, High-Speed Digital Input Module
Specifications
Style number: S1(-D05), S2(-D24)
Input type: -D05: contact (non-voltage contact, open collector), and LEVEL
(5-V logic)
-DI24: LEVEL (24 V logic)
Number of inputs: 10
Inputformat: -D05:Pull-upatapproximately5V/approximately5kΩ,no
insulation between channels
-D24: No isolation between channels:
Measurement interval: Select 10 ms, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s,
20 s, 30 s, or 60 s
Filter: Measurement interval of 5 s or less: Uses the widest ON/OFF
widthduringthedetectionperiod(approximately75%to90%of
the measurement interval).
Measurement interval of 5 s or more: Uses the widest ON/OFF
width during approximately 4.5 s
Minimum detection pulse width: Twice the sampling interval or more
Input threshold level: -D05:
Contact (non-voltage contact, open collector):
  ONat100ΩorlessandOFFat100kΩormore
LEVEL (5-V logic): OFF at 1 V or less and ON at 3 V or more
-D24:
LEVEL (24 V logic): OFF at 6 V or less and ON at 16 V or more
Hysteresis width: -D05: Approximately 0.1 V
-D24: Approximately 1.5 V
Contact/transistor rating:
Contact with a rating of 15 VDC or greater and 30 mA or greater
Transistor with a rating of Vce > 15 Vdc and Ic > 30 mA
Maximuminputvoltage: -D05:±10V
  -D24:Approx.±50V
Insulationresistance: 20MΩormore(500VDC)betweentheinputandground
Withstand voltage: 2300 VAC (50/60 Hz) for one minute between input and earth
Maximum common-mode voltage: 250 VAC rms (50/60 Hz)
Terminal type: Clamp
Power consumption: Approximately 1.5 W
Applicable wire size: 0.14 to 1.5 mm
2
(AWG26 to 16)
External dimensions: Approx. 57 (W) × 131 (H) × 151 (D) mm (including the terminal cover)
Weight: Appro
ximately 0.5 kg

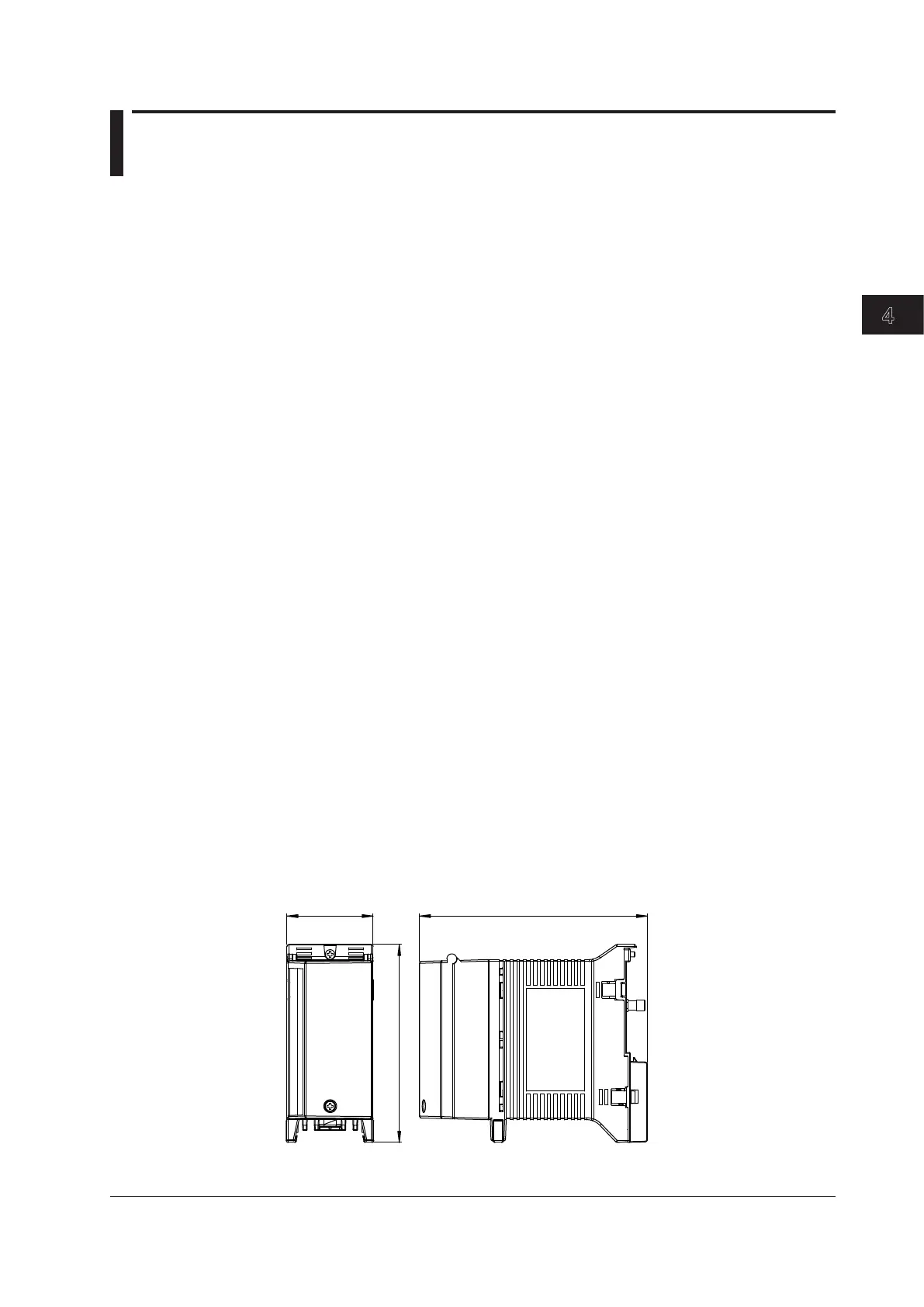

External Dimensions
Unit: mm
57
131
150.8
Ifnotspecified,thetoleranceis±3%.However,incasesoflessthan10mm,the
toleranceis±0.3mm.
