1.1 Overview of the MX100 Data Acquisition Unit

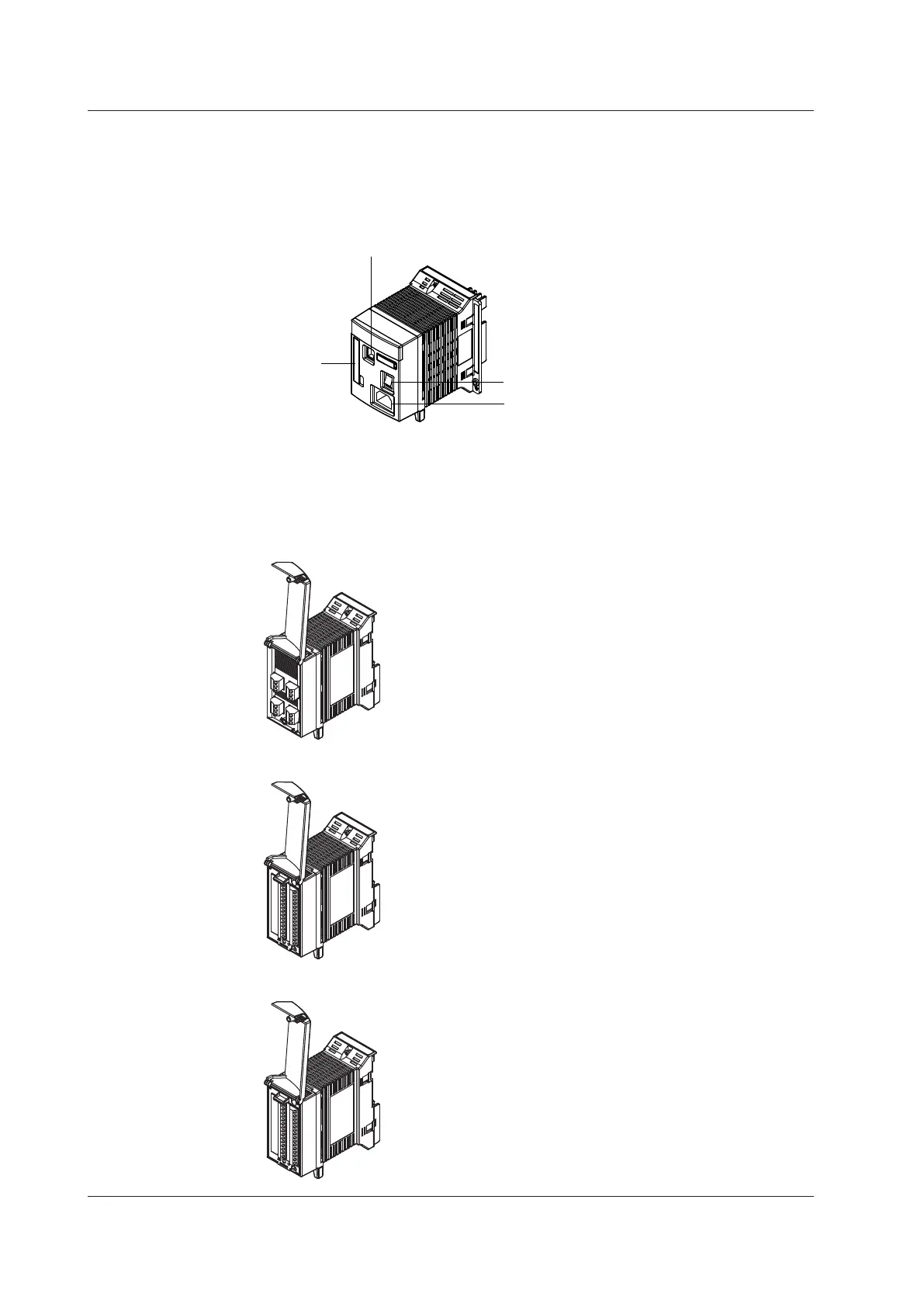

Main Module
The main module is equipped with a power supply connector, a power switch, an
Ethernet port, a CF card slot, and other parts. It controls the power supply to and the
control of each input/output module, communications with a PC, data storage to the CF
card when communication is disconnected, and other functions.
Ethernet port
Power switch
CF card
slot
Power connector
Input/Output Modules
The following eleven types of modules are available. A separate screw terminal board (sold
separately) is available for the 10-CH, Medium-Speed Universal Input Module and the
10-CH, High-Speed Digital Input Module.
4-CH, High-Speed Universal Input Module (MX110-UNV-H04)
• Minimum measurement interval: 10 ms (except 50 ms for
temperature measurement
• Maximum number of inputs: 4 inputs
• Input types: DC voltage, TC, 3-wire RTD, and DI (LEVEL,
contact)
10-CH, Medium-Speed Universal Input Module (MX110-UNV-M10)
• Minimum measurement interval: 100 ms
• Maximum number of inputs: 10 inputs
• Input types: DC voltage, TC, 3-wire RTD, and DI (LEVEL,
contact)
6-CH, Medium-Speed Four-Wire RTD Resistance Input Module (MX110-V4R-M06)
• Minimum measurement interval: 100 ms
• Maximum number of inputs: 6 inputs
• Input types: DC voltage, 4-wire RTD, 4-wire resistance,
and DI (LEVEL, contact)
